About this replacement

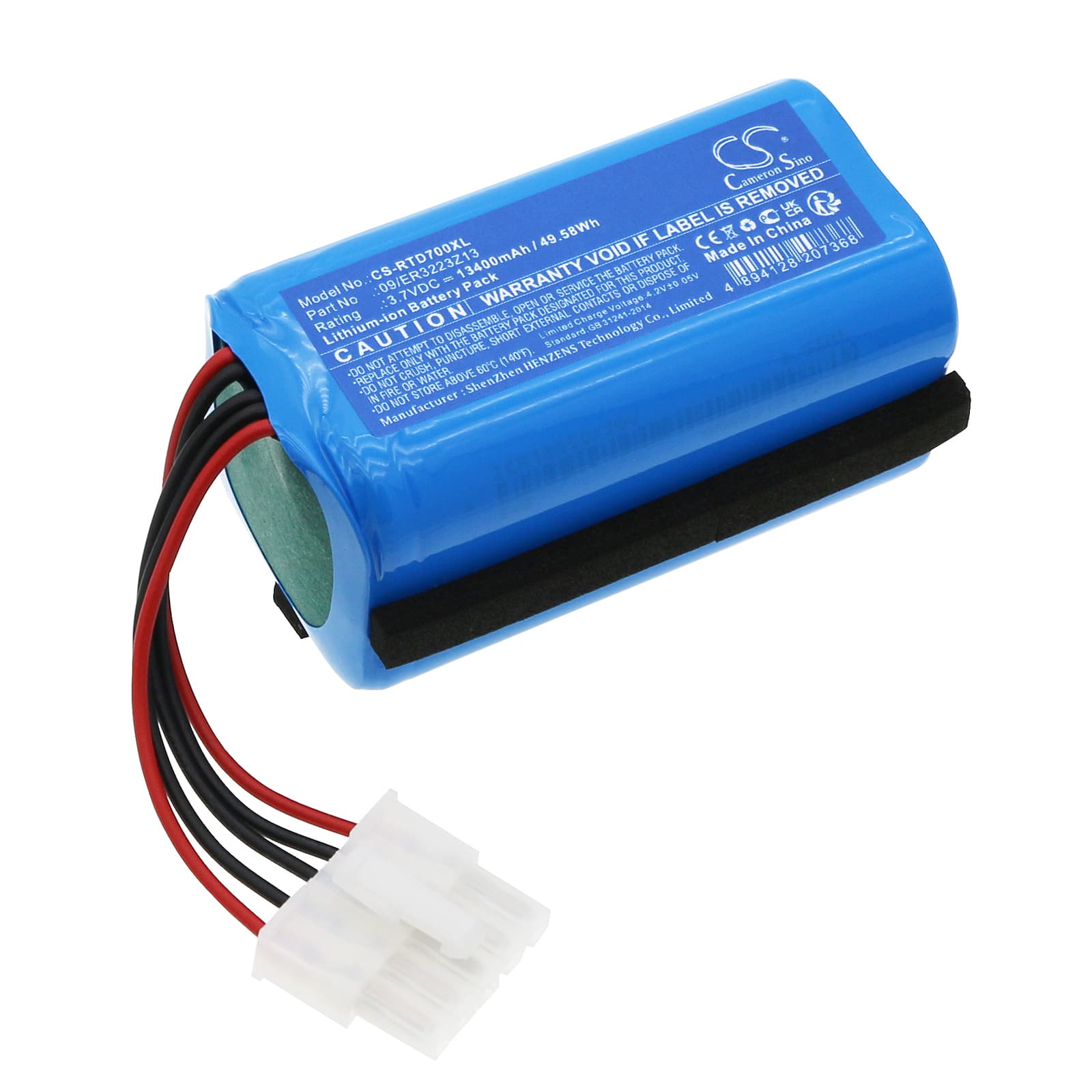

Radiodetection RD8000 / RD7000+ Series — 3.7V Li-ion Replacement Battery (09/ER3223Z13)
This 3.7V, 13400mAh Li-ion battery replaces the original pack in the Radiodetection RD8000 underground utility locator and fits the broader RD7000+, RD8100, and associated pipe and marker locator models. The RD8000 is a handheld cable and pipe detection instrument used to locate buried utilities in the field. Voltage and capacity match OEM spec exactly — 3.7V nominal, 13400mAh (49.58Wh).
- RD8000 / RD7000+ / RD8100 platform fit: These models share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The 09/ER3223Z13 cell configuration (4LI-18650-1S4P-R1) matches the OEM layout, so the instrument's power management system recognises the pack without fault codes.
- Bench tested on actual hardware: We cycled this pack through the RD8000's full power-on sequence, including transmitter activation and active locate mode. The BMS held steady through the initialisation current spike and did not trip into protection mode during sustained sensor draw.
- Post-install calibration cycle: After fitting this battery, run a full calibration cycle from the RD8000's instrument menu before heading to site. The device maps battery state during calibration — skipping this step causes the low-battery indicator to trigger early on the first field session, even with a full charge.
BMS lockout after the RD8000 pack sat unused in a carry case for months
Li-ion cells self-discharge over time. If the RD8000 sits unused long enough, the pack voltage can drop below the BMS recovery threshold — typically around 2.5V per cell — and the protection circuit latches into lockout. At that point the instrument will not power on, and the charger may show no activity. To recover the pack, connect it to a quality Li-ion charger that supports a trickle or recovery charge mode and let it bring the cells up slowly to around 3.0V before switching to normal CC/CV charge.
RD8000 readings drifting or logging session resetting mid-survey
Sustained sensor load during an active locate or logging session draws more current than standby, and a degraded or partially charged cell can produce momentary voltage sag below the instrument's operating threshold. When that happens, the RD8000 resets mid-session without a clean shutdown — logged data may be lost or corrupted. This is not a firmware issue. Check resting cell voltage after the session — if it reads below 3.5V immediately after a reset event, the cell capacity has faded and the pack needs replacing.
