About this replacement

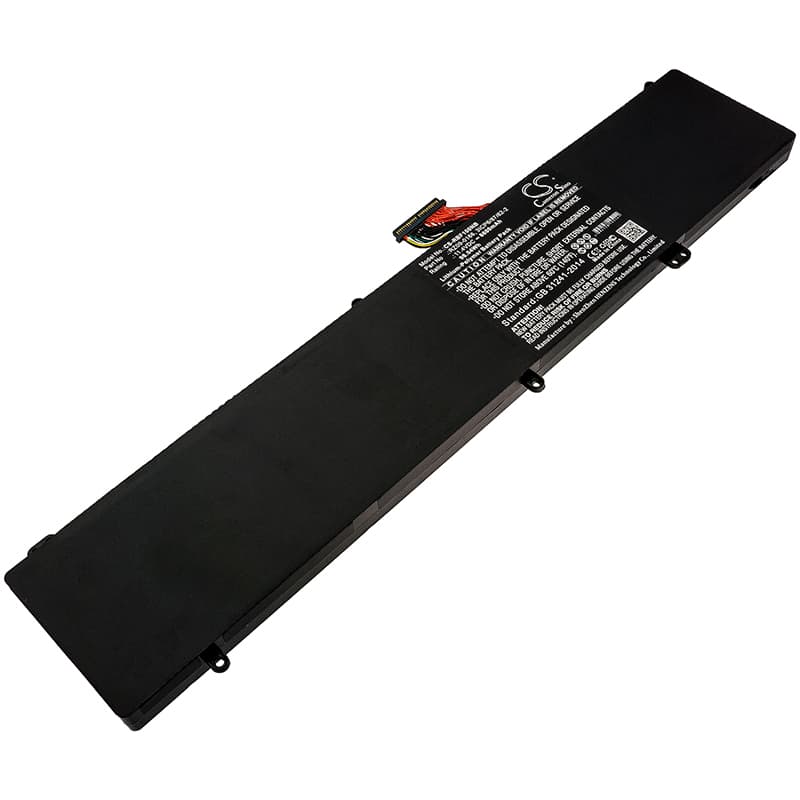

Razer Blade F1 / Pro 4K — 11.4V Li-Polymer Replacement Battery (RZ09-0166)
This is an 11.4V, 8600mAh Li-Polymer battery for the Razer Blade F1 gaming laptop (RZ09-0166 series). It fits the RZ09-01663E53-R3G1, RZ09-01662E54-R3U1, and Pro 4K variants that share the same cell footprint and connector pinout. Swap it in when the original cell no longer holds charge or the laptop won't run unplugged.
- Blade F1 and Pro 4K platform fit: These models share the same 11.4V three-cell series configuration, connector housing, and BMS communication line. The cell dimensions — 359.50 × 78.72 × 13.60mm — match the chassis bay without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a Blade F1 unit. The BMS handshake completed on first connect, charge current stepped down correctly at 80% and 95%, and the protection circuit tripped cleanly at low-voltage cutoff without hard shutdown.
- Post-swap BIOS recalibration on the Blade F1: After installing, run one full discharge to hibernate cutoff, then charge uninterrupted to 100%. The Blade F1 BIOS stores cycle data from the old cell in firmware — skipping this step leaves the health indicator reporting inaccurate figures for weeks.
Why the Blade F1 shuts down at 20–30% after a battery swap
Under full CPU and display load, the Blade F1 draws significantly more current than at idle. A new cell that hasn't been calibrated hits a voltage cliff — where cell voltage drops faster than the fuel gauge IC can track — and the BMS reads an undervoltage condition before the displayed percentage reaches zero. This is a calibration gap, not a faulty cell. Run two full discharge-to-cutoff cycles and the fuel gauge IC will map the new cell's discharge curve accurately.
BIOS showing battery health as "poor" or "unknown" immediately after install
The Razer Blade F1 BIOS reads health data from EEPROM registers carried over from the previous cell — it doesn't reset that data when a new battery connects. The system flags a mismatch between the stored cycle count and the new cell's reported state. This clears after the BIOS completes one full battery learn cycle: discharge fully until the laptop hibernates, then charge to 100% without interruption. After that cycle, the health status reports correctly.
