About this replacement

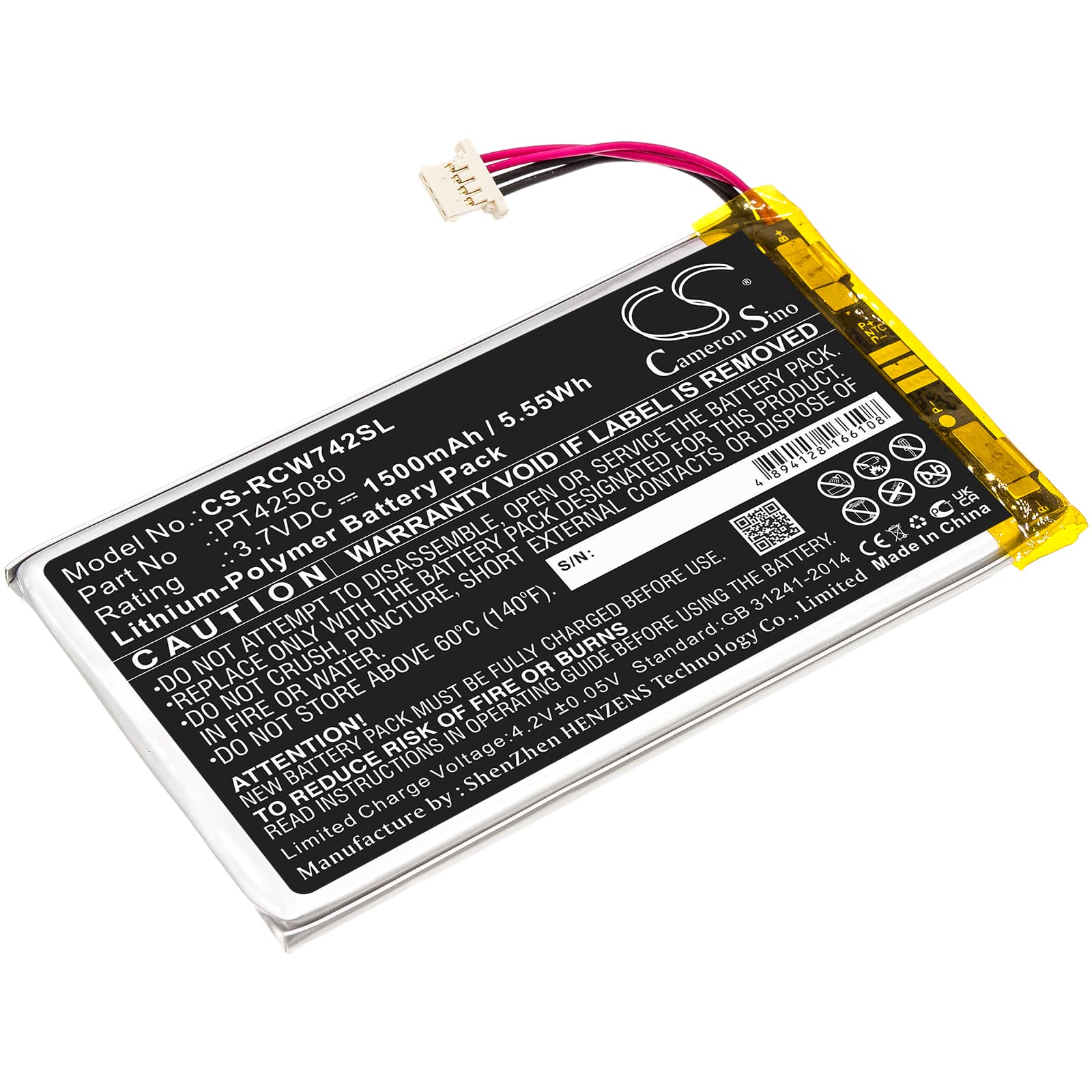

RCA Voyager II 7" — 3.7V Li-Polymer Replacement Battery (PT425080)
This 3.7V, 1500mAh Li-Polymer battery replaces part number PT425080 in the RCA Voyager II 7" tablet. It fits the T6873w42 and RCT6773W22 alongside other Voyager II variants. Swap it in when the original cell no longer holds a charge through normal browsing or streaming sessions.
- Voyager II variant coverage: The T6873w42, RCT6773W22, and related Voyager II boards share the same 3.7V single-cell architecture and PT425080 connector layout, so one cell fits across the lineup without any wiring modification.
- Bench tested on actual hardware: We cycled this cell through the Voyager II charge IC and confirmed the BMS accepted the full charge handshake without fault flags. Voltage at full charge measured at the expected 4.2V terminal voltage.
- Fuel gauge recalibration after swap: After installation, run one full discharge to automatic shutoff, then charge uninterrupted to 100%. This resets the fuel gauge IC against the new cell's capacity curve and clears the inaccurate percentage readings that commonly appear on the first boot after a battery swap.
Voyager II shutting down at 15–25% remaining after battery replacement
The Voyager II's charge IC maps voltage curves from the previous cell, not the new one. When display backlight and Wi-Fi run simultaneously, combined load draws enough current to cause a sharp voltage dip that the old calibration reads as critically low. The tablet's protection circuit triggers a shutdown well above true empty. Run one full discharge-to-shutoff cycle, then a full uninterrupted charge — after that cycle, the fuel gauge re-maps to the PT425080 cell's actual voltage curve and the early shutdowns stop.
Battery percentage dropping faster than expected from 100%
Fast percentage drops from a full charge are a fuel gauge drift symptom, not a cell defect. The Android fuel gauge IC on the Voyager II holds calibration data from the old battery and misreads the new cell's discharge curve — it jumps percentage points early in the discharge cycle. One complete cycle from 100% charge down to automatic shutoff, followed by an uninterrupted full charge, resyncs the IC to the PT425080's actual 1500mAh capacity. After that single cycle, percentage reporting stabilises across the discharge range.
