About this replacement

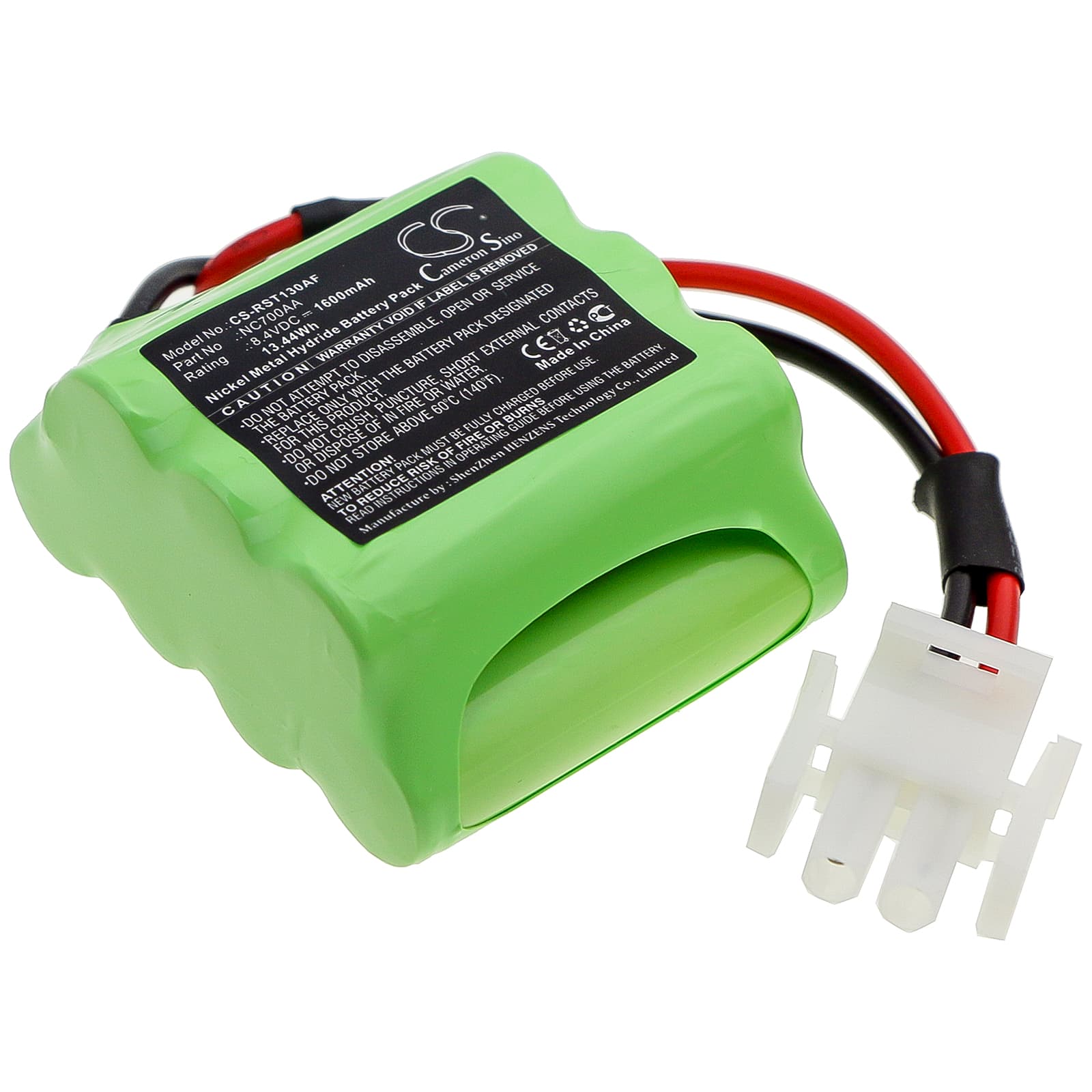

Record STA13 / STA14 / PS131 — 8.4V Ni-MH Replacement Battery (NC700AA)
This is an 8.4V, 1600mAh Ni-MH battery for Record automatic door operators, specifically the STA13, STA14, and PS131 series. It sits in the backup circuit and powers the door mechanism when mains supply drops. Capacity is 1600mAh — 13.44Wh total energy.
- STA13, STA14, and PS131 compatibility: These three operators share the same backup battery bay, connector pinout, and 8.4V charging rail. The NC700AA part number covers all three — no wiring changes needed.
- Bench tested on actual hardware: We cycled this battery through charge and discharge on the backup circuit. The BMS accepted charge correctly and held voltage above the low-battery cutoff through a full simulated door cycle under load.
- Post-installation test requirement: After fitting the new battery, manually trigger a power-fail test during a quiet period. Backup batteries in door operators must prove they can complete a full open-and-close cycle under real motor load before you rely on them in operation.
Door controller losing stored programming after a power outage
The STA13 and STA14 store door parameters — open speed, hold-open time, obstacle sensitivity — in volatile RAM. That RAM is kept alive by the backup battery when mains power cuts. If the battery is depleted below its retention threshold, even a brief outage wipes the controller's settings. You come back to a door that either won't move or behaves erratically. Replace the battery and allow a full 24-hour charge before the next power interruption to restore programming protection.
Battery backup not activating when mains power fails
If the door goes dead during a mains failure instead of switching to battery, the backup circuit is not seeing sufficient voltage from the NC700AA. Ni-MH cells self-discharge over time — a battery left uncharged for several months can drop below the activation threshold of the backup relay. Check terminal voltage with a multimeter; a healthy charged NC700AA should read at least 8.0V at rest. If it reads below 7.5V, the battery won't trigger the backup circuit and must be replaced.
