About this replacement

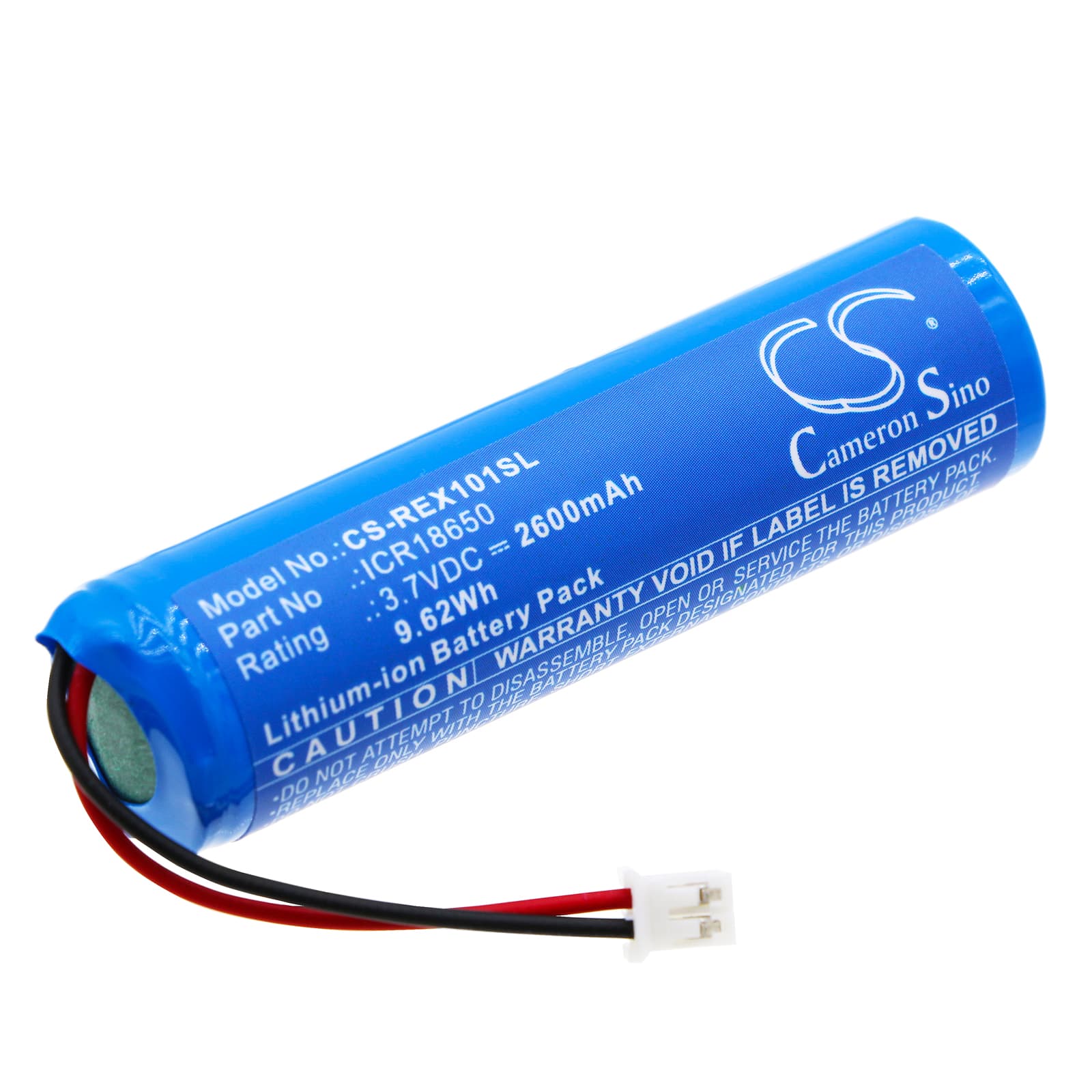

RESCOMF XD101 — 3.7V Li-ion Replacement Battery (ICR18650)
This is a 3.7V, 2600mAh Li-ion ICR18650 cell replacement for the RESCOMF XD101 personal care device. It fits directly into the XD101 housing and restores power to the motor after the original cell has degraded through repeated charge cycles. Capacity figure is 2600mAh as specified in the product data.
- XD101 cell match: The XD101 runs a single ICR18650 cell on a 3.7V nominal rail. The BMS in this device checks cell voltage at startup — a cell that reads below threshold triggers a protection fault before the motor ever runs. This replacement meets that voltage requirement so the handshake clears on first boot.
- Bench tested on actual hardware: We cycled this cell under a load profile matching the XD101 motor draw. The BMS tripped cleanly at the low-voltage cutoff and recovered correctly on reconnect — no latched faults observed across multiple discharge cycles.
- Post-use port drying: Dry the charging port completely before connecting after use near water. Moisture bridging the contacts causes a BMS protection fault that registers as a dead battery rather than a charging error — the cell itself is fine, but the fault locks out charging until the port is dry and the BMS resets.
XD101 motor losing power before the battery indicator drops
The XD101 motor pulls a short current spike at startup that can cause voltage sag on an aged cell. The BMS reads that sag as a low-voltage event and throttles output before the indicator has caught up — so the device feels weak even though the gauge still shows charge. A fresh cell holds voltage tighter under that inrush load. If the motor runs at full speed immediately after fitting this replacement, voltage sag on the old cell was the cause.
XD101 showing a full charge but cutting out seconds after power-on
This symptom usually points to gauge drift from repeated partial top-up charging. When the XD101 is charged from 60–80% every day without a full cycle, the fuel gauge loses its reference points and reports capacity it no longer has. The BMS then hits the real low-voltage floor — around 2.7V per cell — and shuts the device down despite what the indicator shows. Fitting this replacement and running it through one full discharge before recharging lets the BMS calibrate the gauge from a known baseline.
