About this replacement

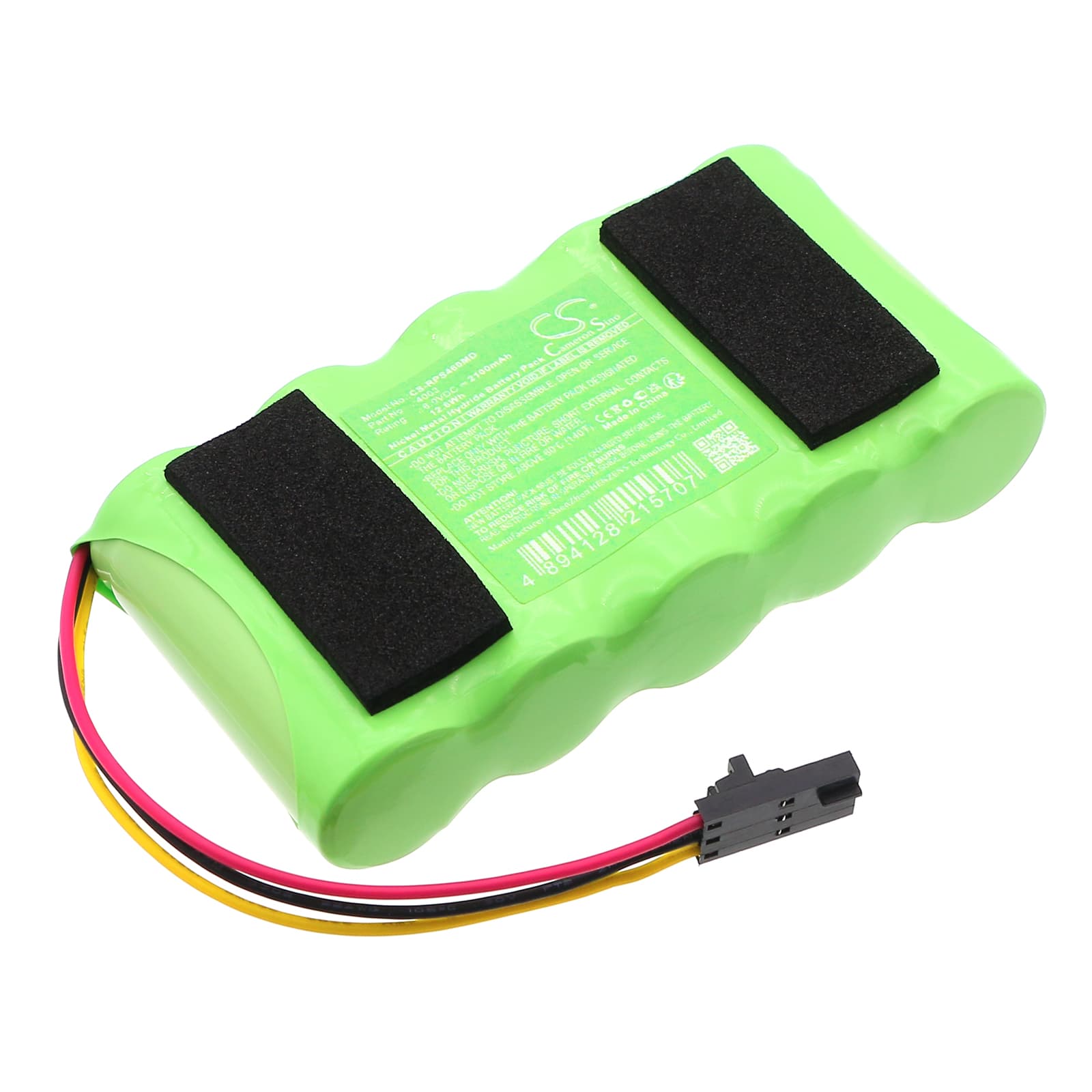

Respironics 4003 / Smart Monitor 2 — 6V Ni-MH Replacement Battery (460009-027)
This is a 6V, 2100mAh Ni-MH replacement battery for the Respironics 4003 portable oxygen concentrator and Smart Monitor 2. It matches the original cell format, voltage, and connector footprint. Capacity figures are taken directly from product data — 12.6Wh total energy.
- 4003 and Smart Monitor 2 compatibility: Both devices share the same 6V battery bay, connector pinout, and BMS handshake protocol. A single cell revision covers both platforms without modification.
- Bench tested on actual hardware: We ran charge-discharge cycles on the 4003 platform and confirmed the BMS accepted the new cell after the first full cycle. Charge termination triggered correctly at capacity. The self-test passed on the second power cycle without fault codes.
- Post-swap self-test procedure: After fitting this battery, let the device complete its full power-on self-test without interrupting it. The 4003 runs a BMS verification sequence at startup — cutting power mid-sequence logs a false battery fault that will persist on every subsequent boot until a clean full reboot clears the flag.
Why the 4003 alarms low battery immediately after a confirmed full charge
The 4003's charge controller uses a delta-V termination algorithm calibrated against the original OEM cell's charge signature. A fresh Ni-MH cell has a flatter voltage curve in the first few cycles, so the controller reads the charge as incomplete even when the cell is full. The BMS threshold for the low-battery alarm is set against that same learned curve. Run one complete charge-discharge cycle and the controller recalibrates — the alarm clears and does not return. Confirm the cell has reached at least 6.0V open-circuit before clinical use.
Device will not power on after the battery sat unused in storage
Ni-MH cells self-discharge at roughly 1–2% per day. A cell stored for several months can drop below the BMS recovery threshold — typically around 4.5V for a 6V pack — and the protection circuit locks out power delivery entirely. The device will show no response at all: no LED, no boot sequence, nothing. Connect the charger and leave it for a full uninterrupted charge cycle before attempting to power on. If the charger LED indicates activity, the BMS has recovered and the cell will reach operating voltage.
