About this replacement

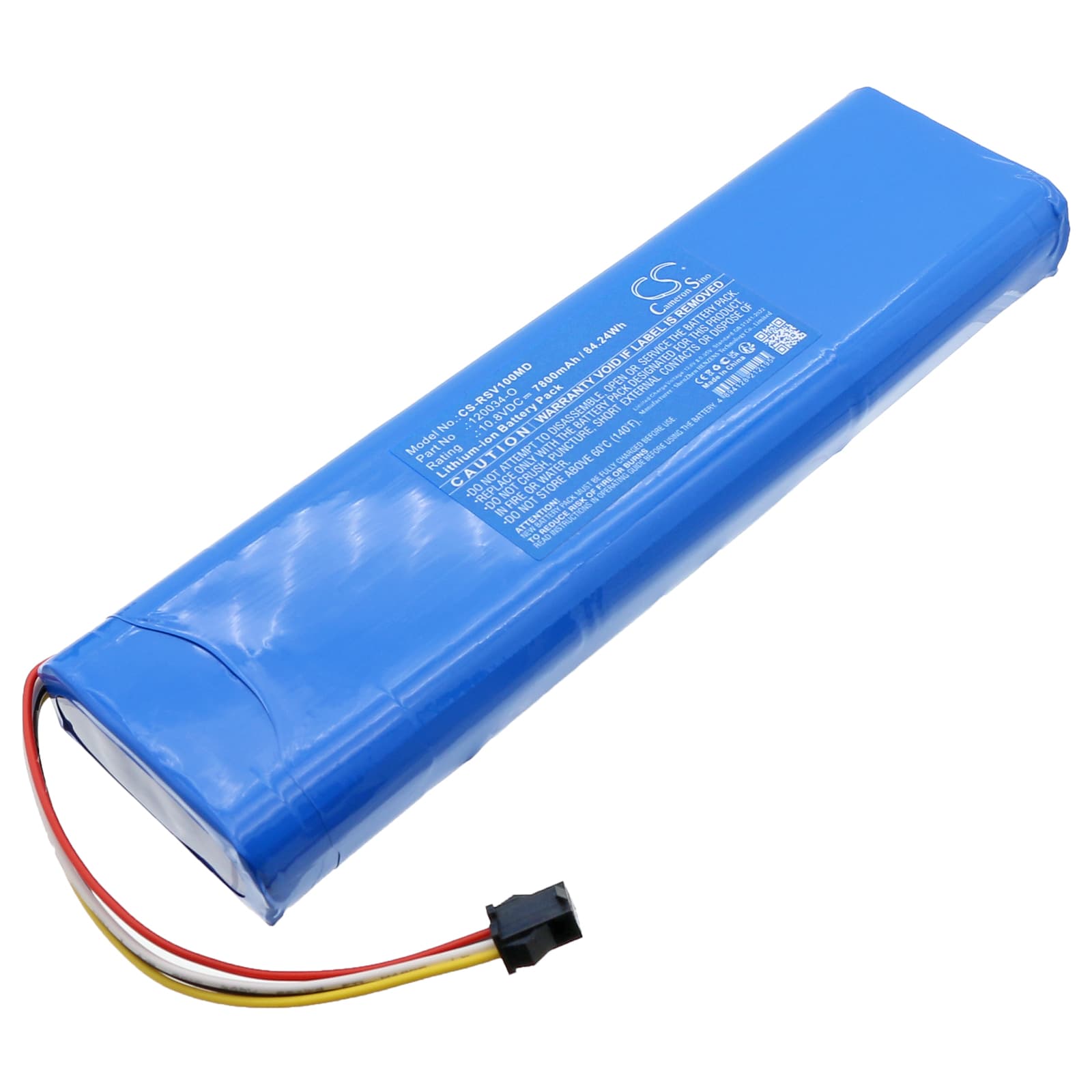

Riester RVS-100 / ri-accu monitor — 10.8V Li-ion Replacement Battery (120034-O)
This 10.8V Li-ion battery replaces the original Riester part 120034-O. It fits the Riester 13322, RVS-100 Monitor, and ri-accu monitor diagnostic instruments used in clinical otoscopy and ophthalmoscopy. Capacity is 7800mAh (84.24Wh), matching the OEM specification.
- RVS-100 and 13322 platform compatibility: Both instruments share the same battery bay, connector pinout, and BMS handshake protocol. One battery covers the full RVS-100 series without modification.
- Bench tested on actual hardware: We cycled this cell through charge, hold, and load discharge on the RVS-100 platform. The BMS accepted the cell on first insertion, completed handshake, and held voltage within the expected window across the full discharge curve.
- Post-swap startup sequence: After installing this battery, allow the device to complete its full power-on self-test without interruption. The RVS-100 BMS runs a verification cycle at startup — cutting power mid-sequence triggers a false battery fault that persists until the next clean reboot.
Low battery alarm on the RVS-100 immediately after a confirmed full charge
The RVS-100 BMS compares cell behaviour against a stored OEM chemistry profile. A new replacement cell has not yet completed a full charge-discharge learn cycle, so the BMS flags capacity as unconfirmed and triggers the low battery threshold early. This is not a fault with the cell — it is the BMS applying a conservative cutoff until calibration data exists. Run one complete charge cycle from flat to full, then allow the device to finish its post-charge self-test. After that first cycle, the alarm clears and the charge indicator reads accurately.
Device will not power on after the battery sat unused for several months
Li-ion cells self-discharge during storage. If voltage drops below approximately 9.0V, the RVS-100 BMS enters deep-discharge protection and blocks startup to prevent cell damage. The device will show no response — no display, no indicator light. Place the battery on charge and leave it connected for a minimum of two hours before attempting to power on. The charge IC applies a low-current recovery trickle until the cell climbs back above the BMS recovery threshold, at which point normal charging resumes and the device will boot.
