About this replacement

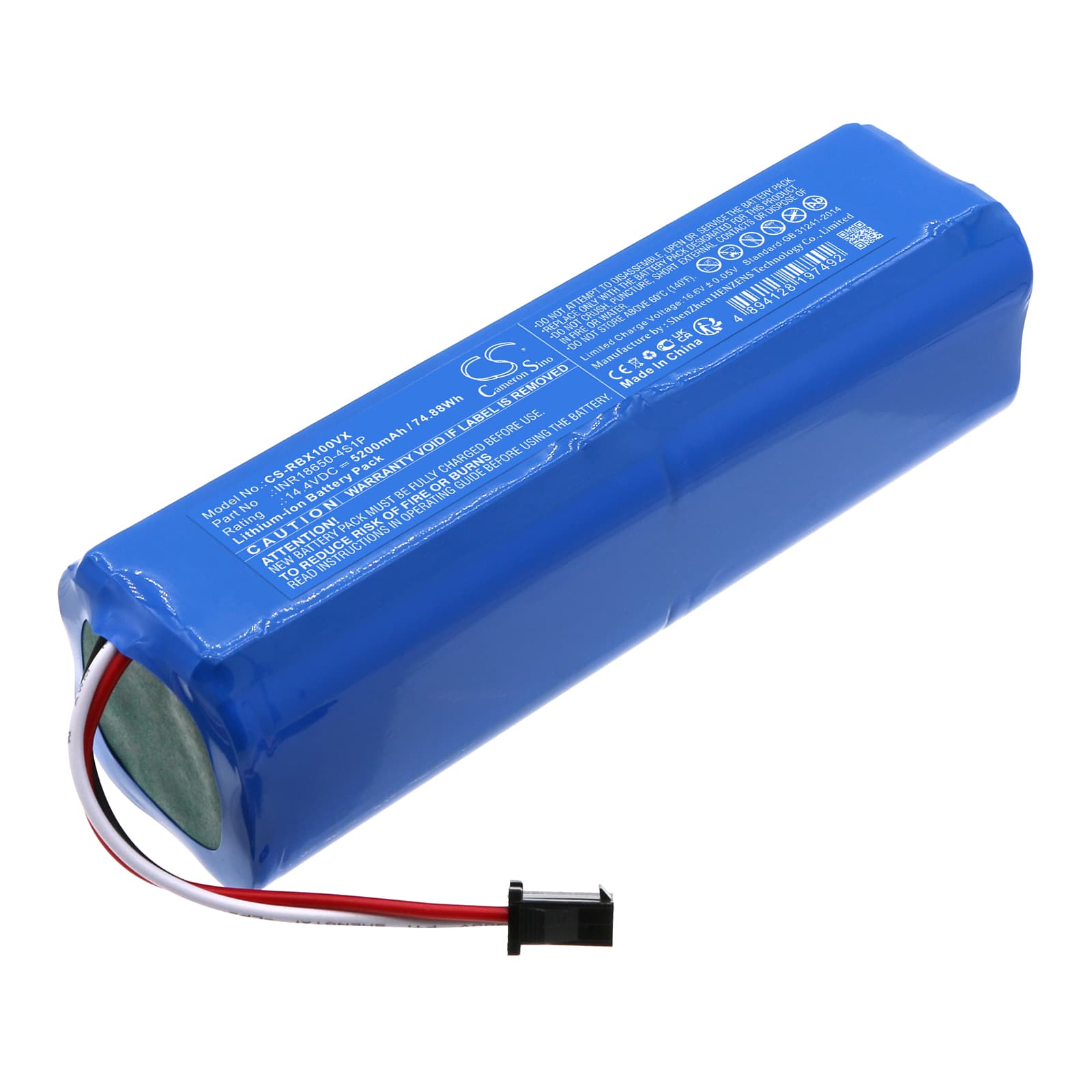

RoboJet X-level / Force — 14.4V Li-ion Replacement Battery (INR18650-4S1P)
This is a 14.4V, 5200mAh Li-ion replacement battery pack for the RoboJet X-level and Force robotic vacuum cleaners. It replaces the original INR18650-4S1P pack that powers the motor, brushroll, and navigation systems. Capacity figure is taken from the product data — 74.88Wh total energy.
- X-level and Force compatibility: Both models run the same 14.4V motor rail and use the identical INR18650-4S1P 4S1P cell configuration. The connector pinout and BMS communication protocol match across both platforms, so one pack covers either unit without modification.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on a RoboJet X-level unit. The BMS engaged correctly at low-voltage cutoff and the motor controller received a clean handshake on startup — no fault codes triggered during our cycle testing.
- Dock charging habit on robotic vacuums: Do not leave the RoboJet sitting on its charging dock permanently. Robotic vacuums parked continuously on dock develop capacity fade faster than units charged only when depleted. Charge to full, then lift it off the dock.
Cordless vacuum losing suction before the battery indicator reaches low
This happens when the motor draws more current than rated — usually from a partially blocked filter or restricted airflow path. Under sustained high draw, the BMS reads cell voltage sag as a low-battery condition and throttles output before the indicator catches up. The vacuum feels weak even though the display shows charge remaining. Clean the filter and check the brushroll for obstructions before assuming the battery is at fault.
Motor cuts out mid-clean then recovers after a few seconds
This is a BMS overcurrent trip, not a dead battery. When suction is restricted — clogged filter, tangled brushroll, or carpet fibres blocking the intake — the motor current spikes beyond the pack's rated threshold. The BMS cuts power to protect the cells, then resets once current drops. Fix the restriction first. If the cutout persists on a clear filter, measure resting voltage at the pack terminals — a healthy 14.4V pack should read between 16.4V and 16.8V fully charged.
