About this replacement

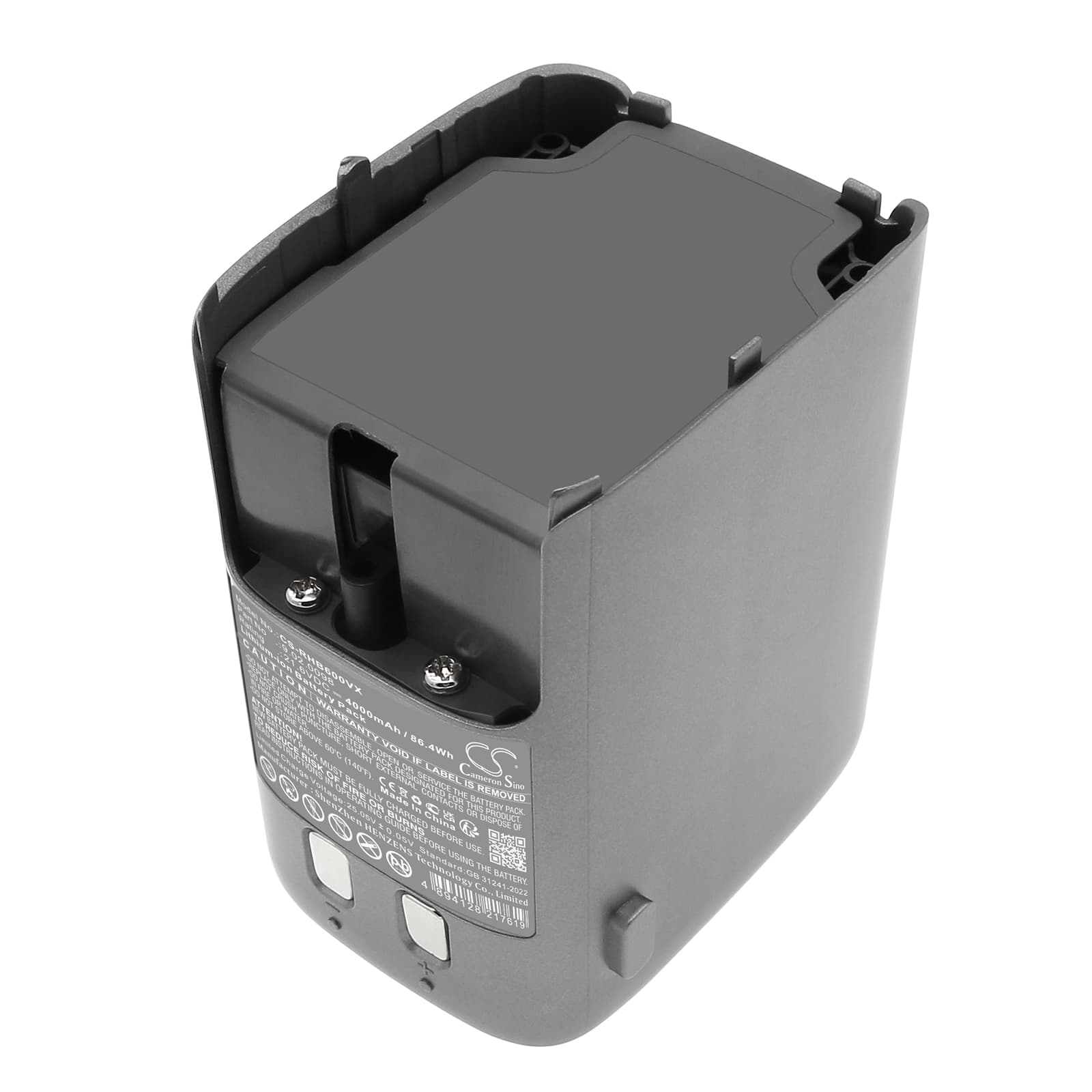

Roborock H6 Series — 21.6V Li-ion Replacement Battery (9.02.0098)
This is a 21.6V, 4000mAh (86.4Wh) Li-ion battery for the Roborock H6 handheld cordless vacuum cleaner, including H6M1A and R200001 variants. It replaces OEM part number 9.02.0098 directly. When the original cell degrades and suction weakens early in a cleaning session, this swap restores full motor voltage.
- H6 and H6M1A compatibility: These variants share the same 21.6V battery platform, connector pinout, and BMS handshake protocol. One replacement cell covers all units in this line without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the H6 platform. The BMS communicated correctly with the charger, accepted a full charge without fault flags, and delivered consistent voltage under motor load across all suction settings.
- Dock charging habit on the H6: Do not leave the H6 sitting on the charging dock permanently. Continuous trickle charge on Li-ion cells causes capacity fade significantly faster than charging only when the battery is depleted. Charge to full, then remove the unit from the dock.
Cordless vacuum losing suction before the battery indicator reaches low
The H6 motor draws higher current when airflow is restricted — a partially blocked filter forces the motor to work harder at the same fan speed. As current draw rises, voltage sags under load even though the battery still shows charge remaining. The suction drop happens because the cell can no longer hold the motor at full voltage under that elevated load, not because capacity is gone. Clean the filter first; if suction restores immediately, the battery is not the issue.
Motor cuts out mid-session and then recovers after a short pause
This is a BMS overcurrent trip, not a dead battery. When the H6 motor encounters sustained restricted airflow — from a blocked nozzle or a clogged filter — current spikes beyond the BMS protection threshold and the circuit opens. The battery appears dead for 15–30 seconds, then recovers once the BMS cools and resets. Clear the blockage, then power the unit back on. If the trip repeats on unrestricted airflow, the original cell's internal resistance has risen enough to cause voltage collapse on motor start — a new cell at 21.6V nominal resolves that.
