About this replacement

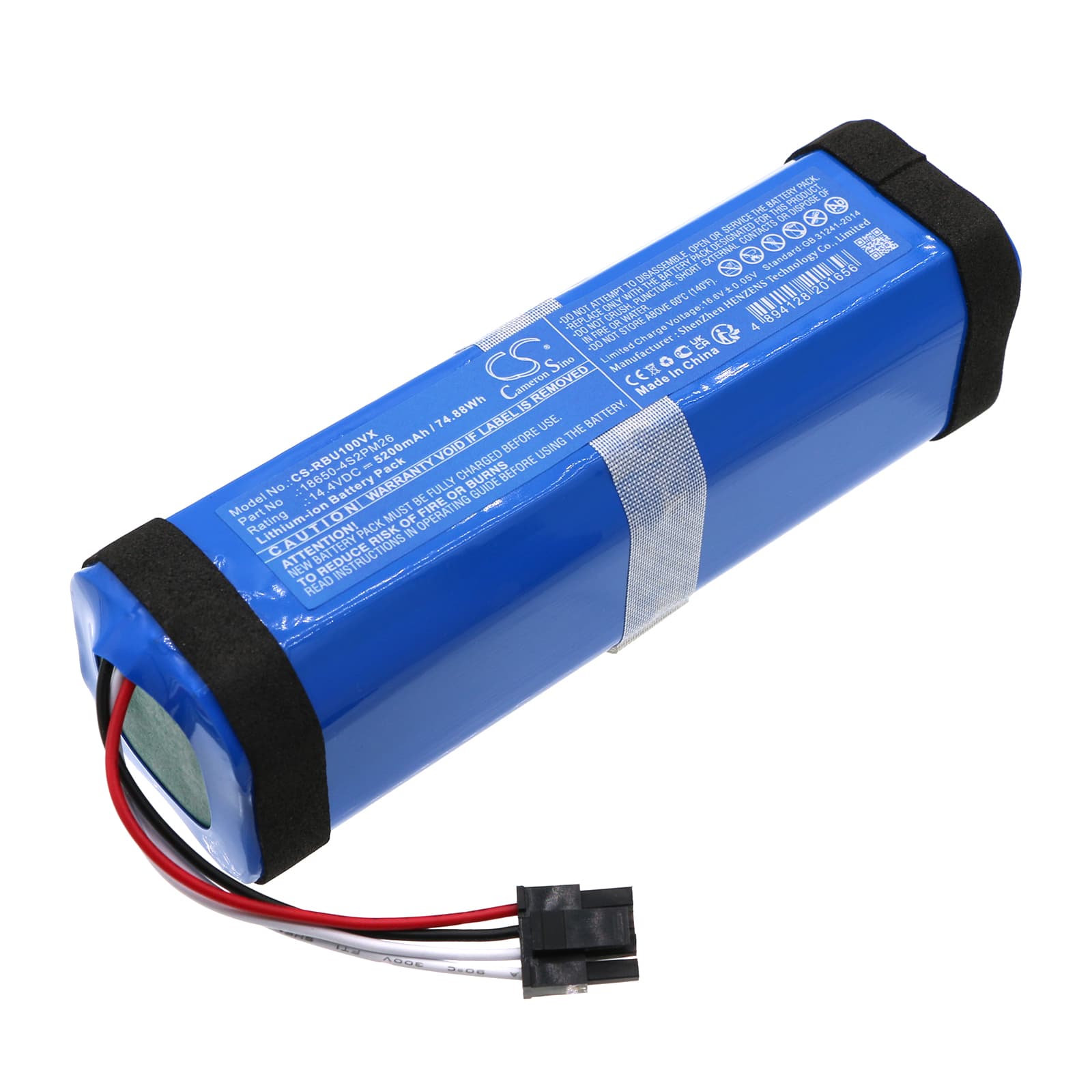

RobZone Duoro ULTIMATE-P — 14.4V Li-ion Replacement Battery (18650-4S2PM26)
This is a 14.4V, 5200mAh Li-ion battery pack for the RobZone Duoro ULTIMATE-P robotic vacuum cleaner. It also fits the Duoro X-Max Profi, Duoro X-Max Homevac, and Duoro ULTIMATE Profi, among other models in the Duoro range. OEM part number 18650-4S2PM26 confirms fit across the compatible lineup.
- Duoro range compatibility: These models share the same 14.4V cell architecture, BMS handshake protocol, and connector format. A single battery pack covers the full compatible set without wiring changes or adapter hacks.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on a Duoro ULTIMATE-P unit. The BMS communicated correctly with the charger and the vacuum's motor controller — no false low-battery trips and no charge interrupts under normal load.
- Dock charging habit for this vacuum: Do not leave the Duoro sitting on the charging dock continuously. Robotic vacuums on permanent dock charge accumulate trickle-charge cycles that degrade cell capacity far faster than standard use. Charge to full, then remove the unit from the dock.
Cordless vacuum losing suction before the battery indicator reaches low
This is a voltage sag issue, not a capacity issue. When the motor draws current against a blockage or a clogged filter, internal resistance in a degraded cell pack causes voltage to drop faster than the indicator circuit expects. The vacuum's suction weakens because the motor is not receiving its rated voltage, even though the battery still reports charge remaining. Replacing the cell pack restores the nominal 14.4V delivery the motor needs to hold suction through a full cleaning cycle.
Motor cuts out mid-clean and then recovers after a few seconds
This is a BMS overcurrent trip. When sustained suction restriction — typically a partially blocked filter or brush roll — forces the motor to pull above its rated current threshold, the battery management system cuts power to protect the cells. After a few seconds, the BMS resets and allows the motor to restart. Check and clear the filter first. If trips continue on an unblocked vacuum with the original battery, the cell pack's internal resistance has risen enough that even normal motor-start surge triggers the trip — a replacement pack at 14.4V resolves this.
