About this replacement

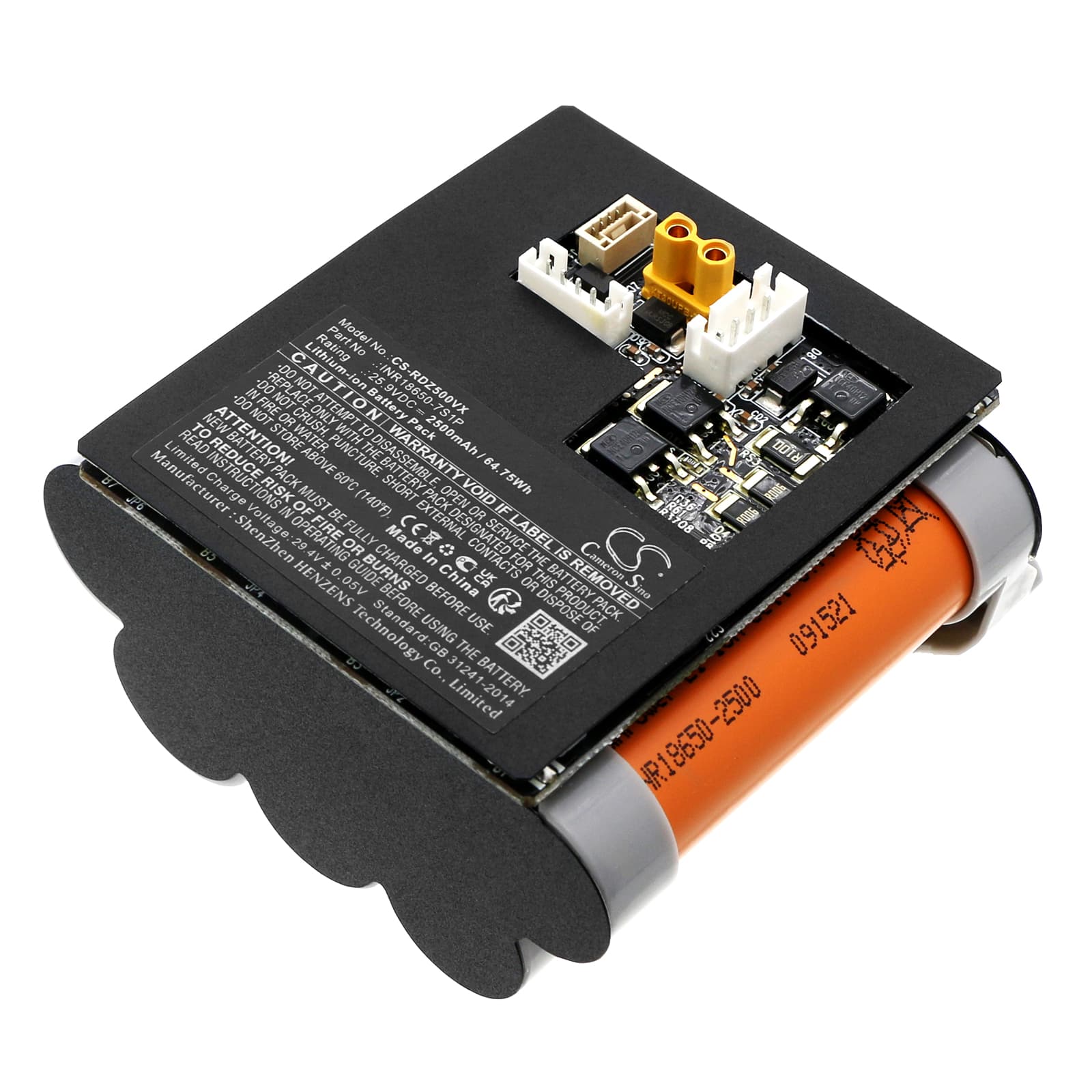

Roidmi RM50KC / Z1 Series — 25.9V Li-ion Replacement Battery (INR18650-7S1P)
This is a 25.9V, 2500mAh Li-ion battery pack for the Roidmi RM50KC, Z1, Z1 Air, and RM50D cordless stick vacuums. It slots into the same bay as the factory pack and runs through the same BMS handshake the charger expects. Capacity figure is from the product specification — 64.75Wh total.
- RM50KC / Z1 / Z1 Air / RM50D platform fit: These models share a 7S1P 18650 cell configuration on the same 25.9V nominal rail with a matched connector and BMS communication protocol — that is why one pack covers the group.
- Bench tested on actual hardware: We ran charge and discharge cycles on the Z1 platform, confirmed the BMS handshake completed cleanly, and verified the pack reached full cutoff voltage without triggering a fault code on the charger.
- Dock charging habit on the RM50KC: Do not leave the vacuum sitting on the charging dock permanently. Cordless stick vacuums on continuous dock charge develop capacity fade faster than units charged only when the pack is depleted. Charge to full, then remove from the dock.
Suction dropping before the battery indicator reaches low
The RM50KC motor draws significantly more current when airflow is restricted — a partially blocked filter pushes draw well above rated, and the BMS responds by reducing output voltage to protect the cells. The motor loses speed before the indicator registers a low charge state, so the vacuum feels weak while the display still shows plenty of power. This is voltage sag under load, not a faulty battery. Clean or replace the filter first, then retest — rated suction should return at a stable draw.
Motor cuts out mid-clean and then recovers after a few seconds
This pattern is a BMS overcurrent trip, not a dead cell. Sustained restricted airflow — a blocked nozzle, full dust bin, or clogged post-motor filter — forces the motor to pull current above the BMS threshold, and the pack shuts output off temporarily to prevent cell damage. Recovery happens once current demand drops. Clear the blockage, empty the bin, and check all filter stages before concluding the battery is at fault. If the trip repeats on an unobstructed machine, measure pack voltage under load — it should hold above 22V at the output contacts.
