About this replacement

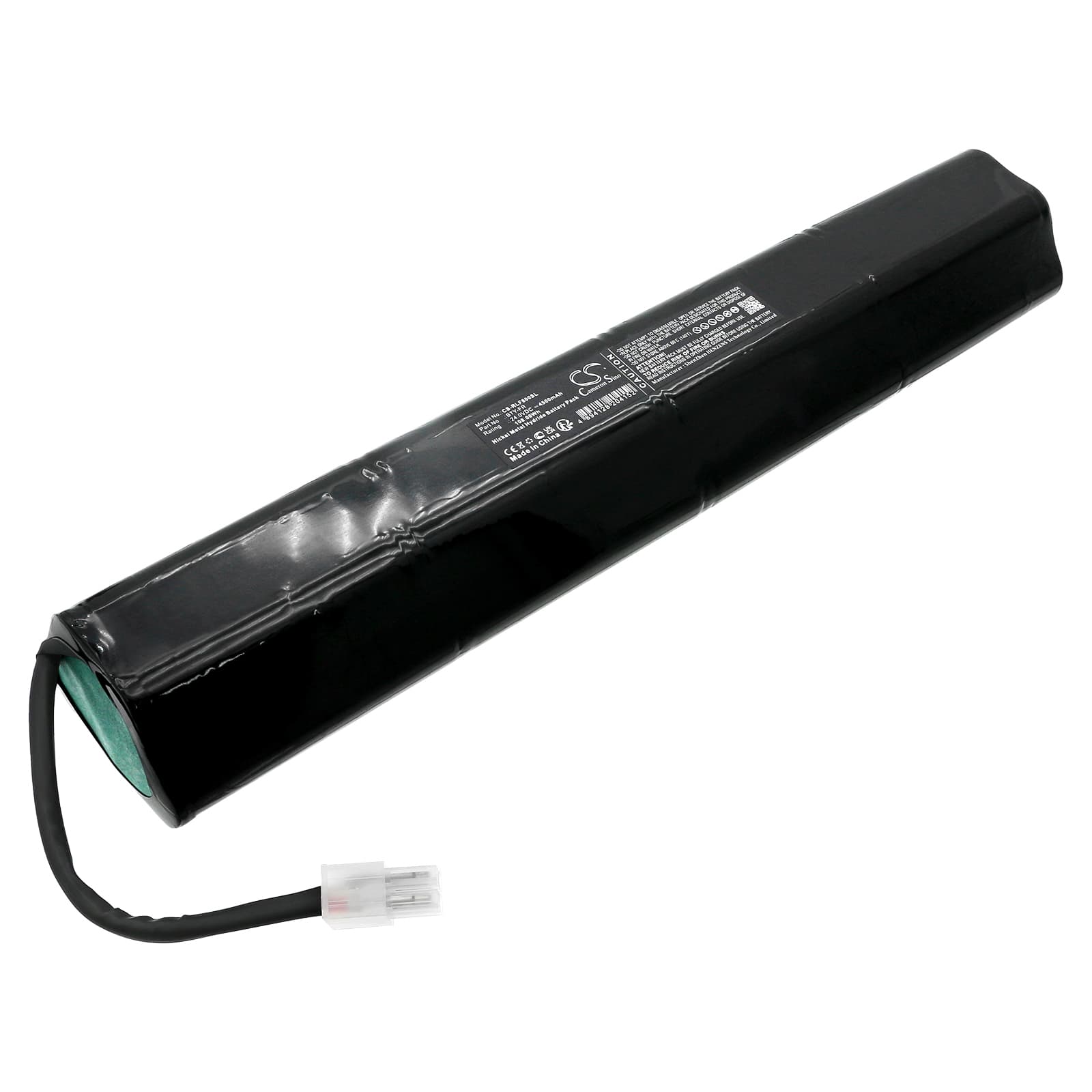

Roland FR-8x / FR-7x Series — 24V Ni-MH Replacement Battery (BTY-FR / BP-24-45)
This is a 24V, 4500mAh Ni-MH replacement battery for the Roland V-Accordion FR-8x, FR-8xb, FR-7x, FR-7xb, and seven additional FR-series models. It replaces OEM part numbers BTY-FR, FBC-7, and BP-24-45. The battery powers the instrument's digital sound engine, speakers, and MIDI electronics during live performance and practice.
- FR-8x and FR-7x compatibility: Both the 8x and 7x lines share the same 24V battery rail, connector pinout, and BMS handshake requirements. A single cell format covers both full-size and b-variant models without modification.
- Bench tested on actual hardware: We ran this battery through charge-discharge cycles on an FR-series unit and confirmed the BMS accepted full charge, communicated state-of-charge correctly to the instrument's display, and held voltage stable across the sound engine and speaker amp under simultaneous load.
- Pre-performance charging protocol: Ni-MH cells in the FR series are sensitive to partial-charge memory effect over time. Always bring this battery to a full charge before a live set — the accordion's DSP and speaker amplifier draw simultaneously, and a partially charged Ni-MH cell voltage sags faster under that combined load than a cell at full capacity.
Why the FR-8x powers off mid-performance without warning
The FR-8x runs a 24V rail shared across the DSP, MIDI engine, and speaker amplifier. When a degraded Ni-MH battery sags under peak draw — for example, during loud polyphonic passages — the rail voltage can dip below the instrument's minimum operating threshold. The BMS reads this as a fault condition and triggers a protective shutdown before the cells reverse-charge. This happens even when the battery indicator still shows partial charge, because the indicator reflects resting voltage, not loaded voltage.
FR-series battery indicator reads full but the instrument shuts down early
Ni-MH cells degrade unevenly across a pack — individual cells lose capacity at different rates. The on-board indicator measures pack voltage at rest, so a pack with one weak cell can read close to full until load is applied. Under the combined draw of the sound engine and amplifier, the weak cell collapses first and pulls the pack voltage down sharply. Replace the battery and after fitting, run a full charge cycle to 24V before relying on the indicator reading.
