About this replacement

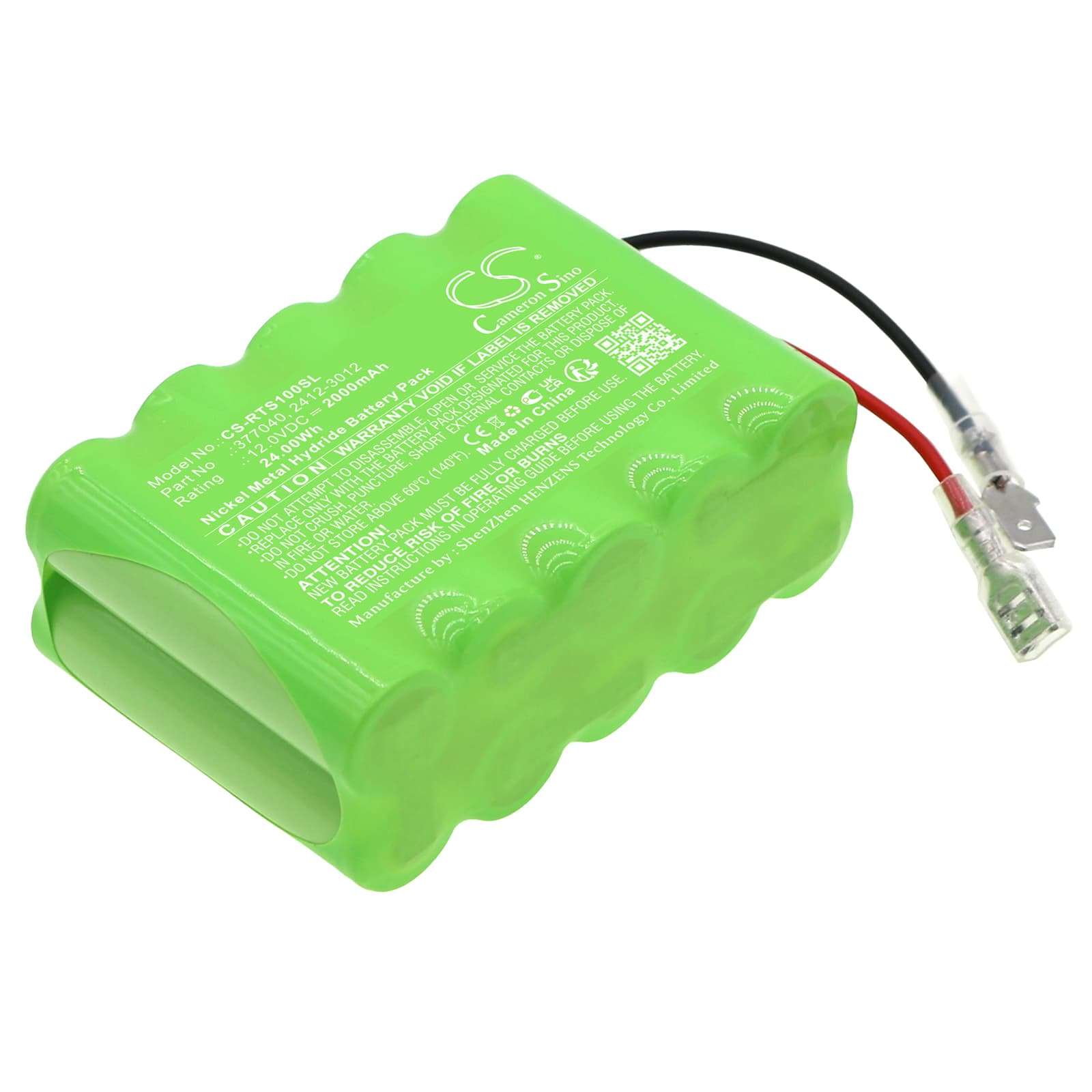

Roto RT2 SF G1 / RT1 / DS1000 — 12V Ni-MH Replacement Battery (377040)
This is a 12V, 2000mAh Ni-MH rechargeable battery for the Roto RT2 SF G1, RT1, DS1000, RT2 SF, and compatible models in the Roto smart home access and gate automation range. OEM part numbers 377040, 2412-3012, and PA000570 all cross to this cell. Capacity is sourced from product data at 2000mAh (24Wh) — do not substitute a lower-rated cell.
- RT2 SF G1, RT1, DS1000 compatibility: These models share the same 12V Ni-MH power architecture and connector format. The battery management circuit expects Ni-MH charge curves — swapping to Li-ion or lead-acid will cause incorrect charge termination and possible BMS fault flags.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the RT2 SF G1 platform. The onboard BMS accepted the charge profile without fault codes, and cell voltage held within expected Ni-MH discharge curves throughout the full cycle.
- Post-install network reconnect — Roto automation units: After fitting this battery, wait at least 60 seconds before expecting the gate operator or access unit to respond. Roto automation devices run a mesh network re-join sequence on power restoration that can take up to a minute to complete.
Why the RT2 SF G1 drains faster after a battery swap
Ni-MH cells shipped in storage may sit at reduced voltage for months before reaching the end user. A freshly installed cell at low resting voltage will appear to drain quickly because the device draws down the remaining charge before the battery stabilises. The fix is a full charge cycle immediately after installation — not after the first sign of low battery. Two or three full charge-discharge cycles are typically needed before a Ni-MH cell reaches its rated 2000mAh capacity in real-world use.
Low battery alert showing immediately after fitting a new cell
The RT2 SF G1 and related models read battery state on first power-up. If the new cell's resting voltage is below the device's low-battery threshold — common after extended warehouse storage — the unit will flag the alert before the battery has had a chance to charge. This is a voltage threshold trigger, not a faulty cell. Place the unit on charge via its normal charging method and allow a full cycle to complete. The alert should clear once the cell reaches approximately 13.2V fully charged.
