About this replacement

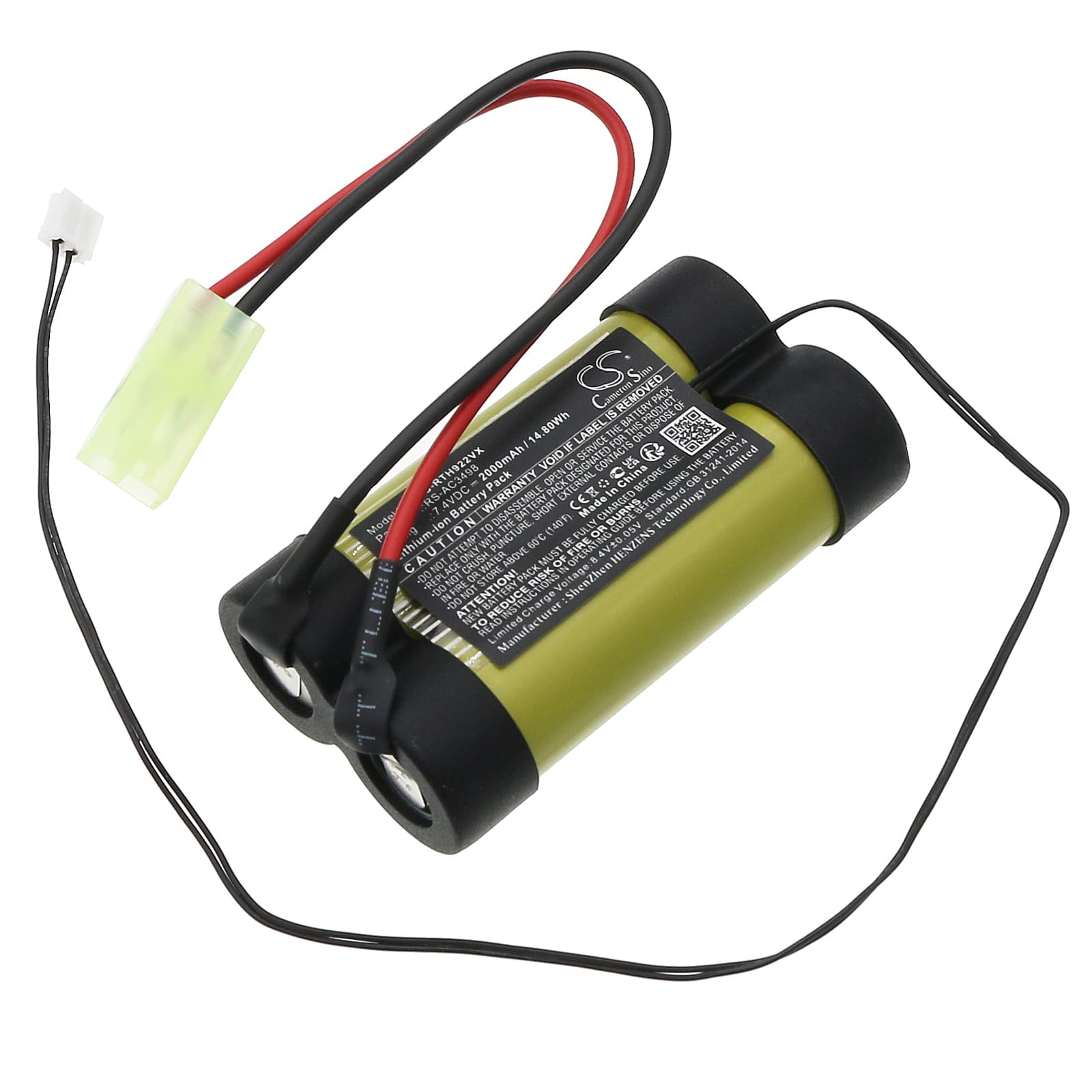

Rowenta AC922701/9A0 Series — 7.4V Li-ion Replacement Battery (RS-AC3498)
This 7.4V, 2000mAh Li-ion battery replaces the RS-AC3498 cell in the Rowenta AC922701/9A0, AC922701/9A1, AC92274A/9A0, and AC92274A/9A1 cordless handheld vacuums. It slots into the original battery bay using the same connector and BMS handshake as the factory cell. Dimensions are 68.50 x 39.00 x 20.00mm — same footprint as stock.
- AC9227 series fit: All four models share the same 7.4V two-cell Li-ion configuration, connector pinout, and BMS communication protocol. One replacement cell covers the full AC9227 range without modification.
- Bench tested on actual hardware: We ran this cell through charge cycles on the AC922701 dock and confirmed the BMS handshake completed correctly, thermal cutoff activated at the rated threshold, and the charger reached full-charge termination without error codes.
- Dock charging habit matters on this model: Remove the vacuum from the charging dock once the indicator shows full. The AC9227 dock does not switch to a true maintenance mode — it continues to trickle current, which accelerates capacity fade in Li-ion cells over weeks of continuous contact.
Suction dropping before the battery indicator reaches low on the AC9227
The AC9227's motor draws current proportional to airflow restriction. A partially clogged filter forces the motor to work harder, pulling amps beyond the BMS's sustained-draw threshold before the cell is actually depleted. The BMS interprets this elevated draw as a fault and throttles output — the indicator still shows charge, but suction collapses. Clean the filter first. If suction restores immediately after a filter clear, the battery is not the cause.
Motor cuts out mid-use then recovers after a few seconds
This is a BMS overcurrent trip, not a cell failure. On the AC9227, sustained restricted suction — from a blockage in the nozzle or a saturated filter — spikes current draw sharply. The BMS opens the discharge circuit to protect the cells, then resets after a brief cooldown. If the cycle repeats after clearing the blockage, verify the replacement cell is seated fully and the connector pins are making clean contact. A loose connection causes intermittent resistance spikes that trigger the same trip at 7.0V or below.
