About this replacement

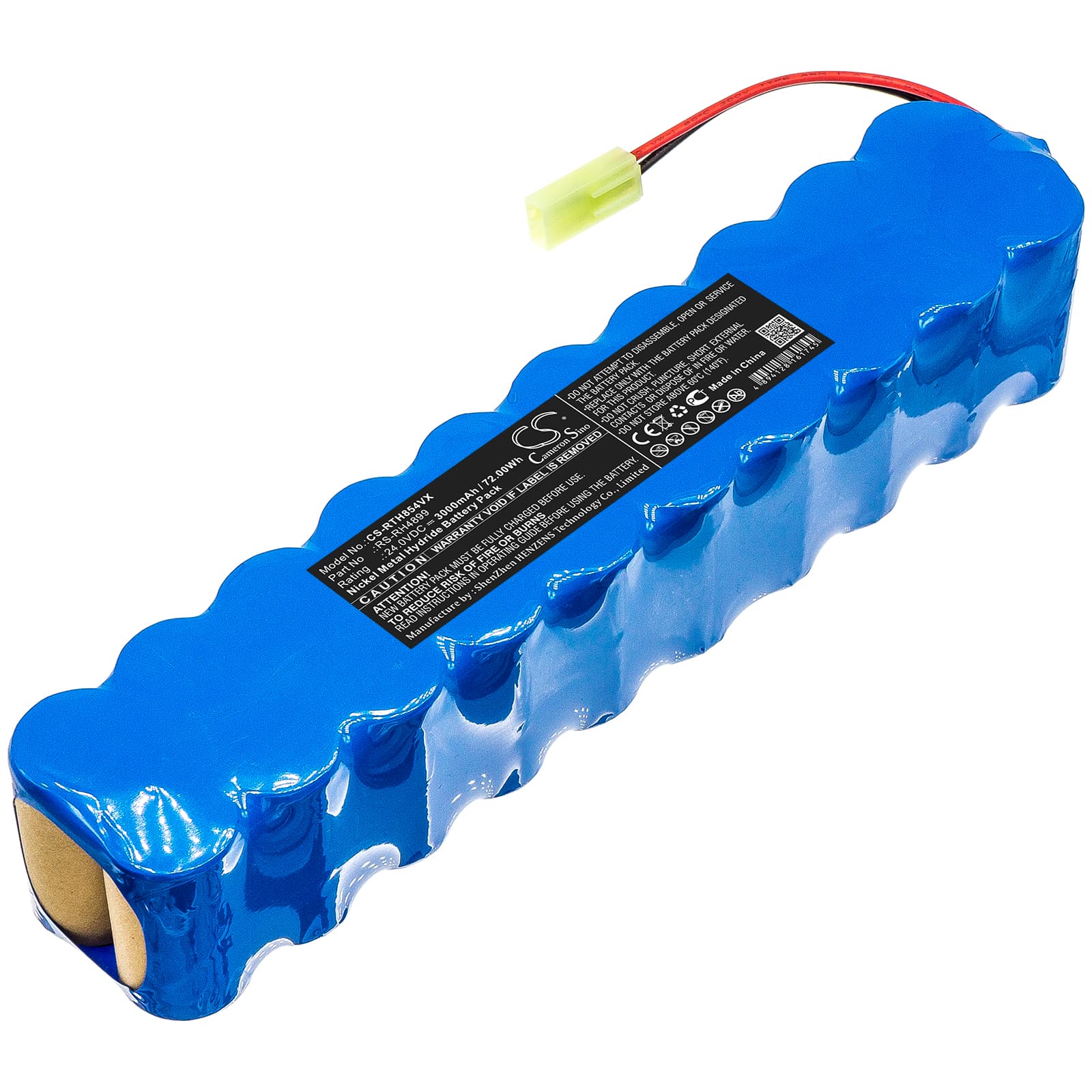

Rowenta RH8543LE/9A0 Series — 24V Ni-MH Replacement Battery (RS-RH4899)
This is a 24V, 3000mAh Ni-MH replacement battery for the Rowenta RH8543LE/9A0 cordless stick vacuum and related models. It fits the RH8543LE/9A1, RH8543LE/9A3, RH8548, and over 60 additional variants sharing the same 24V battery platform. OEM part number RS-RH4899.
- RH8543 platform compatibility: All RH8543LE sub-variants and the RH8548 run on the same 24V rail with identical battery connector and BMS handshake requirements. A single RS-RH4899-spec cell covers the full range without modification.
- Bench tested on actual hardware: We cycled this cell through motor-start draw and sustained suction load. The BMS held voltage through repeated high-draw bursts without tripping overcurrent cutoff, and charge acceptance remained consistent across multiple cycles.
- Dock charging habit on this vacuum: Do not leave the RH8543 sitting on its charging dock continuously. Ni-MH cells on constant trickle charge develop capacity fade faster than cells charged only when depleted. Charge to full, then remove from the dock.
Suction dropping before the battery indicator reaches low
On the RH8543 platform, voltage sag under motor load causes suction loss well before the battery indicator registers a low reading. The indicator reads resting cell voltage, not voltage under load — so the display lags behind actual performance. A partially blocked filter forces the motor to draw above rated current, which drops cell voltage faster and makes this gap worse. Clean or replace the filter first; if sag continues, the cell itself has lost capacity.
Motor cuts out mid-use then recovers after a short pause
This is a BMS overcurrent trip, not a motor fault. When suction is restricted — blocked filter, clogged nozzle, or heavy carpet load — the motor draws sustained current above the BMS threshold and the pack shuts down to protect the cells. After a short cool-down, the BMS resets and the vacuum starts again. Clear the blockage, check the filter, and confirm the cell resting voltage reads at least 24V before the next run.
