About this replacement

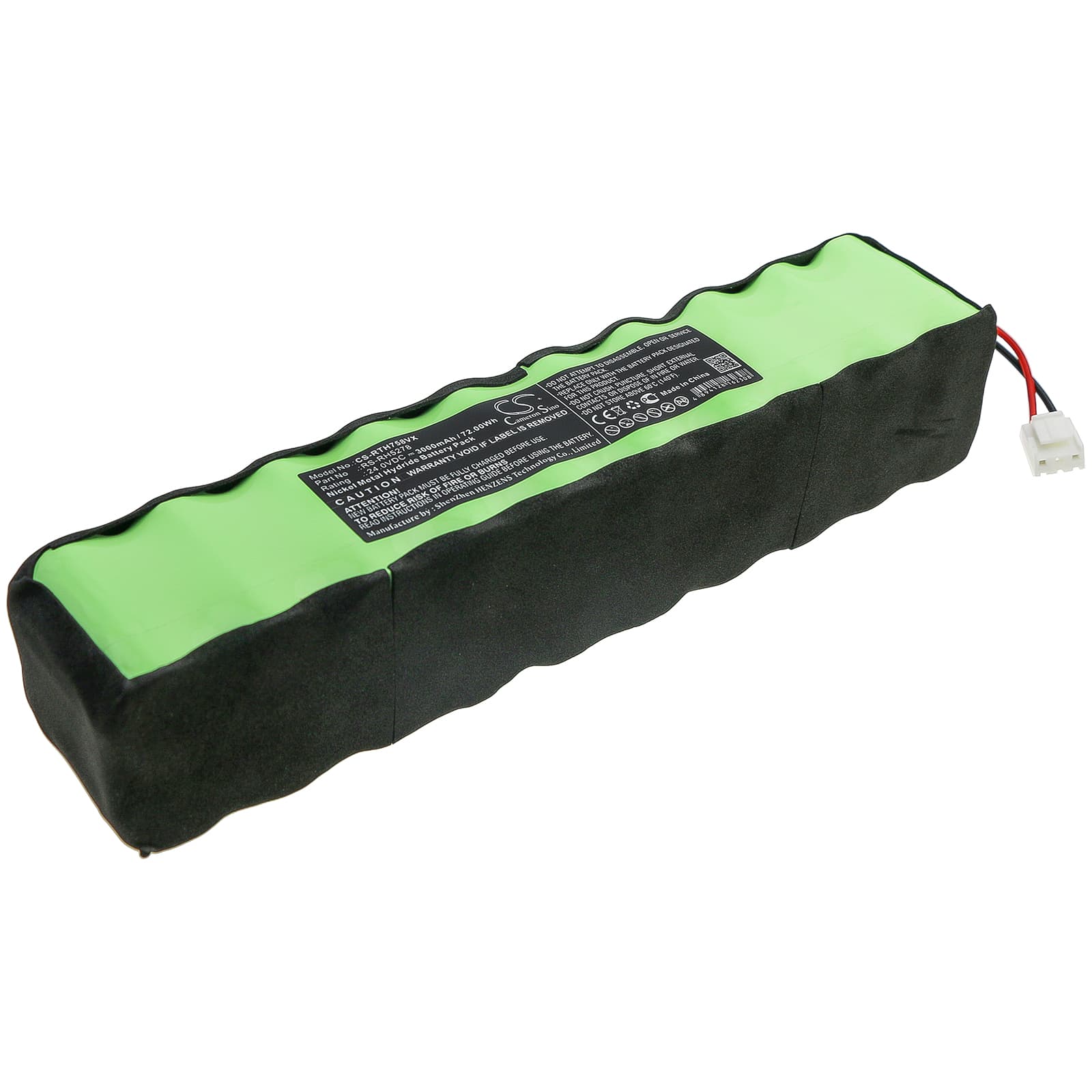

Rowenta RH8770WU/2D1 Series — 24V Ni-MH Replacement Battery (RS-RH5278)
This is a 24V Ni-MH battery rated at 3000mAh (72Wh), built to the RS-RH5278 specification. It fits the Rowenta RH8770WU/2D1 cordless stick vacuum and over a dozen related models in the same platform. If the original battery no longer holds a charge or suction drops off faster than it used to, this is the direct replacement.
- RH8770 and RH8771 platform fit: These models share the same 24V battery rail, physical connector, and BMS communication protocol. That covers RH8770WU/2D1, RH877101/2D1, RH8771WS/9A0, RH877101/9A0, and 16 additional variants — all drawing from the same battery architecture.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the RH8770 platform. The BMS accepted the cell without fault codes, motor startup current was handled correctly, and the protection circuit held under sustained suction load.
- Dock charging on this vacuum: Remove the vacuum from the charging dock once the battery reaches full. Leaving it docked continuously triggers a slow trickle charge that degrades Ni-MH cells significantly faster than charge-and-remove cycles. This is the most common reason original batteries fail early on this platform.
Suction dropping before the battery indicator reaches low
Ni-MH cells under load show a voltage curve that drops faster than the indicator circuit expects. On the RH8770 platform, the motor begins to underspeed before the battery LED signals low — so suction falls off while the indicator still shows charge remaining. A partially blocked filter makes this worse: restricted airflow forces the motor to draw above rated current, which accelerates the voltage drop. If suction falls early and the filter is clear, the cell is likely below usable capacity. A full charge cycle on a fresh cell resolves this immediately.
Motor cuts out mid-use and then recovers after a short pause
This is an overcurrent trip from the battery's BMS, not a motor fault. When the filter is restricted or the brush roll is snagged, the motor draws sustained high current that exceeds the BMS protection threshold — and the circuit opens to prevent cell damage. After a short pause the BMS resets and the vacuum powers back on. Clearing the filter and brush roll removes the restriction. If trips continue on a clean vacuum with a new battery, check that the charger has brought the cell to at least 28.8V (full charge for a 24V Ni-MH pack) before use.
