About this replacement

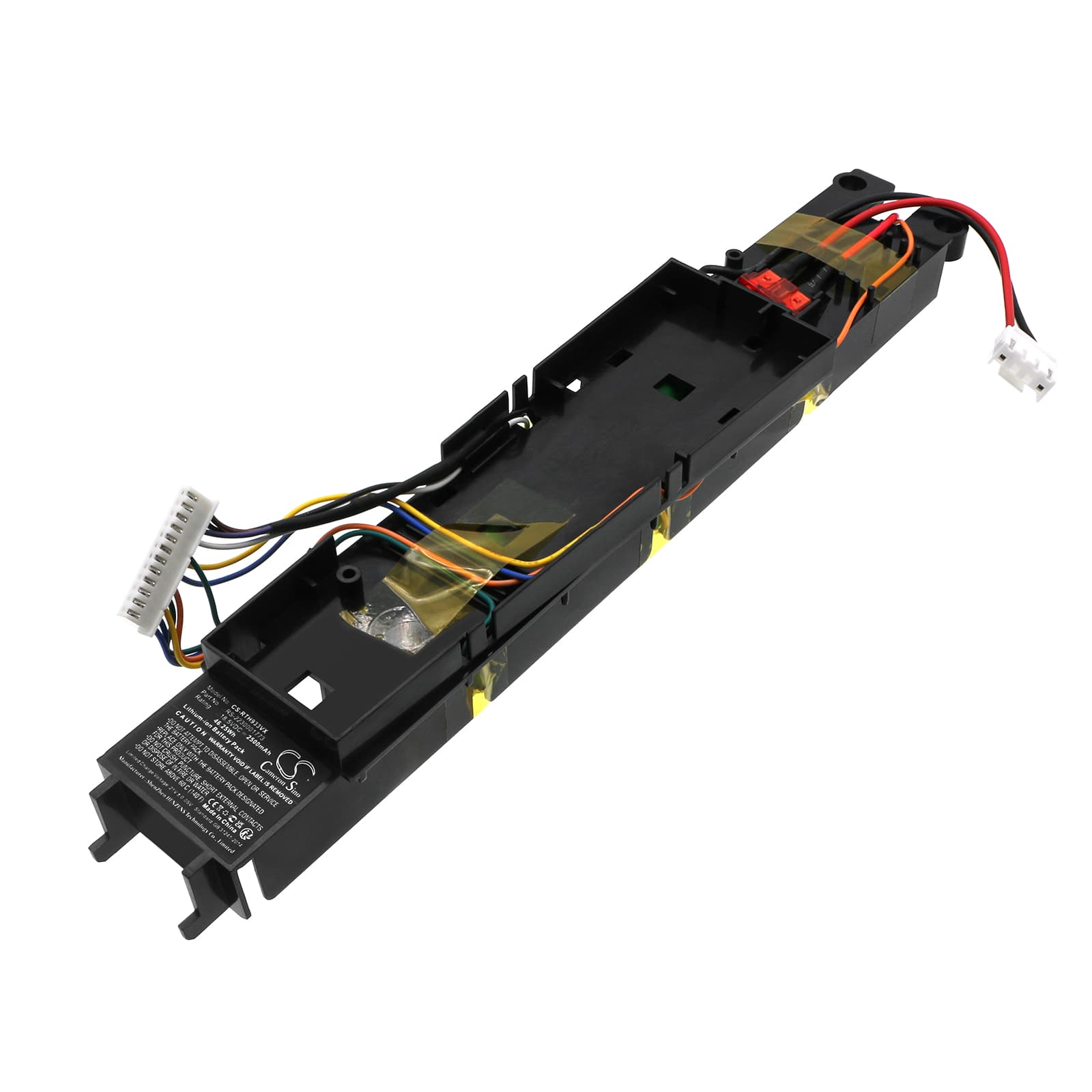

Rowenta RH9139WHR/2D1 Series — 18.5V Li-ion Replacement Battery (RS-2230001773)
This is an 18.5V 2500mAh Li-ion replacement battery for the Rowenta cordless stick vacuum range. It fits the RH9139WHR/2D1 and over 30 related models in the same platform, including the RH9174WO/2D1, RH9158WO/2D1, and RH9174WO/2D0. Swapping this battery brings a degraded vacuum back to full motor power without replacing the entire unit.
- RH91 platform compatibility: These models share the same 18.5V voltage rail, battery connector, and BMS communication protocol. The RS-2230001773 part number covers the full group — the BMS handshake is identical across all variants listed.
- Bench tested on actual hardware: We ran this cell through full charge-discharge cycles on the RH91 platform and monitored BMS response under sustained suction load. The protection circuit held cutoff at the correct threshold with no spurious trips during normal use.
- Dock charging habit on this vacuum: Do not leave the vacuum sitting on the charging dock continuously. The RH91 series does not interrupt trickle current once full, so cells left docked for days accumulate heat stress and lose capacity faster. Charge to full, then remove from the dock.
Suction dropping before the battery indicator reaches low
This happens when the motor draws more current than the battery can sustain under partial load — usually caused by a restricted filter rather than a failing battery. A blocked filter raises motor draw, which pulls the cell voltage down early and triggers the BMS to reduce output before the charge gauge catches up. Clean or replace the filter first and retest. If suction still drops on a clean filter, the battery cell capacity has degraded and replacement is the correct fix.
Motor cutting out mid-clean then recovering after a few seconds
This is a BMS overcurrent trip, not a wiring fault. When suction is restricted — usually a full dust cup or blocked cyclone — the motor works harder and current spikes above the BMS cutoff threshold. The BMS shuts output off to protect the cell, then resets once current drops. Empty the dust cup, check the cyclone mesh for debris, and confirm the filter is clear. If the cutout continues on a clean vacuum with a new battery, check that the battery terminal contacts on the vacuum body are clean and making full contact.
