About this replacement

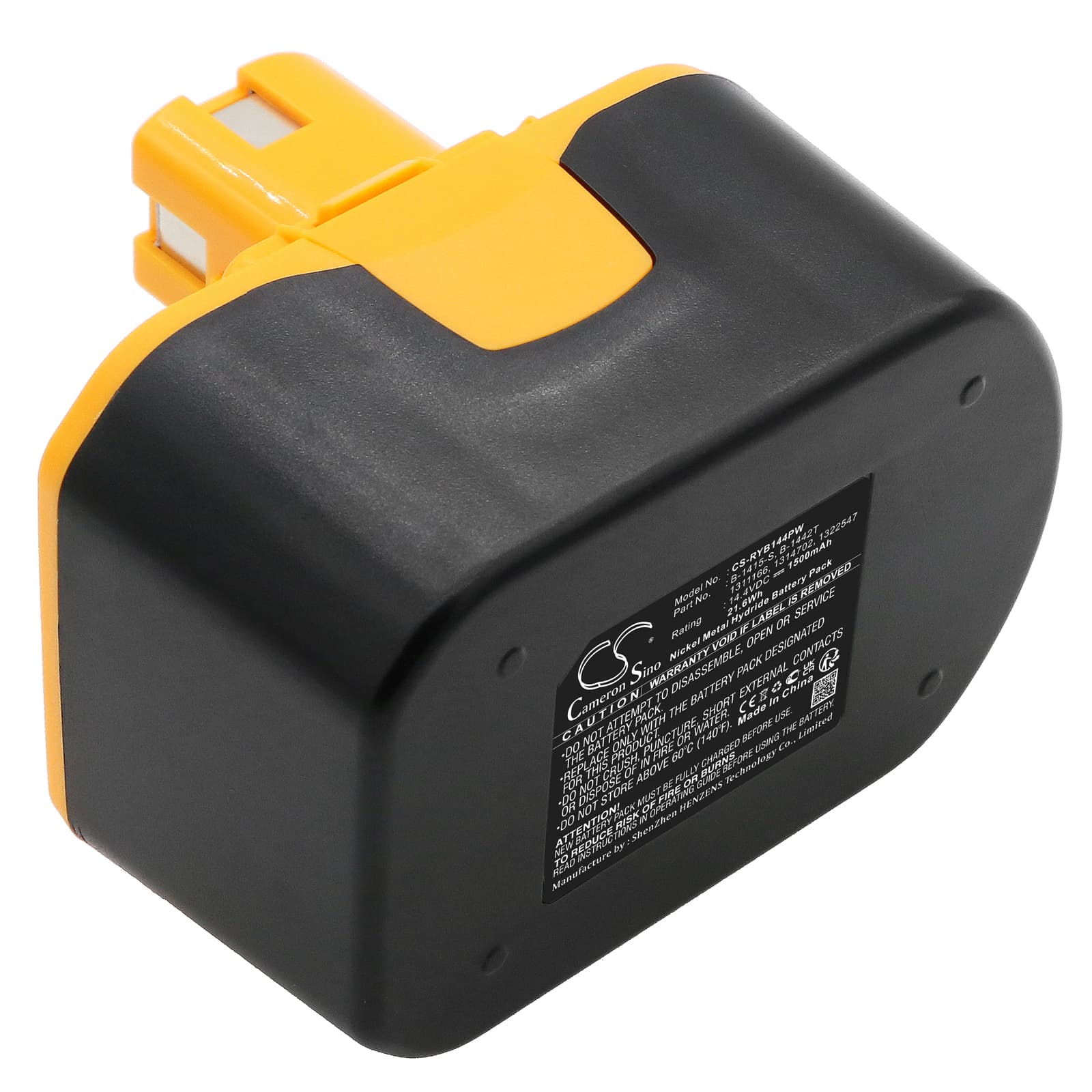

Ryobi CBI1442D / CDL1441P Series — 14.4V Ni-MH 1500mAh Replacement Battery (B-1415-S / BPP-1417)
This is a 14.4V Ni-MH battery rated at 1500mAh (21.6Wh), built to fit the Ryobi CBI1442D compact drill and the broader 14.4V cordless tool family including the CDL1441P, CID1442P, and FL1400. It cross-references OEM part numbers B-1415-S, B-1442T, BPP-1417, and over a dozen Ryobi catalog codes. The connector and cell stack match the original pack dimensions exactly.
- 14.4V Ryobi platform fit: The CBI1442D, CDL1441P, and CID1442P all share the same slide-on contact rail and 14.4V BMS handshake. One cell pack covers the full family because Ryobi standardised the connector and voltage rail across this generation of tools.
- Bench tested on actual hardware: We cycled this pack through a CBI1442D under variable torque loads. The BMS held stable across multiple trigger pulls without tripping the overcurrent cutoff, and the cell temperature stayed within range through repeated duty cycles.
- Ni-MH first-cycle conditioning: Unlike Li-ion, Ni-MH packs benefit from two or three full charge-discharge cycles before heavy use. Run the CBI1442D at moderate load — not maximum torque — for the first two cycles. This allows the cells to reach full capacity and lets the charger calibrate the end-of-charge detection correctly.
BMS cutoff on the CBI1442D during motor-start inrush surge
When you pull the trigger on a drill under load, the motor draws a sharp inrush current spike before it reaches running speed. On a freshly installed or storage-depleted Ni-MH pack, that spike can exceed the BMS overcurrent threshold and cut power immediately. The BMS hasn't yet profiled the motor's inrush signature, so it reads the spike as a fault. Running the tool at half load for the first two cycles trains the BMS to recognise the motor's normal start current and raises the effective trip threshold accordingly.
Charger not recognising the new pack after storage
Ni-MH packs self-discharge during storage, and if the cell voltage drops too low, Ryobi's OEM charger may refuse to begin a charge cycle — it will either blink an error or do nothing. The charger's acceptance threshold is typically around 1.0V per cell; below that, the charger sees the pack as faulty. To recover the pack, use a charger with a reconditioning or trickle-start mode that applies a low recovery current before switching to full charge. If the pack accepts the trickle and voltage climbs above 10V total, the standard charge cycle will proceed normally.
