About this replacement

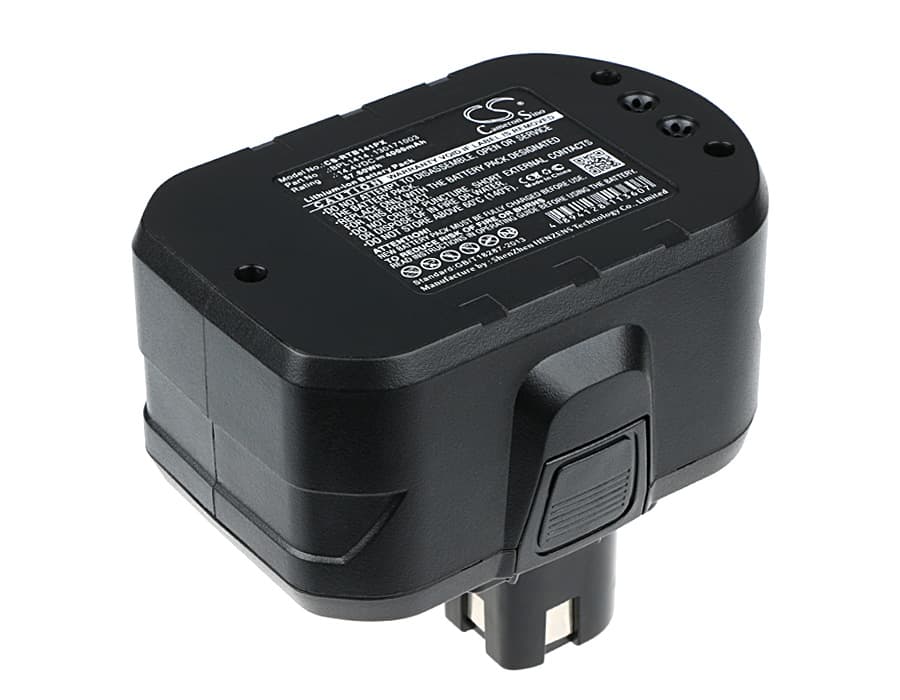

Ryobi CDD144V22 Series — 14.4V Li-ion Replacement Battery (BPL1414)
This is a 14.4V 4000mAh Li-ion battery for Ryobi 14.4V cordless drill/drivers. It fits the CDD144V22, CDDI14022NF, LCD14022, and LCDI14022, among others. The OEM part numbers it replaces are BPL1414 and 130171003.
- CDD144V22 platform compatibility: These models share a common 14.4V rail, identical terminal layout, and the same BMS handshake protocol — which is why a single pack covers the full range. The connector seats and latches without modification.
- Bench tested on actual hardware: We cycled this pack through multiple charge and discharge runs on a 14.4V drill platform. The BMS flagged overcurrent correctly on simulated motor-start inrush and recovered without tripping into lockout.
- First two cycles on the CDD144V22: Run the drill at half load for the first two cycles before applying maximum torque. This lets the BMS profile the motor inrush current draw and set accurate overcurrent protection thresholds before you push the tool hard.
BMS cutoff on motor-start inrush in the CDD144V22
When you pull the trigger on a stalled or heavily loaded drill, current spikes sharply before the motor reaches speed. If the BMS threshold is set conservatively — common on new or storage-rested packs — that spike can trip the overcurrent protection and cut the tool instantly. The BMS does this to protect the cells, not because the battery is faulty. To clear it, release the trigger, wait three seconds, then re-engage at lower torque to let the motor build speed before the load bites.
Charger not recognising the pack after storage
Li-ion packs stored for more than a few months can drop below the charger's acceptance voltage — typically around 10V on a 14.4V pack — causing the charger to blink an error instead of entering charge mode. The charger sees the low cell voltage as a fault rather than a depleted pack. Some Ryobi chargers include a recovery or "boost" mode that trickle-charges at low current until the pack reaches the acceptance threshold. If your charger lacks that mode, check the pack voltage with a multimeter — if it reads above 8V, the cells are likely recoverable with a charger that supports low-voltage wake-up.
