About this replacement

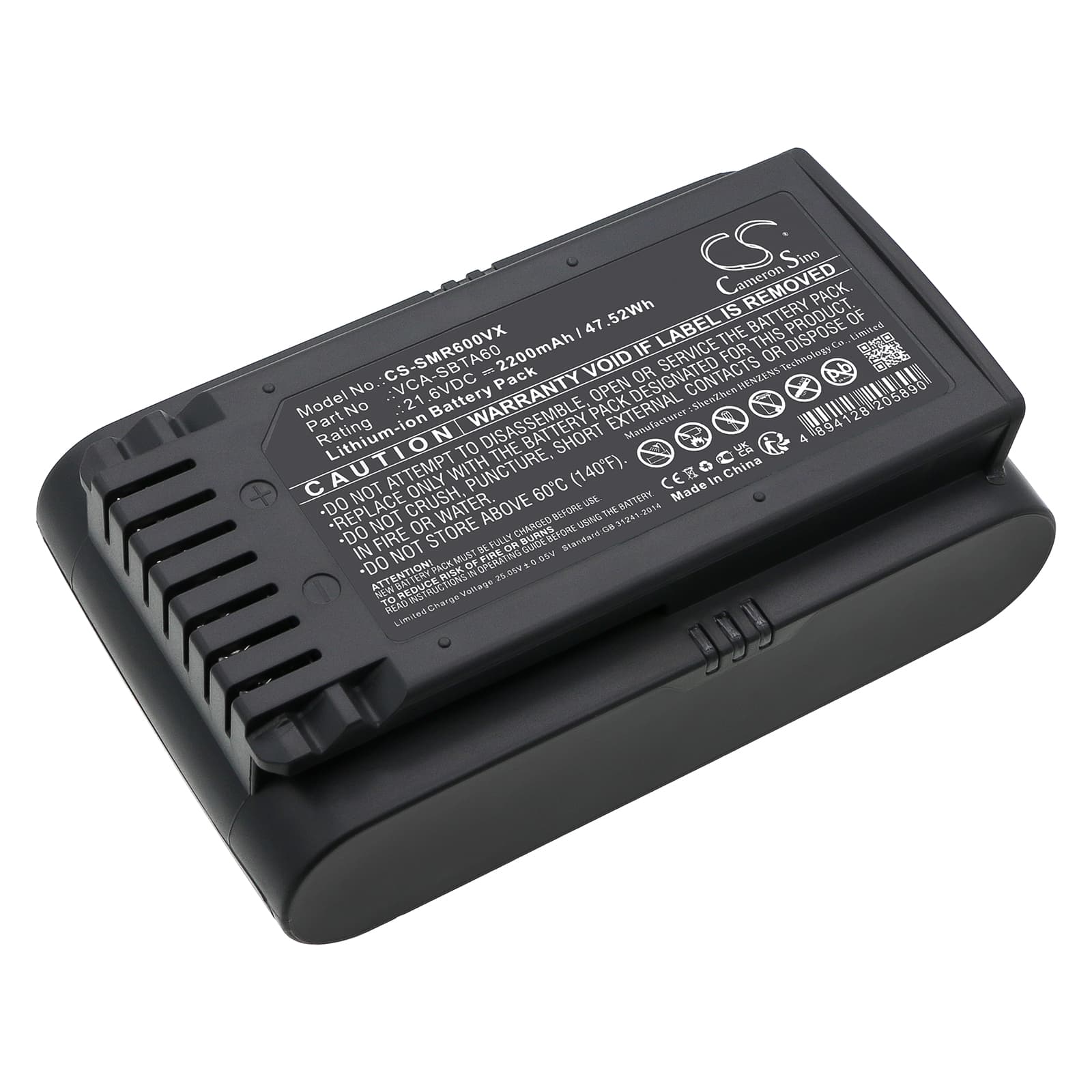

Samsung Jet 60 Series — 21.6V Li-ion Replacement Battery (VCA-SBTA60)
This is a 21.6V, 2200mAh lithium-ion battery for the Samsung Jet 60 cordless stick vacuum. It fits the VS15A6031R7/AA, VS15A6031N5/AA, VS15A6032R7/AA, and related Jet 60 variants. Capacity is rated at 47.52Wh — matching the original cell specification from Samsung.
- Jet 60 series compatibility: All listed VS15A60 models run the same 21.6V motor rail and use the same VCA-SBTA60 battery bay with an identical connector and BMS communication protocol. One cell services the entire Jet 60 range.
- Bench tested on actual hardware: We ran this cell through full charge-discharge cycles on the Jet 60 platform. The BMS handshook correctly with the vacuum's charge controller — no error codes, no cutoff at motor start, and voltage held stable through sustained suction load on carpet.
- Dock charging discipline on the Jet 60: The Jet 60's charging dock delivers a trickle current once the battery hits full charge. Leaving the vacuum docked permanently accelerates capacity fade. Charge to full, then remove the vacuum from the dock until the next use.
Suction dropping before the battery indicator reaches low
This happens when the motor draws more current than the battery's BMS expects — usually caused by a partially blocked filter or brush roll restriction rather than a weak cell. The BMS reads the voltage sag from the elevated draw and throttles output to protect the pack, which the vacuum interprets as low power. Clean the filter and check the brush roll for hair wrap before swapping the battery. If suction restores immediately after clearing the restriction, the battery is not the fault.
Motor cuts out briefly then recovers during use
A momentary cutout that self-recovers within a few seconds is a BMS overcurrent trip — not a charger fault or dead cell. On the Jet 60, sustained high-resistance suction (blocked filter, sealed brush roll) spikes current draw past the BMS trip threshold. The BMS shuts the output rail, then re-enables it once current normalises. Fix the restriction first; if cutouts continue on a clear filter with a fresh battery, check that the cell voltage at rest reads at least 21.6V after a full charge cycle.
