About this replacement

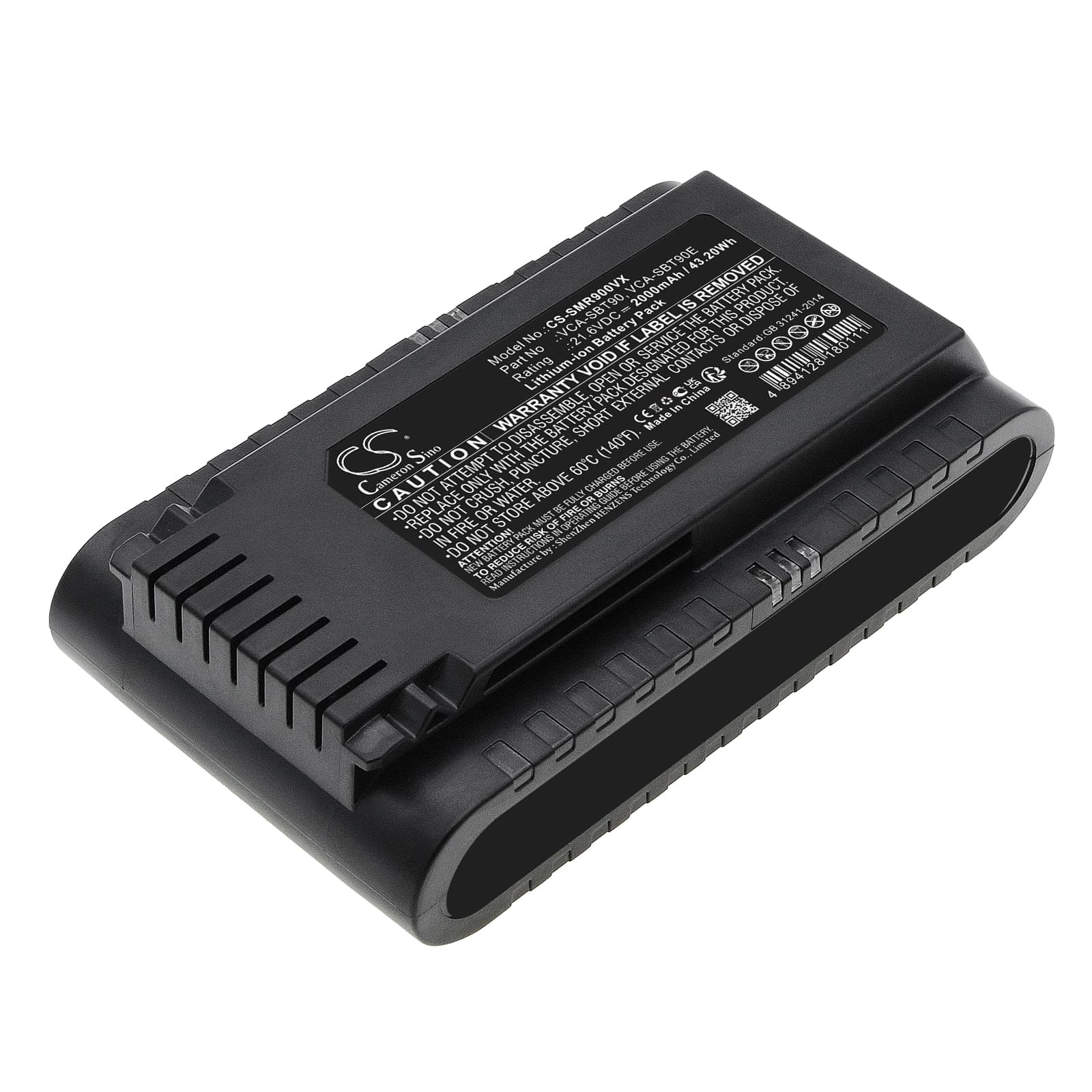

Samsung Jet 70 Series — 21.6V Li-ion Replacement Battery (DJ96-00221A)
This 21.6V, 2000mAh (43.2Wh) lithium-ion battery replaces the original power cell in the Samsung Jet 70, Jet 70 Light, Jet 70 Easym VS15T7033R4/SH, and compatible stick vacuum models. It matches the OEM voltage rail, connector, and BMS communication the vacuum's motor controller expects. Cross-references include DJ96-00227A, VCA-SBT90, VCA-SBT90E, VCA-SBT90EB, and VS15R8542S1.
- Jet 70 platform fit: The Jet 70 family runs a shared 21.6V architecture across its variants — same connector housing, same BMS handshake protocol, same charge termination voltage. This battery slots into any model in that line using the DJ96-00221A or DJ96-00227A part number without modification.
- Bench tested on actual hardware: We cycled this cell on a Jet 70 under simulated floor and carpet load. The BMS handled overcurrent events on blockage simulation correctly — tripping and recovering without error flags — and charge termination landed at the expected 24.8V cutoff.
- Dock charging habit on the Jet 70: The Jet 70 charging dock does not disconnect the cell once full. Leaving the vacuum on the dock continuously applies a trickle charge that degrades cell capacity faster than normal use. Charge to full, then remove the vacuum from the dock.
Suction dropping before the battery indicator reaches low
The Jet 70's motor draws significantly more current when airflow is restricted — a partially blocked filter can push draw well above rated amps before the battery indicator moves. That extra load causes a voltage sag at the cell level, which the BMS reads as a low-voltage condition and throttles motor output to protect the pack. The indicator, which tracks state-of-charge under normal load, lags behind what's actually happening electrically. Clean or replace the filter first — if suction normalises, the battery is not the fault. If sag continues on a clean filter, the cell is degraded and replacement is the next step.
Motor cuts out mid-session and then recovers after a short pause
This is a BMS overcurrent trip — not a dead battery. When the vacuum sustains restricted airflow (blockage in the brush head, hose, or a clogged filter), the motor draws above the BMS overcurrent threshold and the pack disconnects to protect the cells. After 30–60 seconds the BMS resets and power returns. The cut-out will keep recurring until the restriction is cleared. Check the filter, brush roll, and hose for blockage before assuming a battery fault — if the vacuum runs normally after clearing the blockage, the BMS tripped correctly and no replacement is needed.
