About this replacement

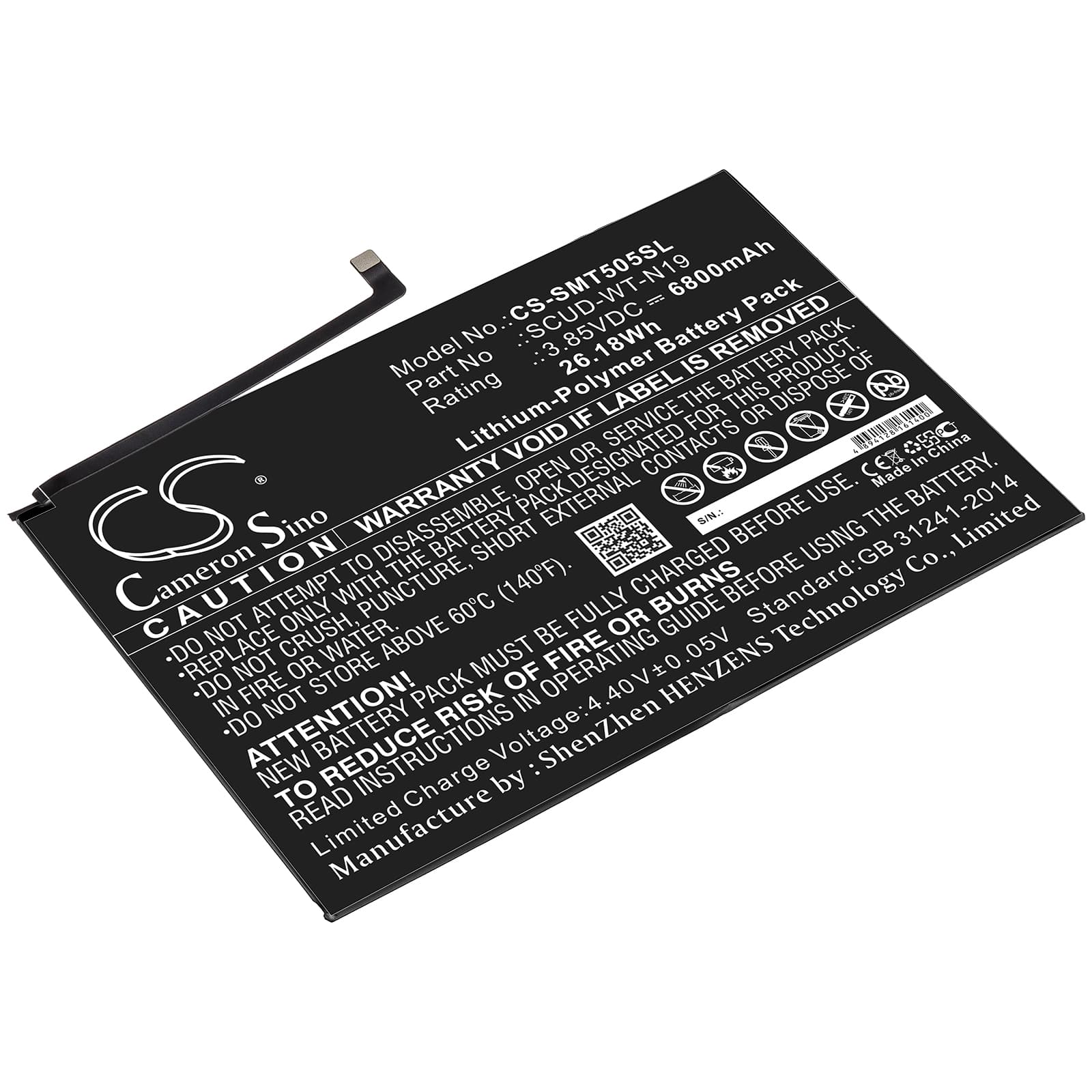

Samsung Galaxy Tab A7 10.4 2020 — 3.85V Li-Polymer Replacement Battery (SCUD-WT-N19)
This is a 3.85V, 6800mAh (26.18Wh) lithium-polymer cell for the Samsung Galaxy Tab A7 10.4 2020. It fits SM-T500, SM-T503, and SM-T505 variants. Install it when the original cell no longer holds a useful charge or causes unexpected shutdowns.
- SM-T500, SM-T503, SM-T505 compatibility: These three variants share the same internal chassis dimensions and charge IC. The connector pinout and BMS handshake protocol are identical across the range, so one cell covers all three without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a SM-T505 unit. The BMS accepted the full 6800mAh charge without tripping, and the charge IC communicated cleanly with the tablet's power management controller throughout.
- Fuel gauge recalibration after swap: After installing this battery, run the tablet down to automatic shutoff, then charge it uninterrupted to 100% before use. The Galaxy Tab A7's fuel gauge IC holds calibration data from the old cell. One full cycle against the new cell resets that data and corrects the percentage display.
Galaxy Tab A7 shutting down at 15–25% remaining
This happens because the display backlight and active WiFi together create a combined load that causes a rapid voltage drop at the cell's lower state-of-charge. When cell voltage sags below the BMS cutoff threshold — typically around 3.0V per cell — the tablet shuts off even though the percentage gauge still reads above zero. A degraded original cell hits this cliff earlier and earlier as capacity fades. A new 6800mAh cell restores the flat discharge curve, pushing that cutoff point back toward 0%.
Fast charging unavailable after battery replacement
The Galaxy Tab A7 uses USB-PD negotiation to enable fast charge. After a battery swap, the charge IC on the new cell needs at least one completed charge cycle before the tablet's power management firmware confirms the handshake and unlocks higher charge rates. If fast charging is missing immediately after install, complete one full charge from low to 100% using the original Samsung charger and cable. Check the charging indicator in Settings — fast charge should appear on the second cycle.
