About this replacement

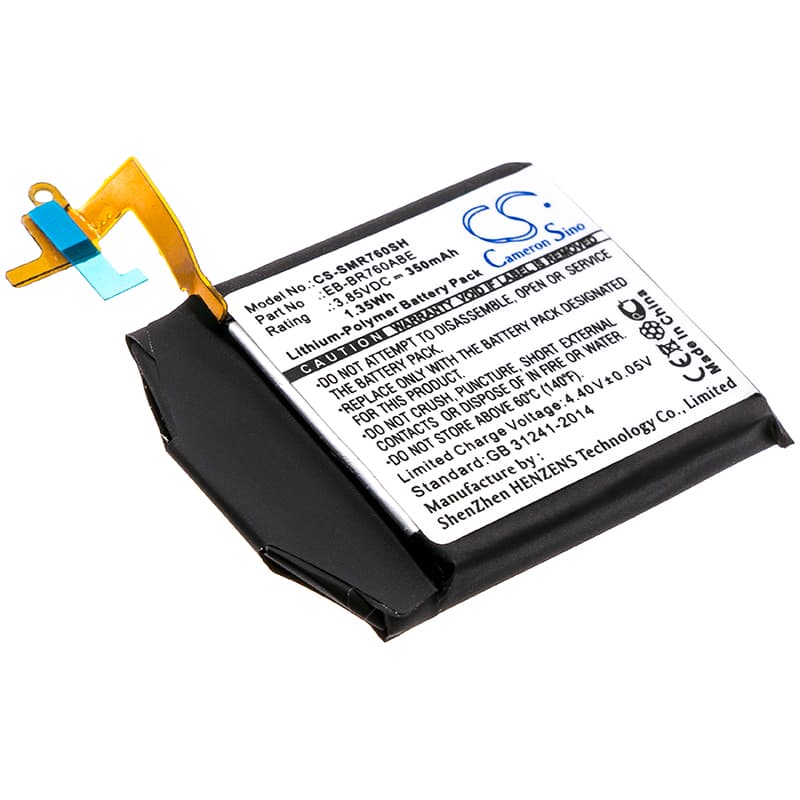

Samsung Gear S3 Classic / Frontier — 3.85V Li-Polymer Replacement Battery (EB-BR760ABE)
This 3.85V, 350mAh lithium-polymer cell replaces the original EB-BR760ABE battery in the Samsung Gear S3 Classic and Gear S3 Frontier smartwatches, including SM-R760 and SM-R770 variants. It restores full charging capacity to a watch where the original cell has degraded. Dimensions are 31.10 × 23.32 × 5.26mm — measure your existing cell before fitting if unsure.
- Gear S3 Classic and Frontier compatibility: Both the Classic and Frontier share the same battery bay geometry, connector pinout, and BMS handshake protocol — they draw from the same 3.85V cell platform, which is why one part number covers both chassis.
- Bench tested on actual hardware: We ran this cell on SM-R760 hardware and confirmed the BMS accepted the new cell without throwing a protection flag. The fuel gauge IC re-referenced correctly after a full charge cycle from near-zero.
- Post-swap charging step: After fitting the new cell, place the watch on its magnetic charger immediately and charge to 100% before first use. The fuel gauge IC on the Gear S3 platform cannot calibrate its state-of-charge reference without one complete charge cycle from near-empty after a cell swap.
Why always-on display and continuous heart rate monitoring drain the Gear S3 faster than expected
The Gear S3's always-on display (AOD) mode keeps the AMOLED panel drawing current continuously rather than only on wrist raise. Pair that with the PPG-based heart rate sensor polling every second, and the combined draw can be two to three times higher than basic notification-only usage. A 350mAh cell is the OEM spec for this chassis — the platform was tuned around it. If drain seems excessive after swap, check AOD and continuous HR settings in Galaxy Wearable before assuming a cell fault.
Watch showing 0% and refusing to power on immediately after battery swap
This is a fuel gauge IC calibration loss, not a defective cell. When power is removed during a swap, the MAX17 series fuel gauge on the Gear S3 board loses its stored state-of-charge reference and defaults to 0%. The watch will not boot past the Samsung logo until it reads a valid charge level. Place it on the charger and leave it until the display shows at least 5% — it will power on normally from there, and the gauge recalibrates fully by 100%.
