About this replacement

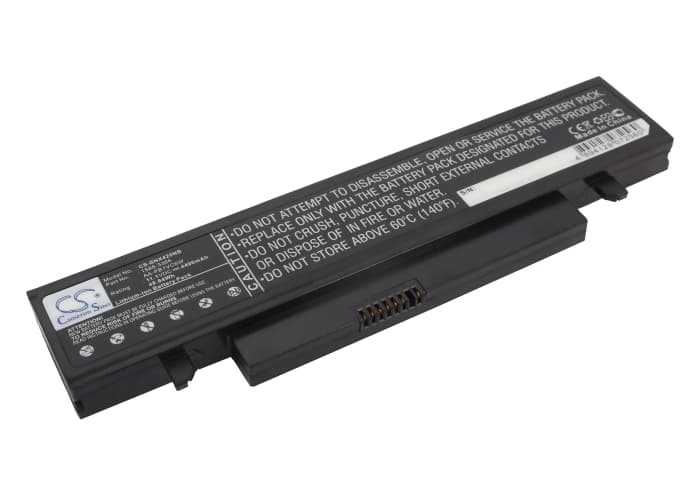

Samsung N230-Storm / N210 Series — 11.1V Li-ion Replacement Battery (AA-PB1VC6B)
This is an 11.1V, 4400mAh (48.84Wh) lithium-ion battery for the Samsung N230-Storm, N210, N210-Malo, N210-Malo Plus, and 66+ additional Samsung netbook models. It replaces OEM part numbers AA-PB1VC6B, AA-PL1VC6B, AA-PL1VC6W, AA-PB1VC6W, and 1588-3366. Physical dimensions are 204.00 × 52.70 × 20.10mm — verify against your bay before ordering.
- N230-Storm and N210 platform fit: These models share the same battery bay dimensions, connector pinout, and BMS communication protocol. A single cell works across the whole family because Samsung used one battery spec across this netbook line — the EEPROM handshake and charge IC are identical.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on an N210. The BMS initialised correctly, charge termination triggered at the expected 12.6V ceiling, and the protection circuit tripped cleanly at the low-voltage cutoff without latch errors.
- First-install calibration on Samsung netbooks: After fitting this cell, run the battery down until the laptop hibernates, then charge uninterrupted to 100% without interruption. This forces the BIOS battery learn cycle to reset against the new cell's EEPROM data and clears the false "poor health" warning that appears after every cell swap on these models.
Why the N230-Storm shuts down at 20–30% battery remaining
The N230-Storm's BIOS uses the fuel gauge IC's voltage curve to estimate remaining capacity. When the original cell ages, the BIOS maps a degraded voltage curve into its memory. After a cell swap, the stored curve no longer matches the new cell, so the firmware sees a voltage cliff and triggers shutdown well before the cell is actually empty. Running two full discharge-to-hibernate then full-charge cycles overwrites the learned curve with accurate data from the new cell. After calibration, the shutoff point will move back to the correct low-voltage threshold near 10.8V under load.
OS fuel gauge reading 0% or "unknown" immediately after fitting
The Windows battery meter on these Samsung netbooks reads capacity data from the cell's EEPROM, not directly from voltage. When a replacement cell arrives partially discharged, the EEPROM state and the actual charge level are out of sync, so the OS reports 0% or fails to display a percentage at all. Plug in the AC adapter immediately after installation and allow a full uninterrupted charge to 100% — do not boot on battery before this completes. Once the charge controller writes the first full-cycle record, the gauge will display correctly from the next boot.
