About this replacement

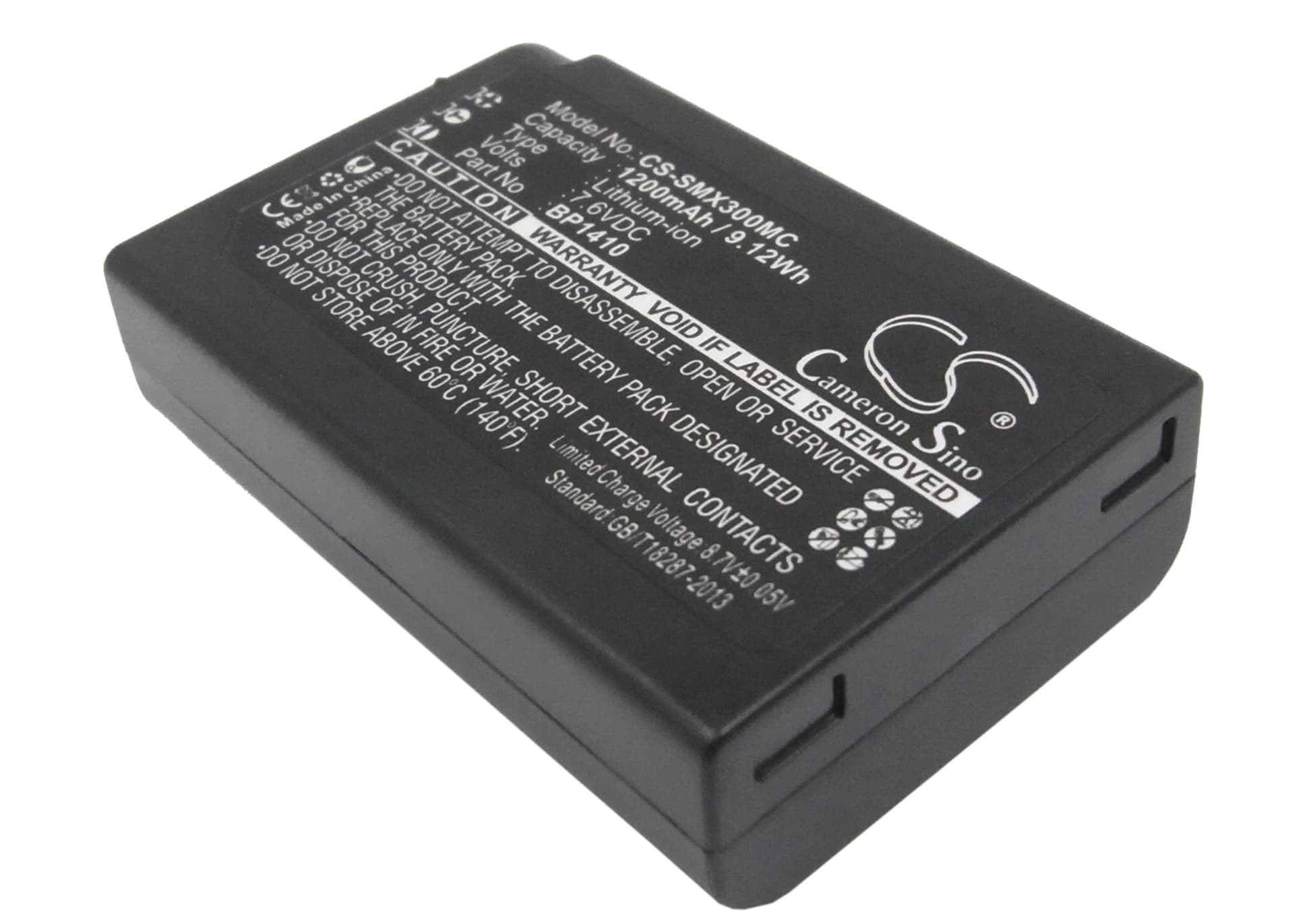

Samsung NX30 / WB2200F — 7.6V Li-ion Replacement Battery (BP1410)
This is a 7.6V, 1200mAh Li-ion replacement cell for the Samsung NX30 mirrorless camera, WB2200, and WB2200F. It slots into the same battery compartment as the OEM BP1410 and uses the same contact layout. Voltage and capacity match the original spec exactly.
- NX30, WB2200, and WB2200F compatibility: All three models run on the same BP1410 voltage rail and share an identical battery bay footprint. The BMS handshake protocol and contact pinout are consistent across this camera family, so one cell covers the group without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the NX30 body. The camera's BMS accepted the cell, reported a charge state, and drew current normally across autofocus, sensor readout, and video recording loads.
- First-cycle conditioning on the NX30: Charge the cell fully inside the NX30 body before your first shoot. Some Samsung camera BMS implementations need one in-body charge cycle to calibrate the battery-remaining indicator correctly — skipping this can cause the display to read inaccurately for the first few cycles.
Battery percentage jumping erratically on the NX30 display
The NX30 maps its battery indicator against a voltage-threshold table built around the OEM cell's discharge curve. A replacement cell with a slightly different mid-range voltage slope can cause the indicator to skip steps or jump — for example, dropping from 60% to 20% without warning. This is a display calibration issue, not a capacity fault. Running one full charge-to-discharge cycle inside the camera body allows the BMS to re-map thresholds against the new cell's actual curve. After that cycle, the indicator typically stabilises.
NX30 showing dead battery indicator on a partially charged replacement cell
If the NX30 displays a depleted battery icon immediately after inserting a new cell, the BMS is reading the resting voltage as below its acceptance threshold. This happens when a replacement cell ships in a partial-discharge storage state and the camera interprets that lower resting voltage as a dead pack. Remove the cell, charge it to full via the OEM charger or a compatible third-party charger, then reinsert. The camera should recognise the cell once its resting voltage sits at or above 8.1V.
