About this replacement

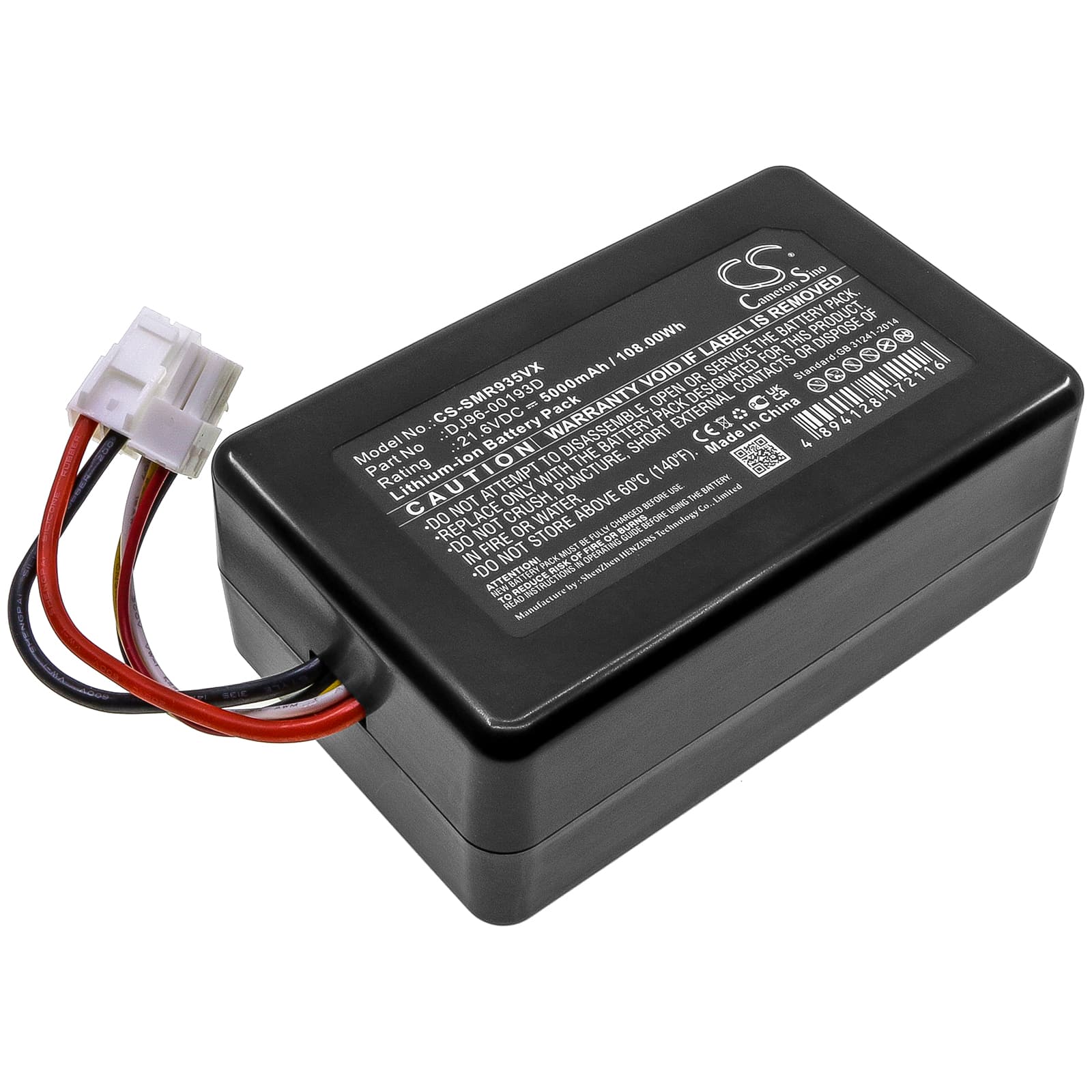

Samsung PowerBot R9350 — 21.6V Li-ion Replacement Battery (DJ96-00193D)
This 21.6V, 5000mAh (108Wh) Li-ion battery replaces the original DJ96-00193D pack in the Samsung PowerBot robotic vacuum. It fits the R9350, R9250, VR2AK9350WK/AA, and SR20K9350WK models. Swap it in when the original pack no longer holds a charge or the robot stops completing cleaning cycles.
- R9350 and R9250 series compatibility: These models share the same 21.6V battery bay, connector pinout, and BMS handshake protocol. The R9350 and R9250 are functionally the same platform under different market designations, so one battery cell services both without modification.
- Bench tested on actual hardware: We cycled this battery through the PowerBot's charge and discharge routine. The BMS communicated correctly with the robot's onboard controller — charge acceptance, low-voltage cutoff, and thermal monitoring all behaved within spec.
- Dock charging discipline for the PowerBot: The PowerBot automatically returns to its dock after every run, which means the battery sits on trickle charge for hours between cycles. Remove the robot from the dock after the charge indicator shows full. Continuous dock connection accelerates cell degradation faster than normal discharge cycling.
Suction dropping before the battery indicator reaches low
This is not always a battery fault. The PowerBot's motor draws harder under restricted airflow — a partially clogged filter raises current draw above the BMS's steady-state threshold. The BMS interprets this as abnormal load and begins throttling motor voltage before the cell is actually depleted. Clean the filter first. If suction stabilises at full draw after that, the battery is not the cause.
Motor cuts out mid-cycle then recovers after a short pause
This pattern is a BMS overcurrent trip, not a dead battery. Sustained restricted suction — brush roll tangle, blocked inlet, or a saturated filter — causes the motor to spike current beyond the pack's continuous output rating. The BMS disconnects to protect the cells, then resets once temperature and current normalise. Clear the obstruction, confirm airflow is unrestricted, and verify the brush roll spins freely. If the cutout stops after that, the battery and BMS are functioning correctly.
