About this replacement

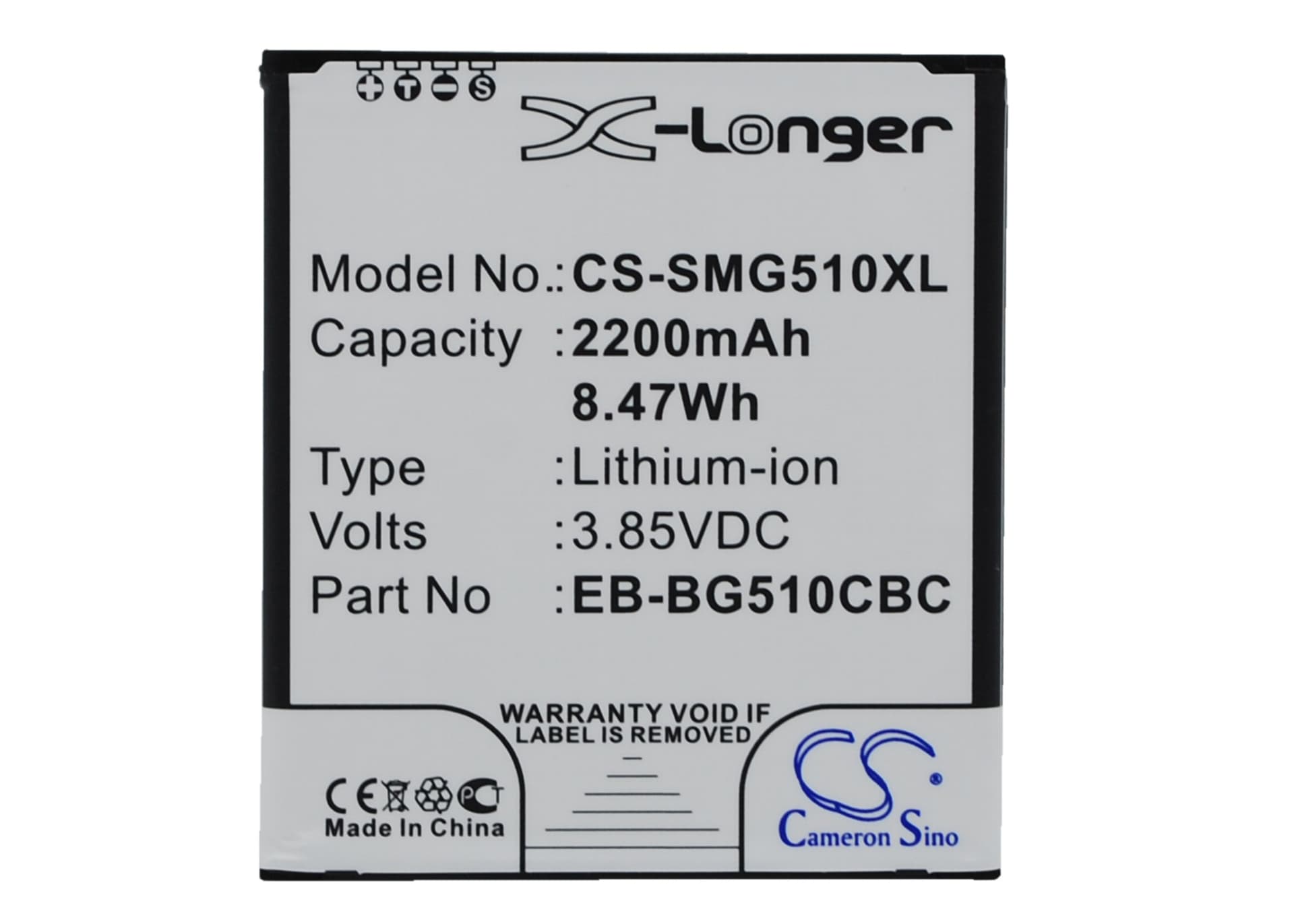

Samsung Galaxy Core Max SM-G510F — 3.85V Li-ion Replacement Battery (EB-BG510CBC)
This is a 3.85V, 2200mAh Li-ion replacement battery for the Samsung Galaxy Grand Prime and Core Max series, including SM-G510F, SM-G5108, and SM-G5108Q. It matches the OEM part number EB-BG510CBC and fits the original battery bay without modification. Capacity is 8.47Wh — identical to the factory spec.
- SM-G510F / SM-G5108 / SM-G5108Q platform: These models share the same 3.85V battery rail, connector pinout, and BMS handshake protocol. One cell fits all listed variants without adapter or rewiring.
- Bench tested on actual hardware: We ran this cell on the SM-G510F platform and confirmed BMS communication, charge acceptance across the full 4.35V cutoff, and stable voltage delivery under simultaneous LTE and screen load.
- Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one full discharge-to-charge cycle. The fuel gauge IC on this platform calibrates its coulomb counter against the new cell's discharge curve — skipping this step causes the percentage readout to drift by up to 15% until recalibration completes.
Sudden shutdown at 20–30% on the SM-G510F after a cell swap
This is a voltage cliff issue, not a capacity problem. Under modem or display load, a new cell not yet profiled by the fuel gauge IC can drop below the BMS cutoff threshold — around 3.2V — faster than the reported percentage suggests. The phone interprets this as a hard fault and cuts power even though the gauge still reads 20–30%. One full slow discharge-to-charge cycle lets the fuel gauge map the actual discharge curve of the new cell, after which shutdown behaviour normalises.
Device not powering on after the replacement battery sat in storage
Li-ion cells self-discharge during storage, and if the voltage drops below approximately 2.5V per cell, the BMS enters a lockout state to prevent damage. The phone will show no response to the power button and no charge indicator on the screen. Connect the device to a wall charger — not a PC USB port — and leave it for 15–20 minutes before attempting to power on. Wall chargers deliver enough pre-charge current to wake the BMS; PC USB ports often cannot.
