About this replacement

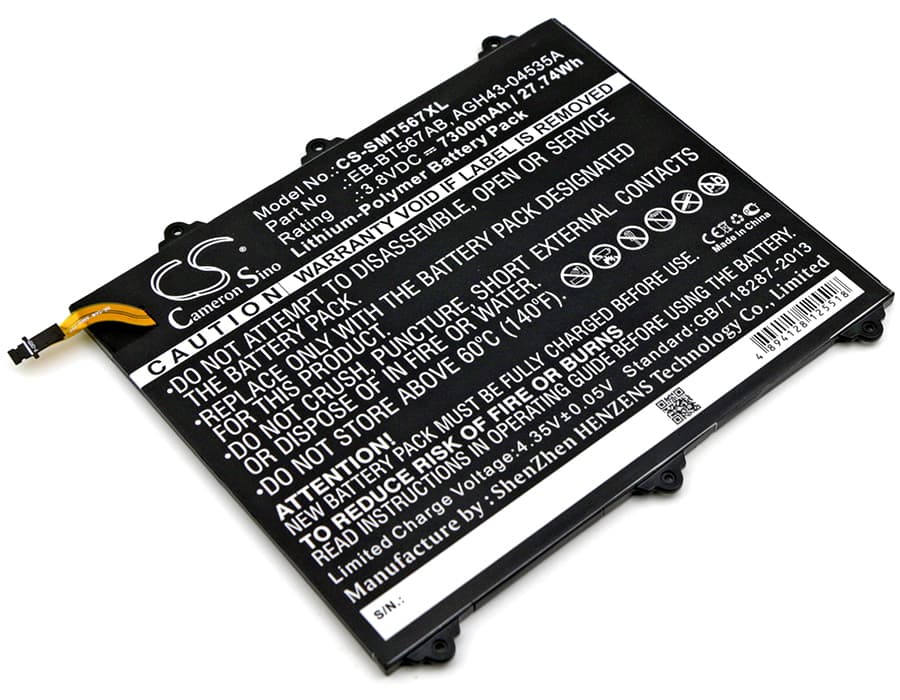

Samsung Galaxy Tab E 9.6 — 3.8V Li-Polymer Replacement Battery (EB-BT567ABA)
This 3.8V, 7300mAh Li-Polymer battery replaces the OEM EB-BT567ABA cell in the Samsung Galaxy Tab E 9.6. It fits SM-T567, SM-T567V, SM-T560NU, and the Galaxy Tab E 9.6 XLTE. Capacity and voltage match the factory specification exactly.
- SM-T567 and SM-T560NU compatibility: These variants share the same 3.8V battery rail, connector footprint, and charge IC handshake. One cell fits all listed models without modification to the connector or housing tabs.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on an SM-T567V. The BMS held charge termination correctly at 4.35V and triggered low-voltage cutoff at the expected threshold without early shutdown or overcharge fault codes.
- Fuel gauge recalibration after swap: After installing this battery, run the tablet down to automatic shutoff — do not force-stop it — then charge uninterrupted to 100%. This single full cycle resets the fuel gauge IC against the new cell's actual capacity curve and clears the inaccurate percentage readings that appear immediately after a swap.
Galaxy Tab E 9.6 shutting down at 15–25% remaining
This shutdown pattern is a voltage cliff, not a capacity failure. Under combined screen-on plus WiFi load, the cell voltage drops sharply below what the fuel gauge predicted. The system reads the voltage drop as critical and triggers an emergency cutoff before the displayed percentage reaches zero. One full discharge-to-shutoff followed by an uninterrupted charge to 100% resets the fuel gauge map and eliminates the premature shutdown in most cases. If it persists after two calibration cycles, check that the battery connector is fully seated — a partially engaged connector increases resistance and amplifies the voltage sag under load.
Fast charging not available after battery replacement on SM-T567
The Tab E 9.6 uses Samsung's Adaptive Fast Charging protocol, which requires the charge IC to complete a full accepted charge cycle before the negotiation handshake is stored. Immediately after a swap, the device may fall back to standard 5W charging. Plug in the original Samsung charger — not a third-party cable — and allow one complete charge to 100% without interruption. After that cycle, fast charge availability restores and the negotiation behaves normally on subsequent charges.
