About this replacement

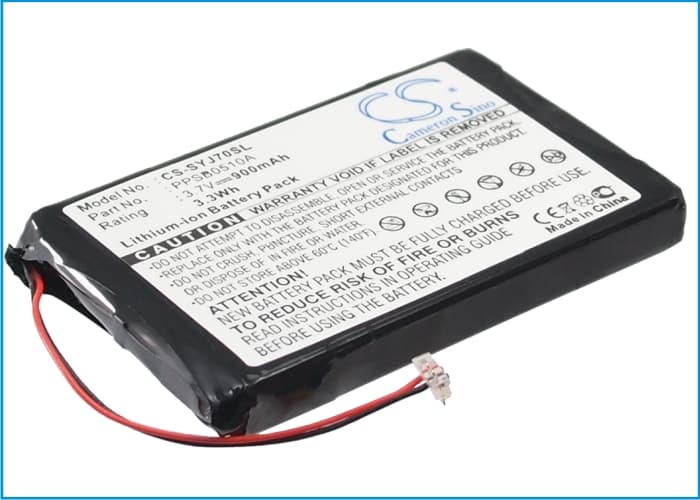

Samsung YH-J70 Series — 3.7V Li-ion Replacement Battery (PPSB0510A)
This is a 3.7V 900mAh Li-ion replacement battery for the Samsung YH-J70 portable digital media player. It fits the YH-J70, YH-J70JLB, YH-J70JLW, and YH-J70LW. OEM part numbers covered include PPSB0510A, PPSB0503, and 4302-001186.
- YH-J70 variant coverage: The JLB, JLW, and LW variants share the same battery bay geometry, connector pinout, and 3.7V power rail. One cell fits all four models without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the YH-J70 platform. The BMS handshake completed correctly, the device recognised the cell at first boot, and charge termination triggered cleanly at full capacity.
- First charge after storage: If the player has been sitting unused for months, connect it to the charger and leave it for at least 30 minutes before attempting to power on. The YH-J70 enters a deep-discharge protection state that requires slow trickle current to lift the cell voltage above the wake threshold before normal charging begins.
Battery percentage jumping after cell swap on the YH-J70
After fitting a new cell, the on-screen battery indicator often reads 100% immediately, then drops sharply within minutes, or bounces between levels. The YH-J70 uses a voltage-threshold method to estimate charge state — it maps resting cell voltage to percentage brackets rather than tracking current flow. A fresh cell that hasn't been through a full charge-discharge cycle doesn't yet sit at the voltage points the firmware expects at each bracket. Run two full charge and discharge cycles and the indicator will stabilise to within a few percentage points of actual charge state.
Playback cutting out before the battery indicator shows empty
This happens at the low end of the discharge curve, typically when cell voltage drops below 3.4V under audio amplifier load. The amplifier draws a short current spike during playback that causes a brief voltage sag — enough to trip the BMS undervoltage cutoff even though the indicator still shows a charge remaining. The fix is a full charge cycle on the new cell so the BMS learns the actual low-voltage floor. If cutouts persist, check that the battery connector is seated flat — a partial connection increases resistance and worsens voltage sag under load.
