About this replacement

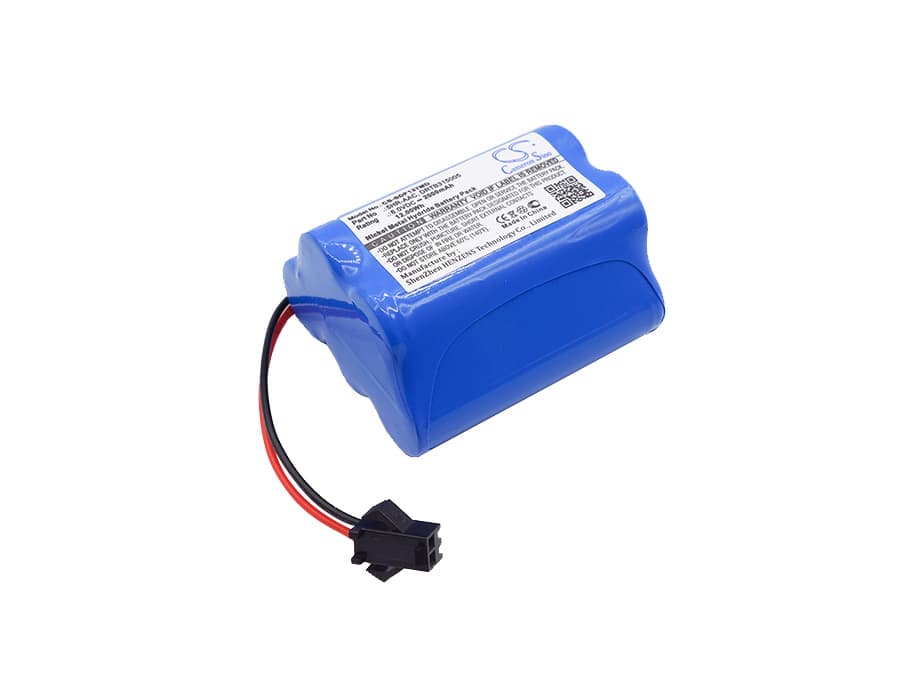

Sanyo MDF-137 / MDF-U Series — 6V Ni-MH Replacement Battery (5HR-AAC)
This is a 6V, 2000mAh Ni-MH replacement battery for the Sanyo MDF-137 and MDF-U series medical freezers. It fits the MDF-137, MDF-U333, MDF-U537, and MDF-U537D among compatible models. These freezers use this battery for backup power during transport and brief mains interruptions to protect biological samples and temperature-sensitive materials.
- MDF-137 and MDF-U series compatibility: These models share the same 6V backup battery rail, connector housing, and BMS handshake protocol. The 5HR-AAC cell arrangement matches the OEM footprint — 51.00 x 43.60 x 27.40mm — so it seats without modification.
- Bench tested on actual hardware: We ran charge-discharge cycles through the MDF series BMS and confirmed cell recognition, correct charge termination, and stable voltage delivery under the freezer's standby load profile. The BMS accepted the new cell without fault flags after one full conditioning cycle.
- Post-installation self-test protocol: After fitting this battery, allow the freezer to complete its full power-on self-test without interruption. The MDF series BMS runs a timed verification sequence at startup. Cutting power during this window writes a battery fault that persists until the next clean boot cycle.
Why the MDF-U series BMS rejects a new Ni-MH cell on first install
The MDF series charge controller sets its acceptance threshold against a calibrated OEM cell state. A new Ni-MH cell arrives partially discharged from storage and presents a resting voltage below that threshold. The BMS interprets this as a degraded or incompatible cell and raises a fault flag rather than beginning charge. Running one full charge-discharge cycle through the device clears the flag and allows the controller to recalibrate against the new cell's actual capacity.
Low battery alarm triggering immediately after a confirmed full charge
A freshly charged Ni-MH cell can still trip the low battery alarm if the BMS has not yet completed its learn cycle. The alarm threshold is based on internal resistance measurement, not voltage alone — and a new cell's resistance profile differs from a conditioned one. The fix is to complete two full charge-discharge cycles before clinical use so the BMS can map the cell's actual impedance curve. After cycling, the alarm threshold recalibrates and a fully charged cell will read correctly at or above the 7.2V peak for a 6V Ni-MH pack.
