About this replacement

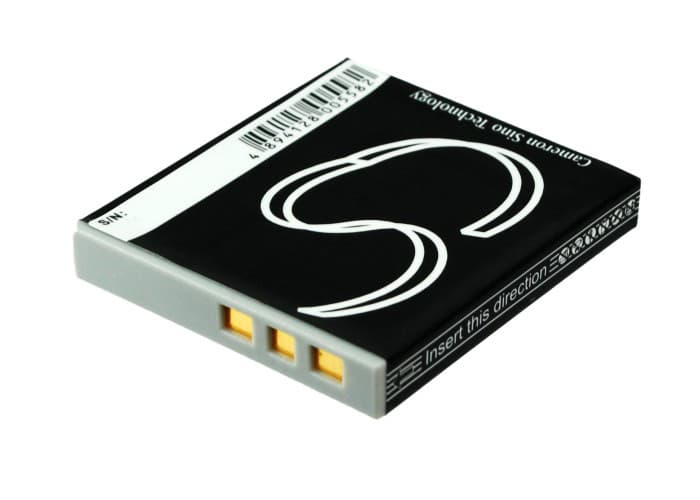

Sanyo Xacti VPC-E60 / DMX-C5 / DMX-CA8 — 3.7V Li-ion Replacement Battery (DB-L20)
This is a 3.7V, 700mAh Li-ion replacement cell for the Sanyo DB-L20 and DB-L20A battery. It fits the Xacti VPC-E60, DMX-C5(W), DMX-CA8, DMX-C4(N), and over 60 additional Xacti compact camcorder models. Voltage and form factor match the OEM spec exactly, including the 39.30 × 35.40 × 5.95mm footprint.
- Xacti DB-L20 platform fit: The VPC-E60 and DMX-Cx series share a common battery bay geometry and a single-cell 3.7V rail. All models using the DB-L20 or DB-L20A draw from the same connector pinout and BMS communication protocol, so one cell covers the entire range without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a DB-L20-compatible body. The BMS accepted the cell without fault codes, and voltage held stable through the mid-discharge range before stepping down to cutoff at the expected threshold.
- First-install charge cycle on Xacti bodies: Insert the new cell and charge it fully via the camera body or OEM charger before your first recording session. Some Xacti bodies map their battery-remaining indicator against a learned discharge curve — skipping this step can cause the indicator to read erratically from the first use.
Why the Xacti VPC-E60 shows a dead-battery icon on a new, partially charged cell
The VPC-E60 reads battery state by comparing real-time cell voltage against a fixed threshold table stored in the body firmware. A new replacement cell arriving at around 3.5–3.6V — typical storage charge — can sit right at the edge of the camera's low-battery threshold. The body sees that voltage and throws a low-battery or dead-battery indicator before the cell has been calibrated. Charging the cell fully once via the camera body or an OEM-compatible charger pushes it to 4.2V and lets the firmware anchor its reference point correctly.
Battery percentage jumping erratically during Xacti playback or recording
This happens when the Xacti body's fuel-gauge algorithm tries to map the new cell's discharge curve against calibration data from a worn OEM cell. The voltage profile of a fresh Li-ion cell is flatter across mid-charge than a degraded original, so the indicator misreads state-of-charge and jumps. Running one full charge-to-cutoff cycle in the camera body lets the firmware re-anchor its voltage-to-percentage mapping. After that cycle, the percentage display should track steadily at normal recording draw.
