About this replacement

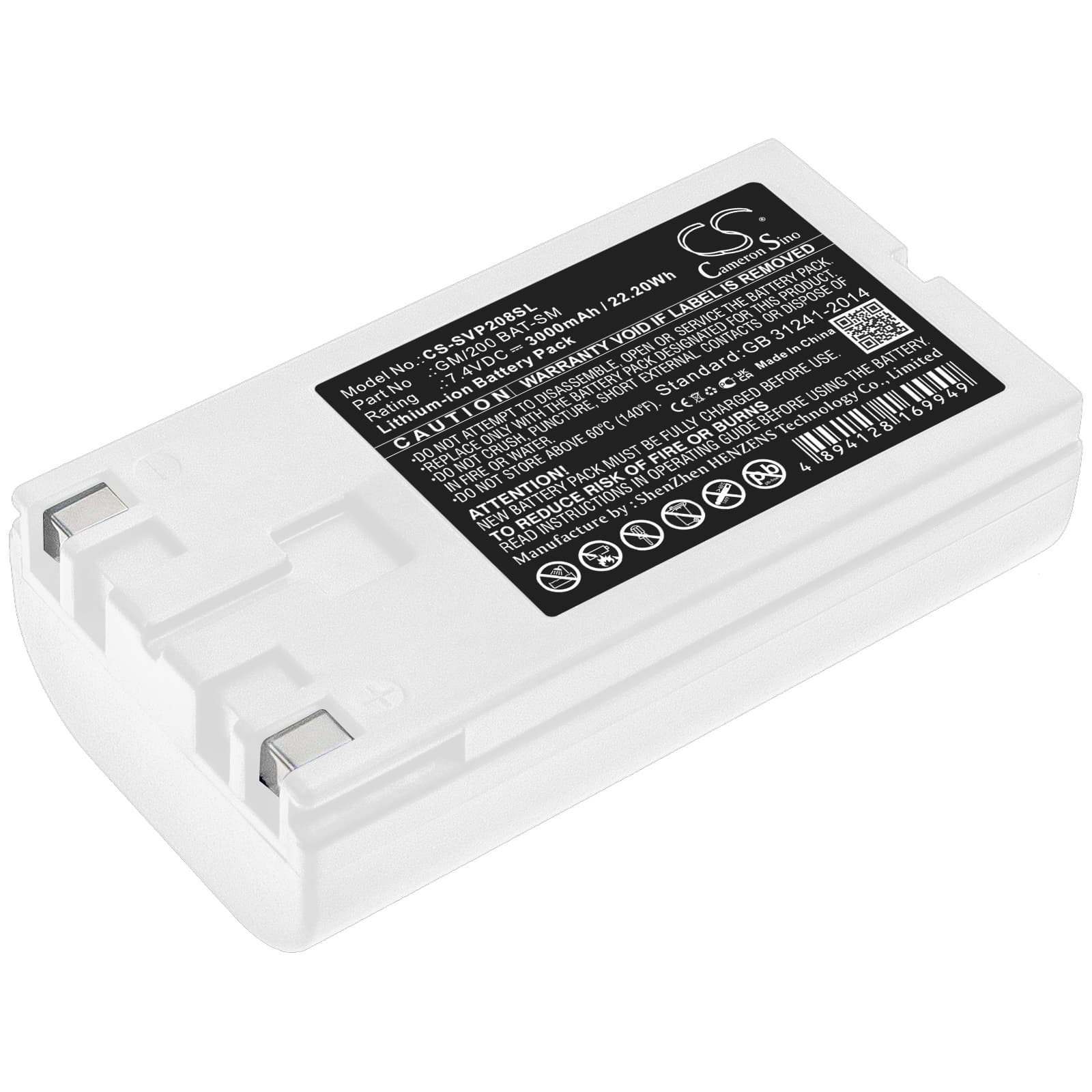

Sato VP208 — 7.4V Li-ion Replacement Battery (GM/200 BAT-SM)
This 7.4V, 3000mAh Li-ion battery replaces the OEM pack in the Sato VP208 mobile thermal printer. The VP208 is used for receipt and label printing in retail, logistics, and field service. This battery restores full mobile operation when the original cell no longer holds charge.
- VP208 fit: The VP208 uses a dedicated battery bay with a specific connector orientation and BMS handshake tied to the 7.4V nominal cell voltage. This replacement matches those electrical requirements exactly — the printer's motor drive circuit and thermal head both draw from this single rail.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge runs while monitoring BMS cutoff behaviour. The protection circuit responded correctly to both thermal head draw spikes and paper feed motor start current, with no spurious shutdowns across the test cycles.
- First-use print sequence: After installing this battery, charge it fully and print at least 5 test receipts before deploying to the field. The VP208's BMS establishes its current profile for the new cell during these initial draws — skipping this step can cause the printer to report low battery before the actual cell capacity is reached.
Why the VP208 paper feed jams at low charge
The VP208's paper feed motor is torque-sensitive. As cell voltage drops toward the BMS cutoff threshold, the motor receives less drive voltage and loses grip on the paper roller. This causes the paper to stall mid-feed rather than triggering a clean error. If you're seeing jams that clear when you plug into AC, the battery is the cause — charge the cell to full and retest before assuming a mechanical fault.
VP208 dropping Bluetooth connection mid-job
The VP208's wireless radio draws from the same 7.4V rail as the print head and feed motor. When the cell voltage sags under combined load, the radio module is first to lose stable power — it drops off before the printer shows a low-battery warning. This looks like a pairing fault or app issue but it's a voltage problem. Check the battery indicator under active printing load; if it reads below 7.0V, the cell needs replacing or charging before the next print run.
