About this replacement

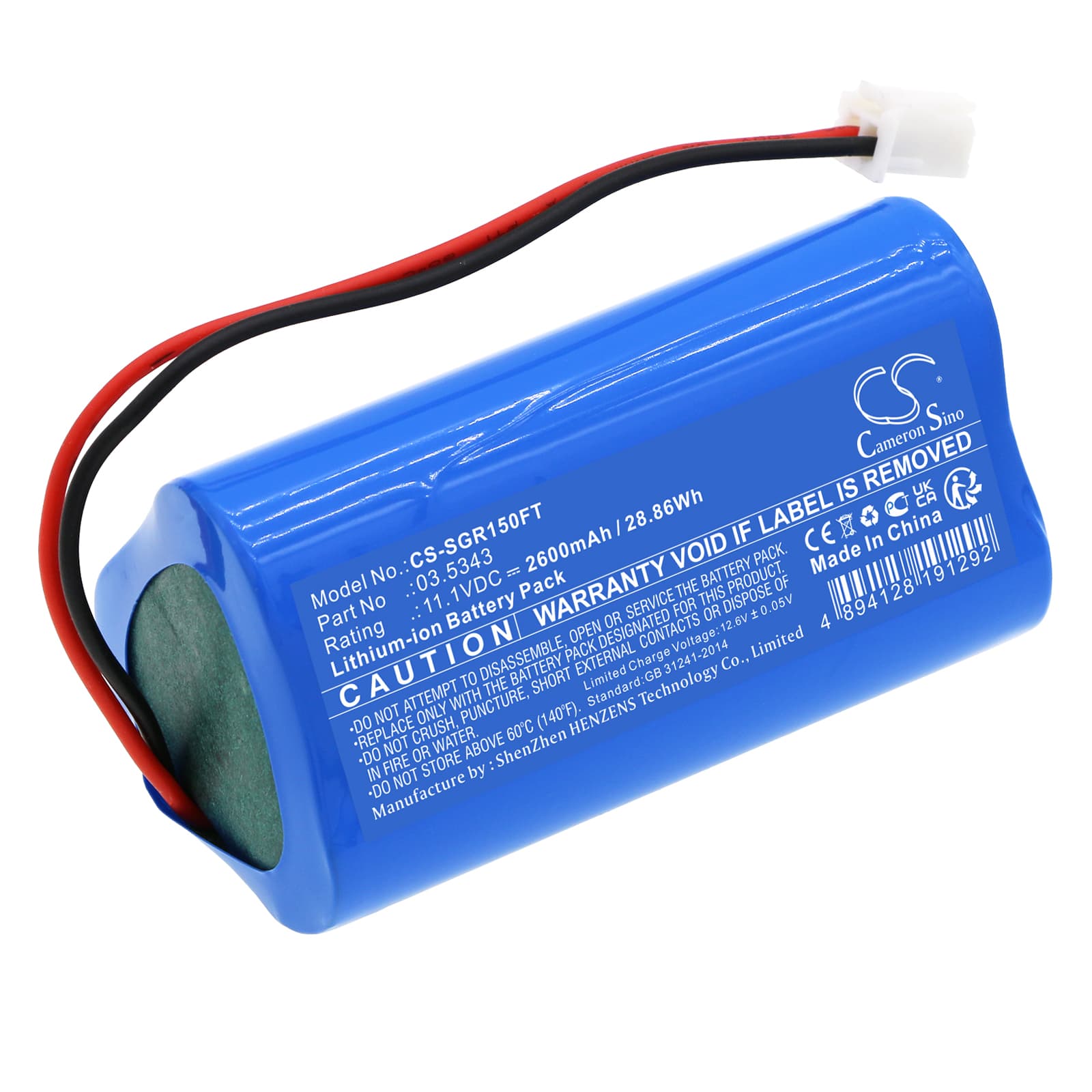

SCANGRIP VEGA 1500 C+R — 11.1V Li-ion Replacement Battery (03.5343)
This is an 11.1V, 2600mAh Li-ion battery for the SCANGRIP VEGA 1500 C+R work light. It fits model 03.5451 and is a direct swap for OEM part 03.5343. The VEGA 1500 C+R is a rechargeable inspection flashlight used in automotive bays, workshops, and low-light maintenance environments.
- VEGA 1500 C+R platform fit: The VEGA 1500 C+R uses a three-cell 11.1V Li-ion pack with a specific BMS handshake that governs both charging via USB-C and output regulation across lumen modes. This pack matches the voltage rail and connector pinout that the driver circuit expects.
- Bench tested on actual hardware: We cycled this pack on the VEGA 1500 C+R driver board across all output modes. The BMS held stable cutoff thresholds on both charge input and high-draw discharge, with no spurious low-voltage trips during turbo output.
- Multi-cell replacement rule: The VEGA 1500 C+R draws hard in turbo mode. Mixing a new pack with partially degraded cells from another unit accelerates imbalance — the weaker cells deplete first and get driven below safe voltage under load. Always replace the full pack in one go, not cell by cell.
Why the VEGA 1500 C+R steps down output before the indicator shows low
The VEGA 1500 C+R's driver circuit monitors cell voltage continuously, not just average pack voltage. When any cell drops toward 3.2V under load, the driver steps down lumen output to protect the cells — even if the LED indicator still shows a charge remaining. This is intentional brownout protection built into the driver, not a fault. If the light dims noticeably in turbo before the indicator blinks, the pack is at the edge of its usable range. Switching to a lower output mode at that point draws less current and keeps voltage above the cutoff threshold.
Battery showing full charge but turbo mode collapses almost immediately
Turbo mode on the VEGA 1500 C+R draws significantly more current than standard or low modes. An aged or degraded Li-ion pack loses internal resistance tolerance — it reads full at rest but voltage sags sharply the moment high current is pulled. The driver interprets that voltage sag as a low-cell event and steps down or cuts out to protect the pack. Test resting voltage after a full charge: a healthy cell should read at or above 4.1V. If resting voltage is below 4.0V per cell after a full charge cycle, the pack has degraded and needs replacement.
