About this replacement

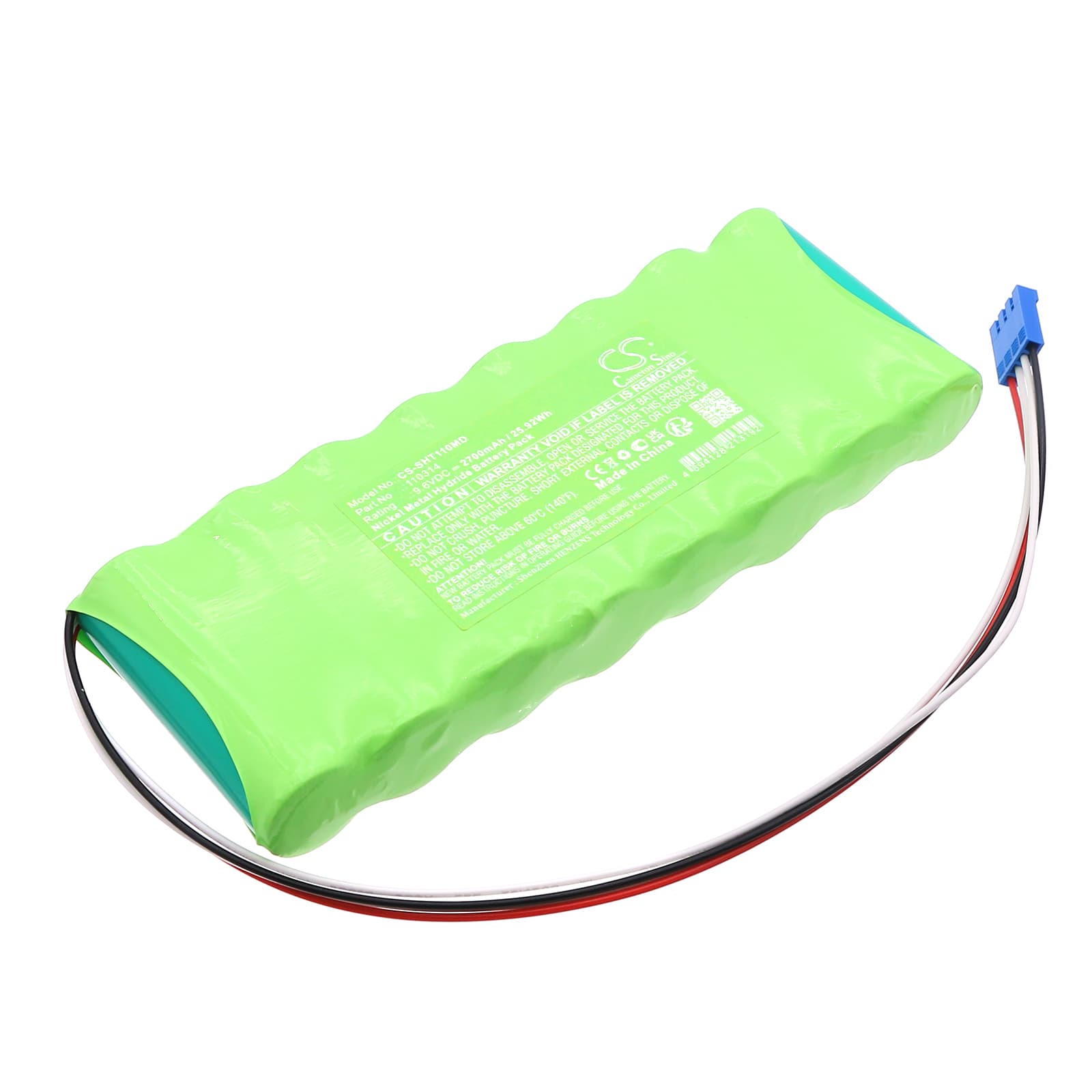

Schiller AT-10 Plus EKG Machine — 9.6V Ni-MH Replacement Battery (110314)
This 9.6V, 2700mAh Ni-MH battery replaces the original power cell in the Schiller AT-10 Plus portable electrocardiograph. It fits the AT-10 Plus, AT10 Plus, and AT10+ variants used in clinical and emergency cardiac monitoring. Voltage and capacity match OEM spec — 9.6V, 2700mAh (25.92Wh).
- AT-10 Plus platform fit: The AT-10 Plus family shares a common battery bay, BMS connector pinout, and charge handshake across its variant names. The 9.6V rail and Ni-MH chemistry are fixed requirements — swapping to a different voltage or chemistry will trigger a BMS fault and prevent boot.
- Bench tested on actual hardware: We cycled this cell through charge and load on the AT-10 Plus platform. The BMS completed its verification sequence without fault codes, and the charge indicator advanced normally through all stages on the first full cycle.
- Post-swap self-test protocol: After installing this battery, let the AT-10 Plus complete its full power-on self-test without interruption. The device runs a BMS verification routine at startup — cutting power during this sequence logs a false battery fault that persists until the next clean reboot.
Low battery alarm triggering immediately after a confirmed full charge
The AT-10 Plus BMS calibrates its low-battery threshold against OEM cell characteristics. A new Ni-MH cell has a slightly different internal resistance profile than a worn original, so the BMS can read voltage under load as lower than actual state of charge. This typically clears after one complete charge-discharge cycle, which lets the BMS recalibrate its threshold to the new cell. Run one full cycle before relying on the battery indicator for clinical decisions.
AT-10 Plus will not power on after the replacement cell sat in storage
Ni-MH cells self-discharge during storage, and the AT-10 Plus BMS has a minimum recovery threshold — typically around 8.5V for a 9.6V pack — below which it blocks power-on to protect the cells. If the device shows no response, place it on charge for at least 30 minutes before attempting to power on. This allows the charge IC to bring individual cells above the BMS recovery floor. Once the charge indicator activates, the device will boot normally.
