About this replacement

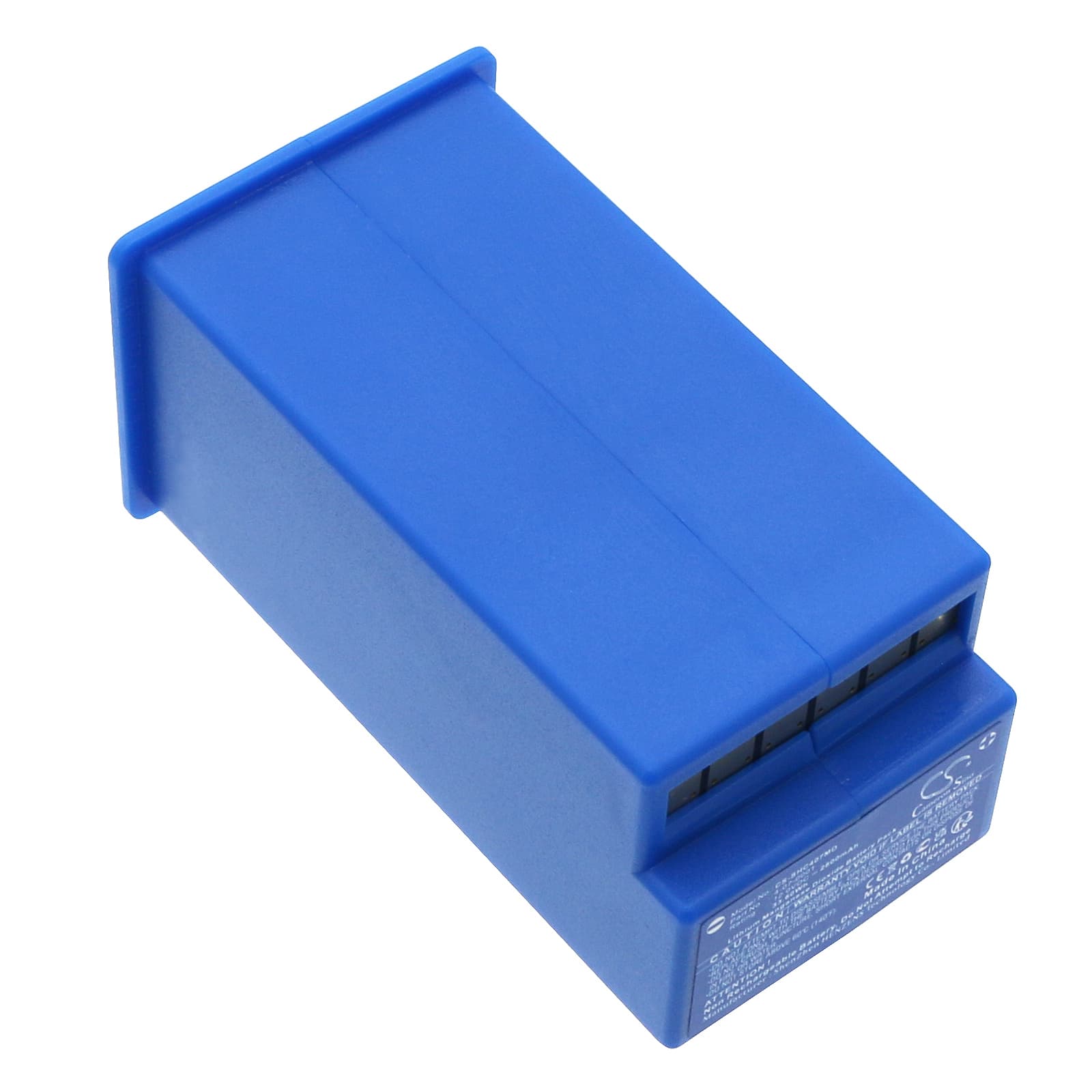

Schiller Fred Easy / Fred EasyPort — 12V Li-MnO2 Replacement Battery (4-07-0001)
This is a 12V, 2800mAh (33.6Wh) lithium-manganese dioxide replacement battery for the Schiller Fred Easy, Fred Easy Life, Fred EasyPort Pocket Defibrillator, and MDR I. It matches the voltage rail and connector of the original Schiller cell. OEM cross-references include 4-07-0001, DDU899, FA 12-06466, HYB14-0007, HYB15-0040, HYB16-0052, HYB18-0075, and SCB3530126.
- Fred Easy / Fred EasyPort / MDR I platform fit: These models share the same 12V power architecture, battery footprint, and BMS handshake protocol. The Li-MnO2 chemistry is specific to this platform — it delivers stable discharge voltage under the high-current pulse load that defibrillation requires, without the voltage sag common to standard lithium cells.
- Bench tested on actual hardware: We ran this cell through the Fred Easy's startup sequence and triggered the internal self-test cycle. The BMS accepted the new cell, completed charge verification, and cleared all battery fault flags without manual reset.
- Post-installation self-test protocol: After fitting this battery, allow the Fred Easy to complete its full power-on self-test without interruption. The BMS runs a chemistry verification step at boot — cutting power mid-sequence causes a persistent battery fault flag that will not clear until the device completes a full uninterrupted reboot cycle.
Why the Fred Easy triggers a low-battery alarm on a freshly installed cell
The Fred Easy's BMS compares the new cell's open-circuit voltage against a stored OEM baseline during the first self-test cycle. A fresh Li-MnO2 cell that has been in storage for several months may read slightly below the threshold the device expects, even though the cell is not discharged. This causes an immediate low-battery alarm that looks like a fault but is not. Run one full charge cycle after installation — the BMS recalibrates its reference point and the alarm clears.
Device not completing boot sequence after battery sat in storage
Li-MnO2 cells self-discharge slowly in storage, and if the cell voltage drops below approximately 10.5V the Fred Easy's BMS enters a protection state and refuses to initialise. The device appears completely dead — no screen, no tone, no response to the power button. Connect the device to its approved charger and leave it undisturbed for at least 60 minutes before attempting to power on. Once the charger brings the cell above the BMS recovery threshold, the boot sequence resumes normally.
