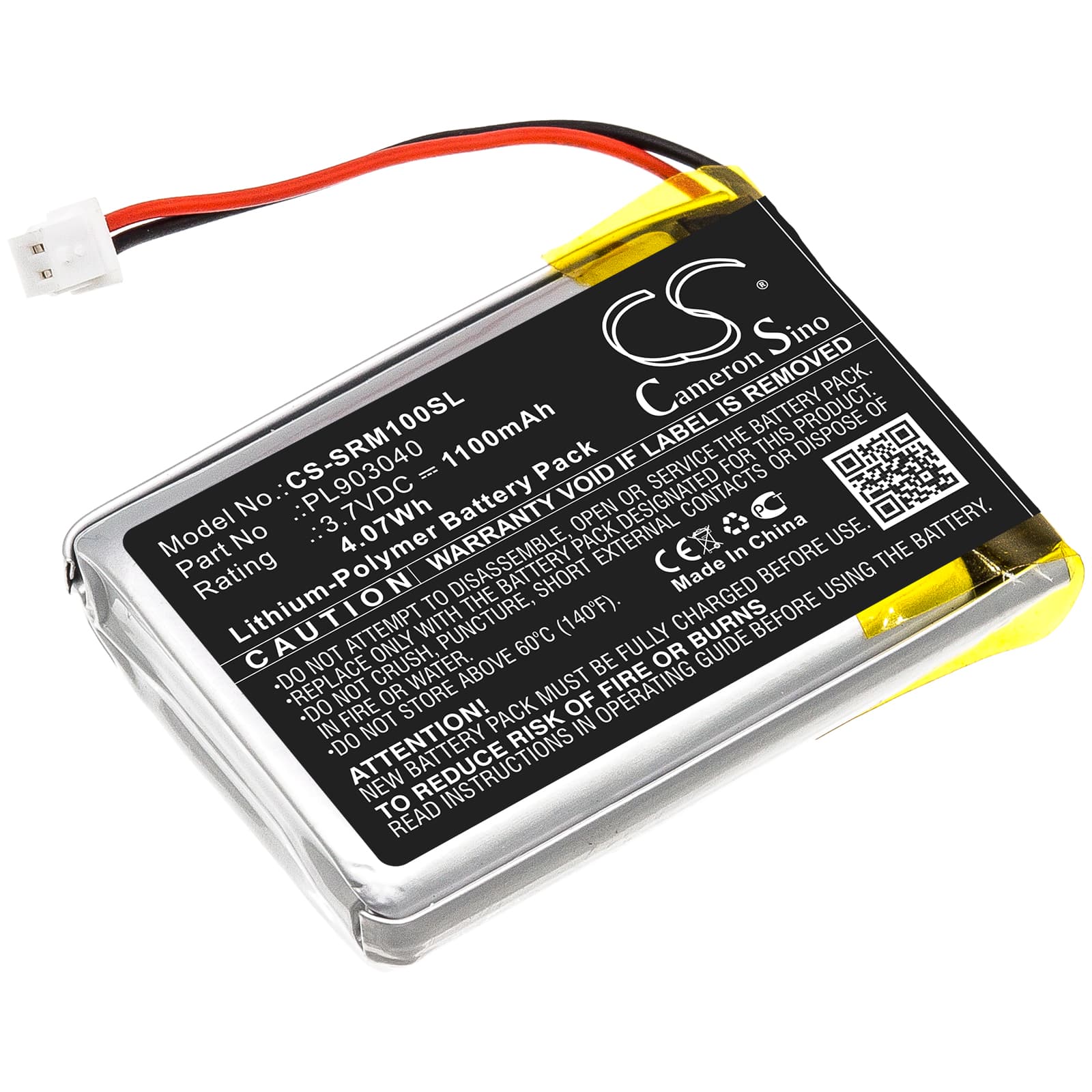

Schweizer LED Magnifier — 3.7V Li-Polymer Replacement Battery (PL903040)
This 3.7V 1100mAh lithium-polymer cell replaces the internal battery in the Schweizer LED Magnifier. It fits the cordless handheld unit used for low-vision assistance, jewellery inspection, and precision hobby work. Dimensions are 43.50 × 29.40 × 8.60mm — measure your existing cell before ordering.
- Schweizer LED Magnifier platform fit: The PL903040 cell format is matched to this magnifier's internal bay. The connector polarity and BMS handshake align with the device's charge management circuit, so the fuel gauge reads correctly after installation.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the bench. The BMS held the cutoff voltage at the correct threshold and the charge indicator responded normally throughout the test sequence.
- First-cycle brightness setting: Run the first full charge cycle at 50% screen brightness. High backlight draw on the initial cycle can skew the battery indicator calibration — it tends to report capacity inaccurately until the cell completes one clean cycle at moderate load.
Image colour shifting before the battery indicator shows low
The display driver in LED magnifiers is voltage-sensitive. As the cell depletes toward 3.5V, the backlight circuit starts to dim and colour balance shifts before the battery indicator triggers its low-battery warning. This happens because the indicator threshold is set lower than the point where display quality degrades. The screen is the first component to show the voltage drop — the battery meter is not. If colours look washed out or warm, check the cell voltage directly; it is likely near 3.5V.
Magnifier not charging after battery swap
Li-polymer cells can enter a deep-discharge protection state during storage or shipping. If the device shows no charge activity after fitting the new cell, the BMS may need a re-initialisation pulse. Connect the magnifier to its original charger — not a generic USB port — because the charging circuit requires a minimum input voltage to wake a deeply discharged cell. Hold the connection for at least five minutes before checking for a charge indicator response. A USB power bank or low-output port may not supply enough voltage to trigger the recovery sequence.
