About this replacement

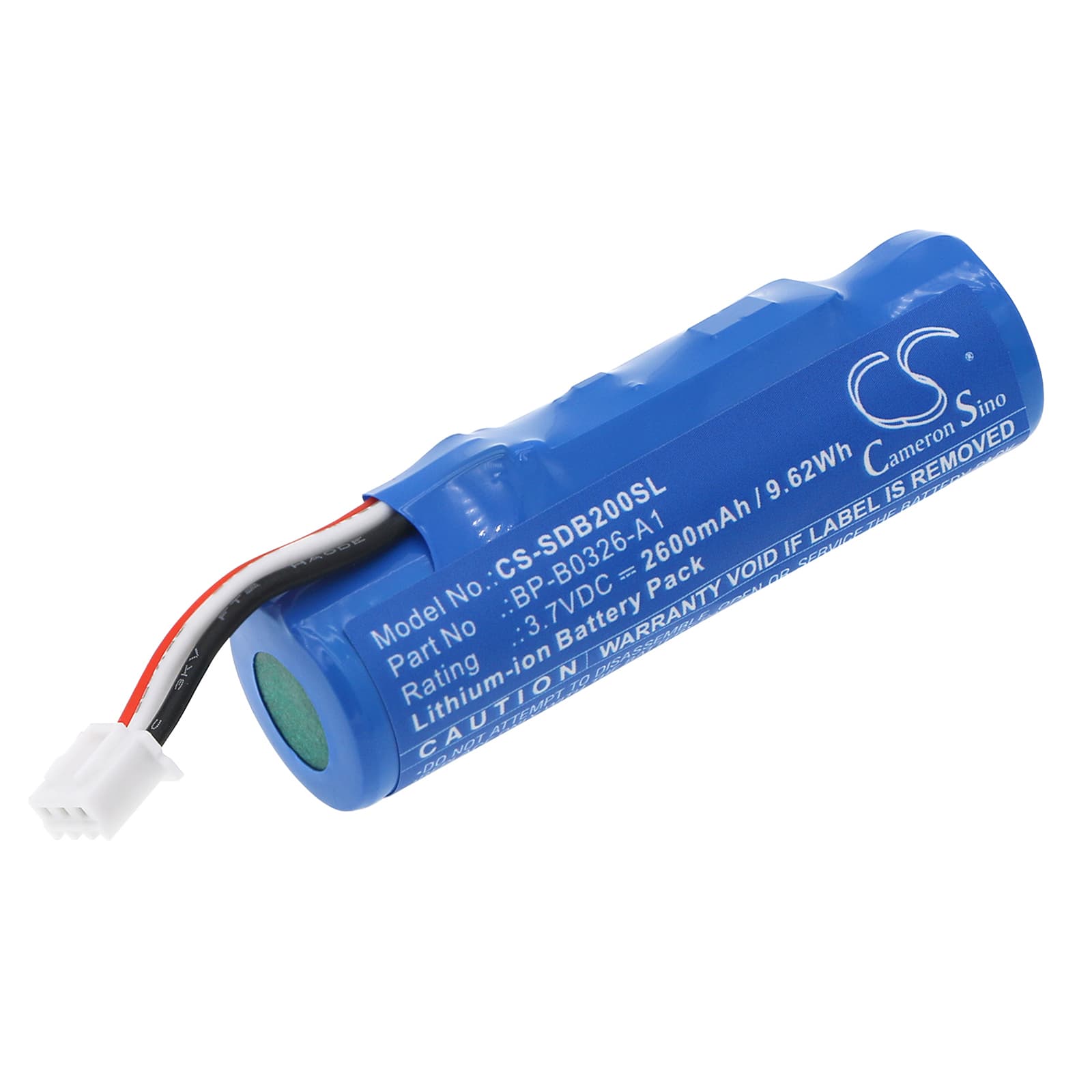

Seiko MP-B20 — 3.7V Li-ion Replacement Battery (IS496)
This is a 3.7V, 2600mAh Li-ion replacement battery for the Seiko MP-B20 portable printer. It replaces OEM part numbers IS496, BP-B0326-A1, BP-B0326-B1, and 4331304. When the original cell degrades, the printer loses the voltage headroom the thermal head and paper feed motor both need to function.
- MP-B20 compatibility: The MP-B20 uses a single-cell 3.7V Li-ion pack with a proprietary connector and a BMS that monitors cell temperature and discharge rate. This replacement matches that voltage rail, connector pinout, and BMS communication profile — the printer firmware recognises it without a recalibration prompt.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the MP-B20 platform. The BMS held low-voltage cutoff correctly, and the thermal head reached operating temperature without triggering an over-current shutdown on the initial draw spike.
- First-deploy print sequence: After installing and charging to full, run five consecutive test receipts before putting the unit into service. The paper feed motor draws a short burst current on each cycle — this sequence confirms the BMS current profile has settled correctly on the new cell and prevents false low-battery warnings during early deployment.
Why the MP-B20 thermal head underperforms on a degraded battery
The thermal print head in the MP-B20 requires a stable voltage to hold the heating element at the correct temperature across a full receipt. As a Li-ion cell ages, internal resistance rises — voltage sags mid-print, and the head temperature drops before the job completes. The result is a gradient across the receipt: dark at the start, faded toward the bottom. Replacing the cell restores the flat discharge curve the thermal head needs.
MP-B20 drops Bluetooth connection mid-print job
The MP-B20 Bluetooth radio and the paper feed motor share the same power bus. When the battery voltage falls below approximately 3.4V under load, the motor's current draw pulls the rail down enough to reset the radio stack. The printer drops the connection before the job finishes. This is not a pairing fault — it is a voltage sag issue. Charge the battery to full (4.2V) and retest; if the disconnects stop, the cell was the cause.
