About this replacement

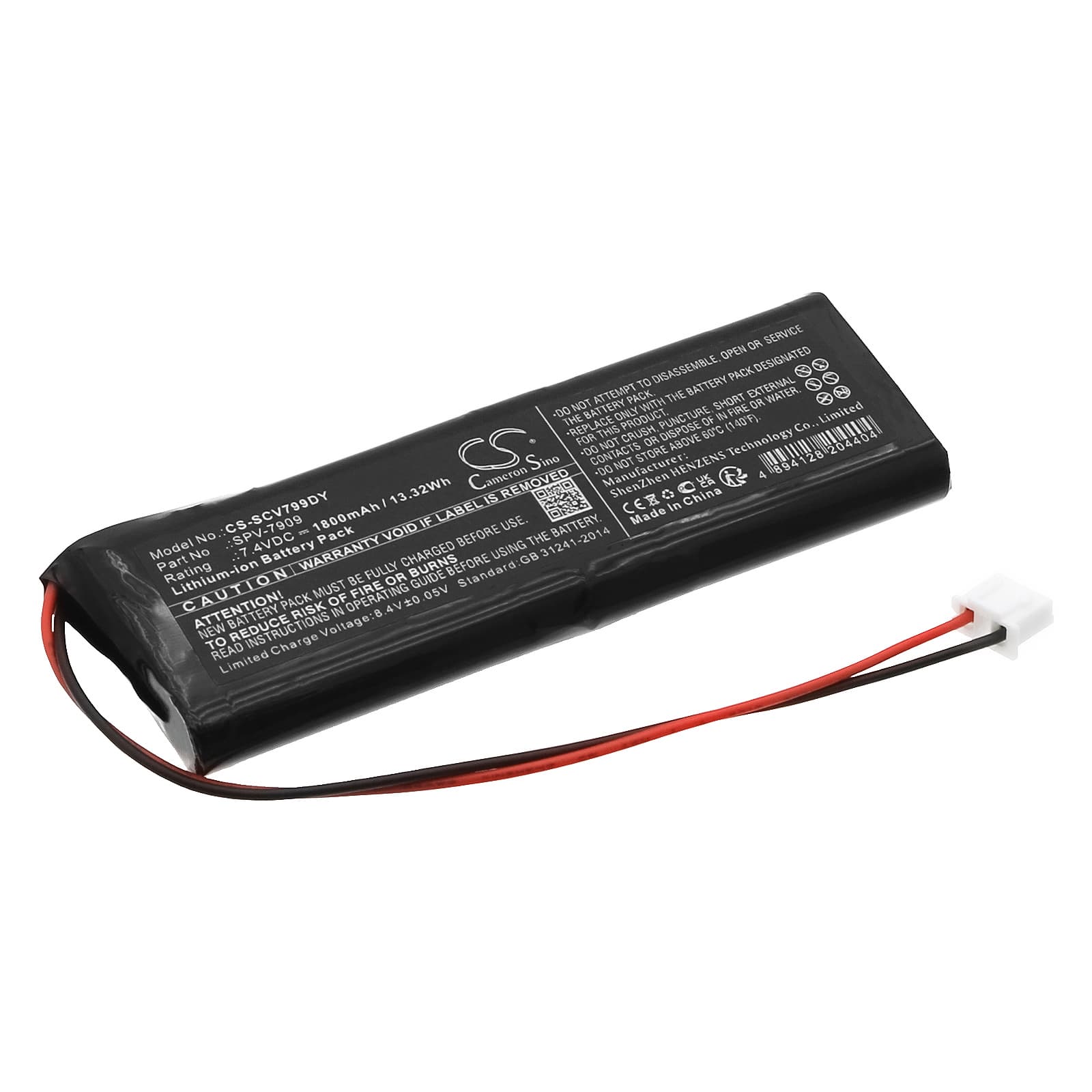

Sencor SPV7909 / SPV-7909T — 7.4V Li-ion Replacement Battery (SPV-7909)
This 7.4V, 1800mAh Li-ion battery replaces the original power cell in the Sencor SPV7909 and SPV-7909T portable DVD players. It restores cordless playback when the original battery no longer holds a usable charge. Capacity is 13.32Wh — identical to the factory specification.
- SPV7909 and SPV-7909T compatibility: Both models share the same 7.4V nominal voltage rail, identical physical connector, and the same BMS handshake protocol. One battery fits both without modification.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the SPV7909 platform. The BMS reported correct state-of-charge, and the protection circuit tripped at the expected low-voltage threshold without locking the pack.
- First-use charge cycle on a DVD player: Cells ship at storage voltage — typically 3.6–3.8V per cell. Plug the SPV7909 into AC power and charge fully before the first playback session. The disc motor and backlight together pull enough current that a partially charged cell will sag below the BMS cutoff threshold faster than expected.
Why the SPV7909 may not last a full movie on a new battery
The SPV7909 draws current from three simultaneous loads: the disc spin motor, the LCD backlight, and the decoding board. Peak draw happens at disc start-up, when the motor ramps to read speed. A cell that shipped at storage voltage and was never fully charged before use will hit the BMS low-voltage cutoff earlier than the rated capacity suggests. Always run a complete charge cycle before comparing playback duration against rated capacity.
Screen dimming mid-movie on the SPV7909
If the backlight visibly dims during playback without any setting change, the battery voltage has sagged below the display driver's stable operating range — usually around 6.8V under load. This is not a screen fault. The display driver reduces backlight power to keep the decoder board running as long as possible. Connect to AC power immediately and check that the battery reaches a resting voltage of 8.2–8.4V after a full charge before using it on battery again.
