About this replacement

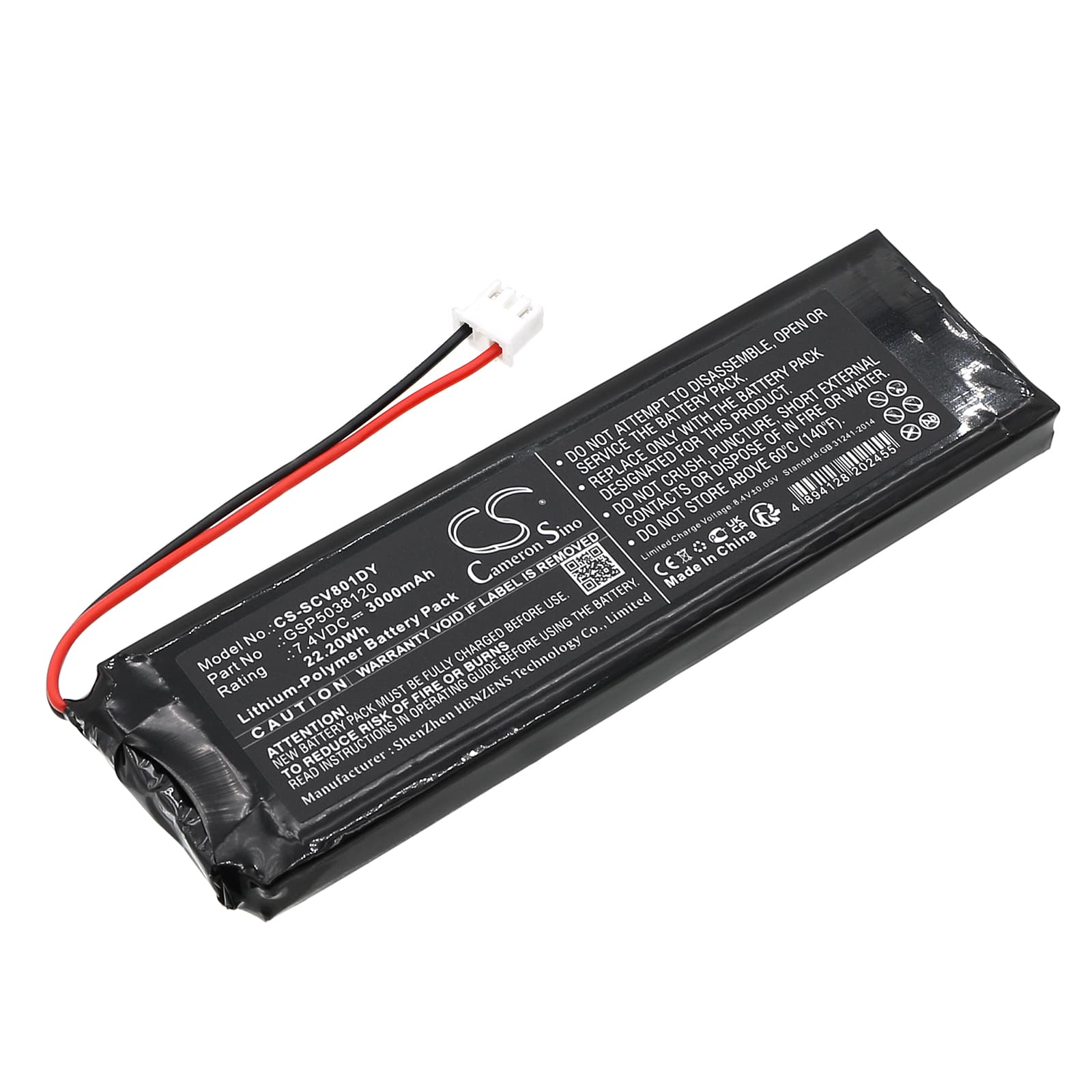

Sencor SPV8011T — 7.4V Li-Polymer Replacement Battery (GSP5038120)
This 7.4V 3000mAh Li-Polymer battery replaces part number GSP5038120 in the Sencor SPV8011T and SPV-8011T portable DVD players. It fits the slim battery bay of both model variants and connects to the original charging circuit without modification. Capacity is rated at 22.2Wh — matching the original cell specification.
- SPV8011T and SPV-8011T compatibility: Both model designations use the same battery bay dimensions, connector pinout, and BMS handshake. The 123.60 x 37.80 x 10.20mm cell profile fits without forcing, and the protection circuit communicates charge state to the player's onboard firmware correctly.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the SPV8011T platform. The BMS held cutoff cleanly at low-voltage threshold and the player's charging LED responded correctly at each stage — no false full-charge flags.
- First-use charge protocol for the SPV8011T: Li-Polymer cells ship at storage voltage — typically around 3.7V per cell. Plug the player into mains power before first use and allow a complete charge cycle to finish. Starting playback from storage voltage puts the disc motor under strain during spin-up when cell voltage is already low.
Disc not spinning on the SPV8011T after battery swap
The disc motor on the SPV8011T draws a short but sharp current spike at startup — significantly higher than the steady-state draw during playback. If the replacement cell arrives at storage voltage and you load a disc immediately, available cell voltage may drop below the motor controller's minimum threshold during that spin-up surge. The player responds by stopping the disc or showing a read error rather than a low-battery warning. Charge the battery fully before first use — the cell needs to be above approximately 8.0V combined pack voltage before the motor controller will sustain spin-up reliably.
Screen dimming mid-movie on new battery
The SPV8011T display driver monitors pack voltage and reduces backlight brightness when voltage sags under combined disc and display load. This can happen even with a new cell if the player is also charging simultaneously — charging current plus disc motor plus backlight is the highest draw state the battery sees. Avoid running the player on battery while connected to the charger once the cell is at partial charge. If dimming appears during normal playback only, check that the replacement cell is making firm contact in the bay — a loose fit causes voltage sag at the connector rather than inside the cell itself.
