Sennheiser HDE2020-II — 3.7V Li-Polymer Replacement Battery (AHB534403)

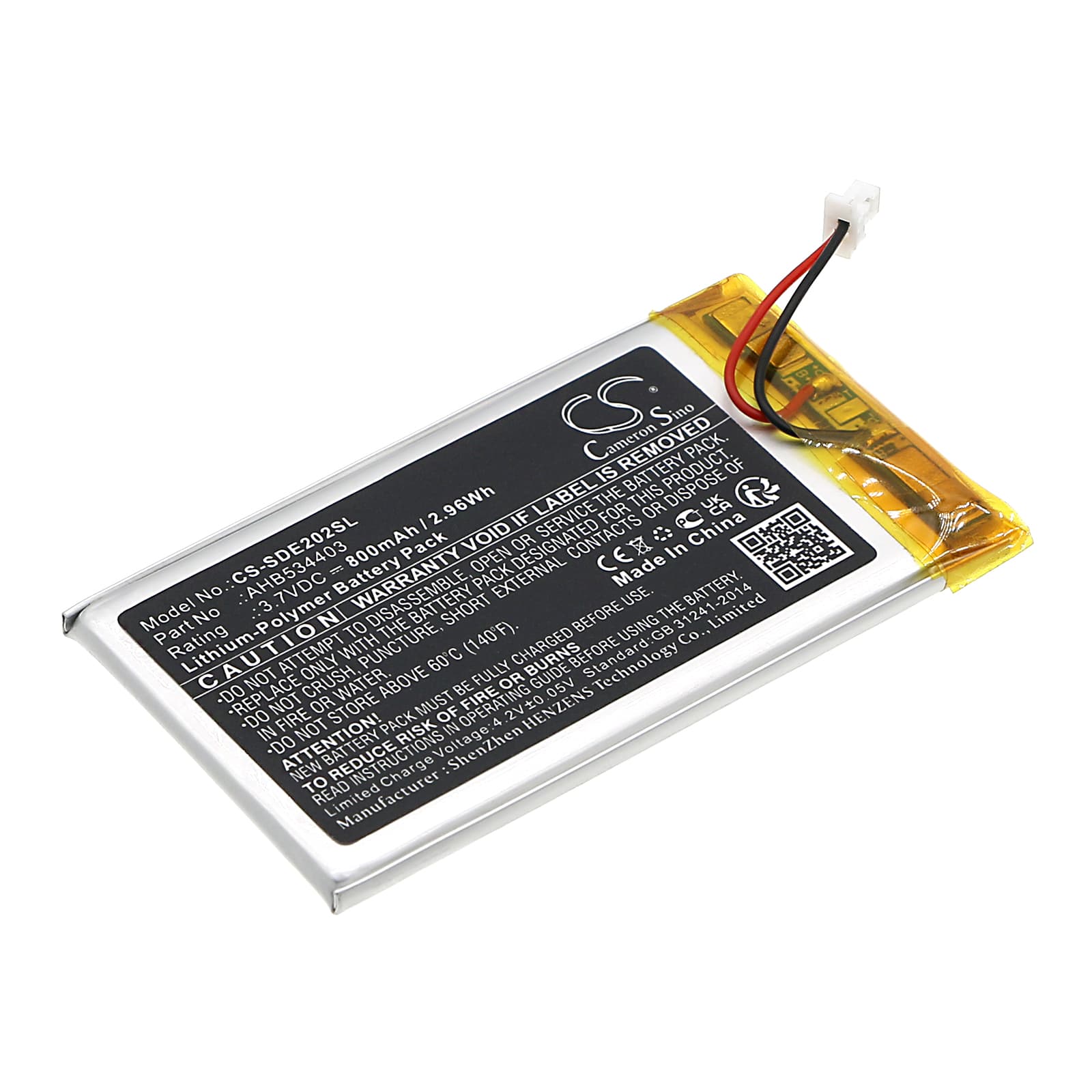

This is a 3.7V, 800mAh Li-Polymer battery for the Sennheiser HDE2020-II wireless transmitter and receiver system. It replaces OEM part AHB534403 and fits the HDE 2020-II, HDE 2020-D, and HDE 2020-D II units. Slim cell dimensions of 63.10 × 35.00 × 4.20mm match the original housing exactly.
- HDE 2020 series compatibility: The HDE 2020-II, HDE 2020-D, and HDE 2020-D II share the same battery bay geometry, connector pinout, and 3.7V nominal rail. All three variants draw from the same BMS handshake protocol, so one cell covers the full model range without modification.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the HDE 2020-II transmitter. The BMS accepted the pack without fault codes, balanced correctly at 4.2V peak, and held cutoff at the expected low-voltage threshold without triggering premature shutdown.
- Transmitter contact maintenance: The HDE 2020-II battery contacts are exposed gold pads — not spring-loaded pins. If the transmitter starts reporting low battery on a fresh pack, inspect the contacts for oxidation or debris. A light wipe with isopropyl alcohol restores conductivity before swapping cells.
Transmitter dropping signal mid-broadcast on a new battery
The HDE 2020-II combines RF transmission and DSP processing on a single power rail. Under peak load — high RF output plus active DSP — current draw spikes sharply. A degraded or undersized cell can sag below the BMS cutoff threshold during those spikes, triggering an abrupt shutdown that looks like signal loss at the receiver. This cell is rated at 800mAh with a low internal resistance profile that keeps voltage sag within acceptable limits during combined transmit and DSP draw. If dropouts persist after fitting a fresh cell, check that the battery contacts are fully seated and reading above 3.6V under load.
Receiver not syncing after the transmitter battery is swapped
Some HDE 2020 series units lose their RF pairing when the transmitter fully powers down — a battery swap counts as a hard power cycle. After fitting this cell, the transmitter boots from 0V rather than waking from sleep, and the receiver may not automatically re-acquire the channel. Power both units off completely, then power the receiver on first, followed by the transmitter, and run the sync procedure as described in the HDE 2020-II manual. If the receiver still shows no link, confirm transmitter voltage is above 3.7V before attempting re-pair.
