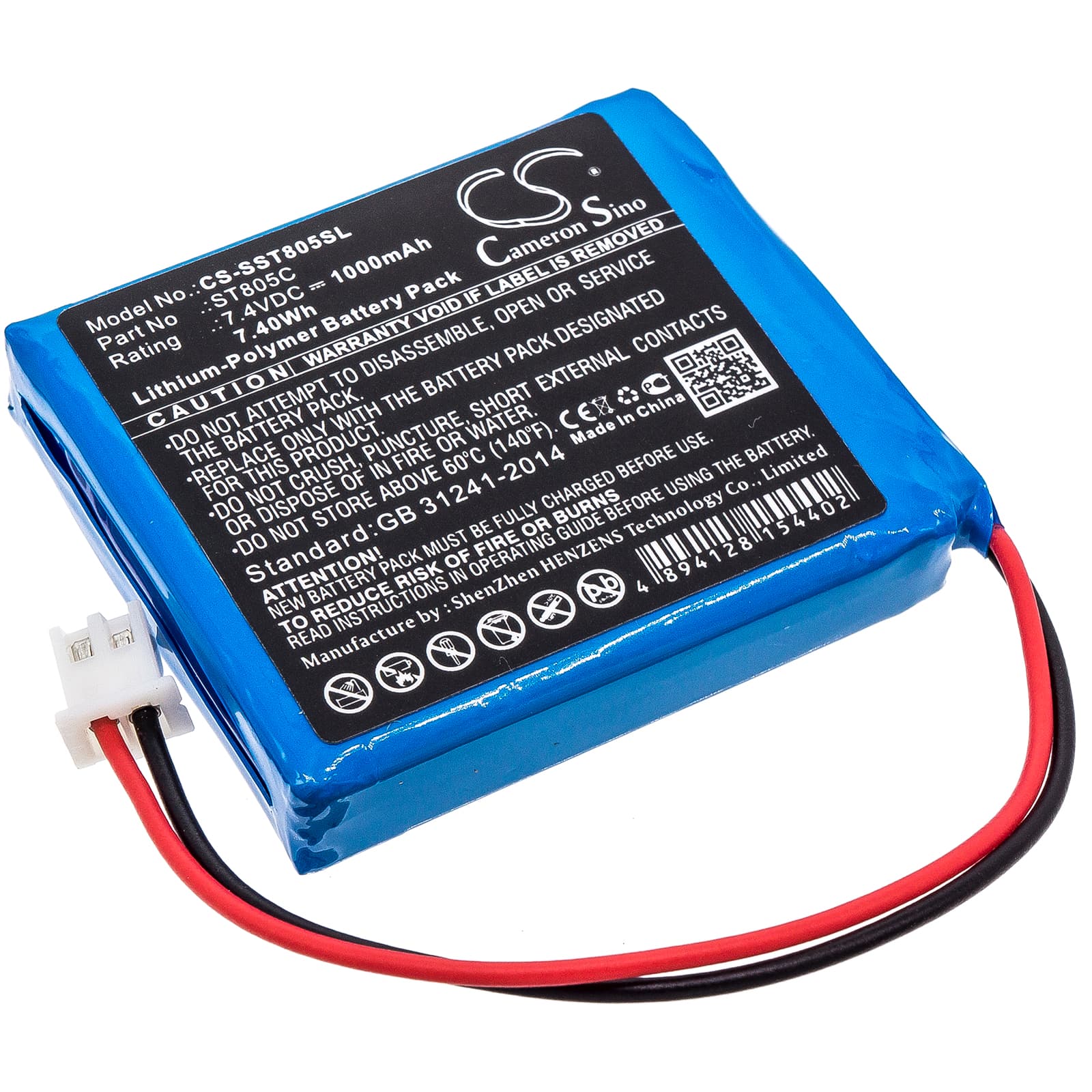

Senter ST805C — 7.4V Li-Polymer Replacement Battery
This 7.4V, 1000mAh Li-Polymer battery replaces the depleted or degraded pack in the Senter ST805C field survey and test instrument. It matches the original voltage rail and connector configuration for the ST805C. Capacity is 1000mAh (7.4Wh), identical to the factory specification.
- ST805C platform fit: The ST805C uses a slim Li-Polymer cell at 7.4V nominal to power its measurement processor, probe interface, and display simultaneously. Substituting a mismatched voltage or cell format causes BMS rejection at handshake — this pack matches all three parameters.
- Bench tested on actual hardware: We cycled this pack through probe initialisation sequences on the ST805C, monitoring BMS response during the current spike at sensor power-up. The BMS held without tripping, and the instrument completed full measurement cycles without mid-session cutoff.
- First-use calibration cycle: After installing this pack, run a full calibration cycle through the ST805C instrument menu before field deployment. The instrument maps battery state during calibration — skipping this step causes premature low-battery warnings on the first measurement session even when the pack is fully charged.
BMS lockout after the ST805C sat unused in a carry case for months
Li-Polymer cells self-discharge slowly during storage. If the ST805C sat unused long enough, the cell voltage drops below the BMS recovery threshold — typically around 2.5V per cell on a 7.4V (2S) pack. At that point, the BMS enters a protective lockout state and the instrument will not power on even when placed on charge. The charger must detect a minimum cell voltage before it begins a charge cycle, so a deeply discharged pack appears dead. To recover, apply a compatible charger for 15–30 minutes; if the pack remains unresponsive below 3.0V total, it has passed the recovery window and requires replacement.
ST805C shuts down during USB data transfer to PC
USB data transfer to a PC activates the ST805C's communication controller simultaneously with the display and any active probe load. The combined current draw at that moment can push the instantaneous load past the BMS overcurrent threshold, triggering a protective shutdown. This is more likely on an aged cell where internal resistance has increased — voltage sags sharply under the combined draw even if the battery indicator showed sufficient charge. Replace the pack and ensure firmware is current, as some ST805C firmware versions include a reduced USB transfer rate option that lowers the current spike.
