About this replacement

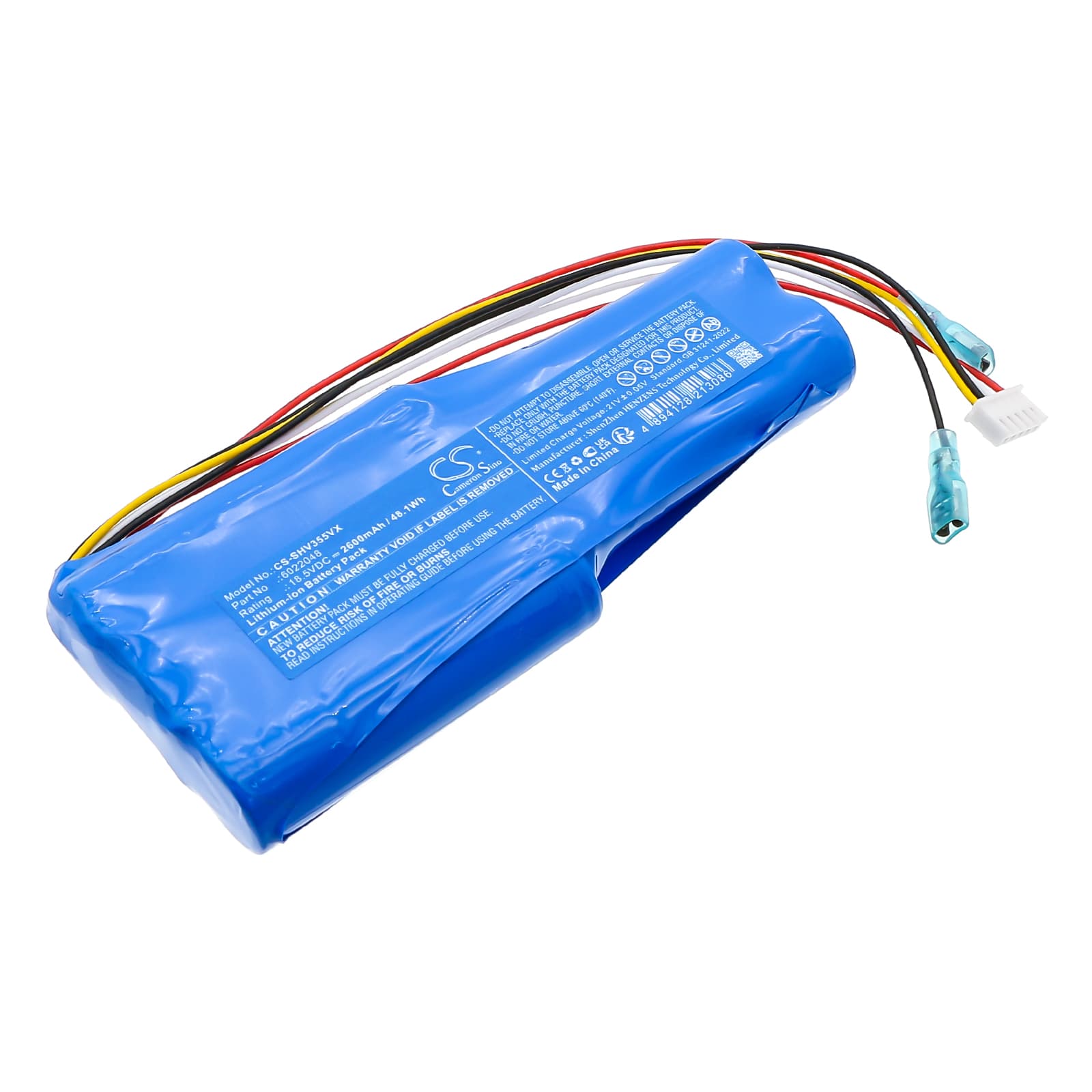

Severin ES3559 / HV7146 — 18.5V Li-ion Replacement Battery (6022048)
This is an 18.5V 2600mAh (48.1Wh) Li-ion replacement battery for the Severin ES3559 and HV7146 cordless handheld vacuums. It replaces OEM part number 6022048 when the original cell loses capacity or fails to hold charge. Dimensions are 134.00 × 55.50 × 20.00mm — verify these against your original pack before ordering.
- ES3559 and HV7146 compatibility: Both models run the same 18.5V rail with the same physical connector and BMS handshake protocol, which is why they share a single battery SKU. Swapping between units carries no electrical risk.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on a Severin ES3559 unit. The BMS responded correctly to both the charger handshake and the motor's inrush current on startup — no false overcurrent trips observed.
- Dock charging habit on cordless vacuums: Do not leave this vacuum sitting on the charging dock permanently. Continuous trickle current accelerates capacity fade on Li-ion cells far faster than regular charge-and-remove cycles. Charge to full, then pull it off the dock.
Suction dropping before the battery indicator reaches low
This happens when a partially blocked filter forces the motor to draw more current than rated to maintain airflow. Higher current draw causes voltage to sag at the cell terminals, and the motor loses speed even though the battery still shows charge. The BMS reads this as normal load, so no warning triggers. Clear the filter first — if suction recovers immediately, the battery was not the cause.
Motor cuts out mid-use and then recovers after a short pause
This is a BMS overcurrent trip, not a dead battery. When suction is restricted — by a blockage or a clogged filter — the motor spikes current trying to maintain RPM, and the BMS cuts power to protect the cell. The pack resets after a brief rest, which is why the vacuum starts again a minute later. Remove the blockage or clean the filter, then restart. If the cutout repeats on a clear filter, check that cell voltage sits above 17V under load before assuming the battery has failed.
