About this replacement

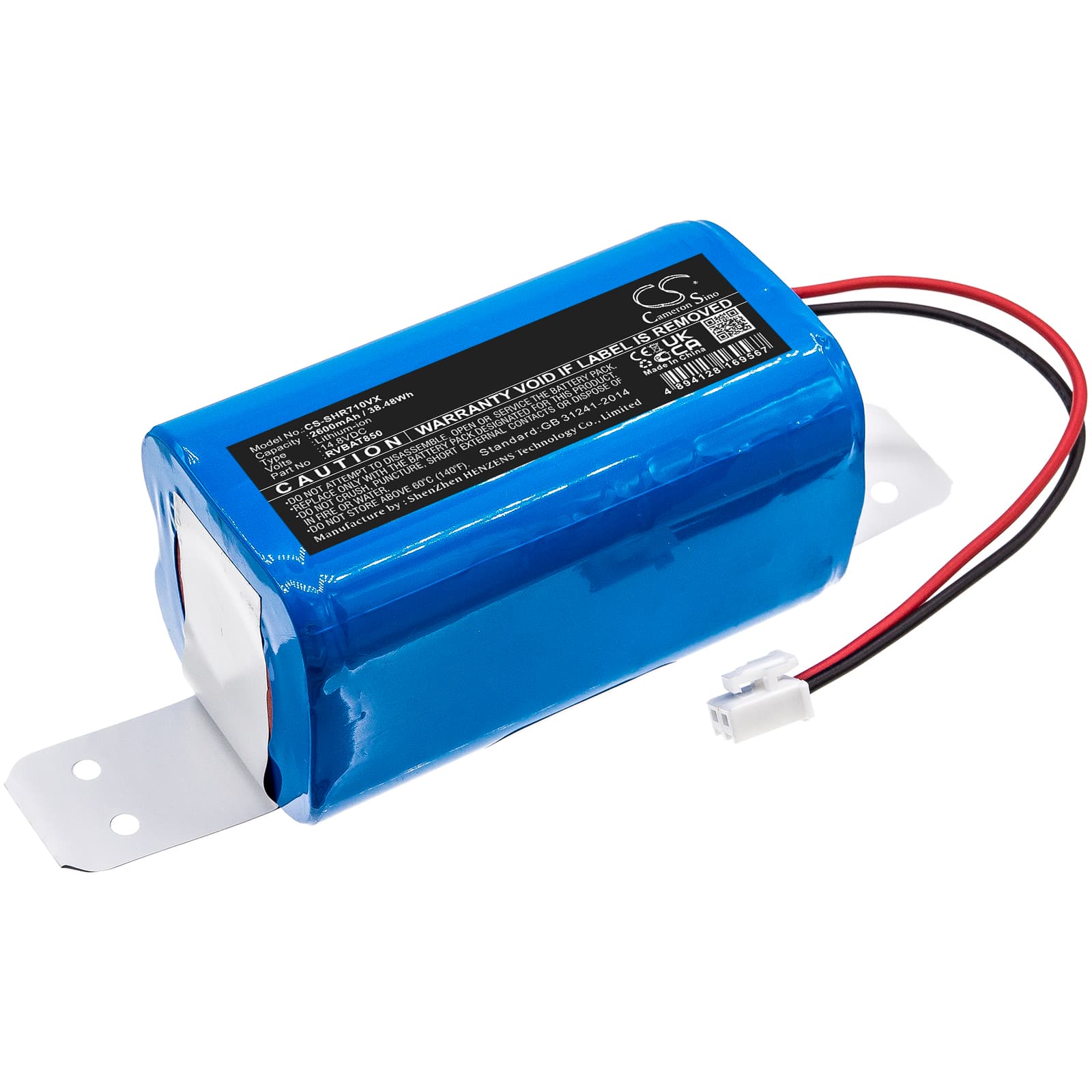

Shark ION Robot Vacuum R71/R75/R76 — 14.8V Li-ion Replacement Battery (RVBAT850)
This is a 14.8V, 2600mAh Li-ion battery pack for the Shark ION Robot Vacuum R71, R72, R75, and R76 series, replacing OEM part numbers RVBAT850, RVBAT850A, RVBAT85003, RVBAT85002, and XBATRV2500. It slots into the underside battery bay and connects to the robot's BMS via the same multi-pin connector as the original. When the factory cell degrades and the robot stops mid-clean or won't hold a charge, this is the direct cell swap.
- R71 through R76 platform fit: These four ION Robot models share the same 14.8V battery bay, connector pinout, and BMS communication protocol. Shark carried the same internal layout across these SKUs, so one cell pack covers all of them without wiring or adapter changes.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the R75 platform. The BMS handshook cleanly with the robot's charge circuit, accepted full current from the dock charger, and the cell protection board held cutoff behaviour within spec under simulated motor-load draw.
- Dock charging practice for ION Robot units: Do not leave the R71 on the dock permanently between scheduled cleans. The Shark ION Robot's charging circuit does not switch to a true maintenance mode — cells sitting on continuous trickle charge lose capacity faster than cells charged to full and then removed from the dock.
Suction dropping before the battery indicator reaches low on the R71
The R71's brush roll motor pulls significantly more current when the filter is partially blocked or the side brush is tangled. Under that extra load, a degraded cell pack can't sustain 14.8V rail voltage, and suction output drops well before the battery LED signals low. This isn't the indicator lying — it's the voltage sagging under draw while resting voltage stays falsely high. Clean the foam and HEPA filters and clear the brush roll, then retest; if suction recovers, the motor was drawing above rated current, not the battery failing.
Robot cuts out mid-clean and restarts after a short pause
This is a BMS overcurrent trip, not a power button fault. When the R71 hits a thick carpet edge or a blocked suction path, the motor ramps up to maintain airflow and briefly spikes above the cell pack's continuous discharge ceiling. The protection board cuts the circuit, the robot pauses, the BMS resets, and the unit restarts. A new cell pack raises the available current headroom, but if the trips keep happening with a fresh battery, the root cause is a restriction in the airflow path — check the dust cup, filter stack, and brush roll bearing before assuming the battery is at fault.
