About this replacement

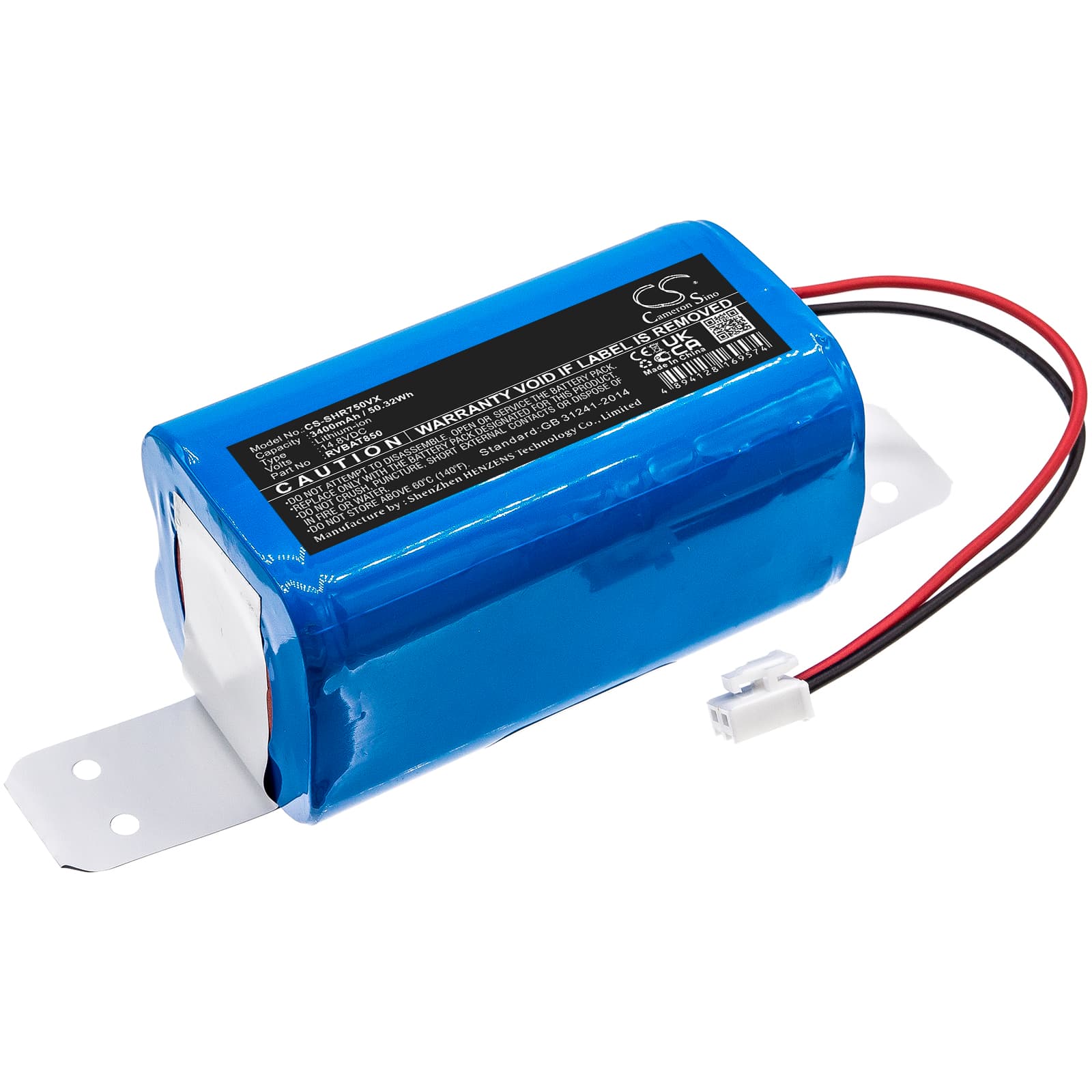

Shark ION Robot Vacuum R71 / R75 Series — 14.8V Li-ion Replacement Battery (RVBAT850)
This 14.8V, 3400mAh lithium-ion battery replaces the RVBAT850, RVBAT850A, RVBAT85003, RVBAT85002, and XBATRV2500 cells. It fits the Shark ION Robot Vacuum R71, R72, R75, R76, and over 200 additional R-series models. Capacity is 3400mAh (50.32Wh), matching the original specification.
- R71–R76 cross-compatibility: These models share the same 14.8V four-cell architecture, battery tray dimensions, and BMS handshake protocol. The connector pinout is identical across the range, so one cell fits the full group without modification.
- Bench tested on actual hardware: We cycled this battery through full charge-discharge runs on an R75 unit. The BMS responded correctly to cell balancing signals, and the vacuum's charge indicator tracked state-of-charge accurately throughout each cycle.
- Dock charging behaviour on the R-series: The R71 and its siblings return to the dock automatically after each run. Leaving the vacuum on the dock permanently allows the charger to trickle-charge the cells continuously. This compresses usable capacity over time. Charge to full, then lift the unit off the dock until the next scheduled clean.
Suction dropping before the battery indicator reaches low
The R-series motor draws higher current the moment airflow is restricted — a partially blocked filter or full dustbin forces the motor to work harder, pulling amperage above its rated draw. The BMS reads this sustained overcurrent as a low-cell-voltage event and steps down power to protect the pack, even when the indicator still shows two or three bars. The vacuum appears to lose suction, but the battery itself is not the root cause. Clean or replace the foam and HEPA filters, empty the dustbin, then run a full charge cycle before concluding the battery has failed.
Replacement battery not recognised by the R71 charger
The Shark dock charger checks for a BMS handshake before delivering charge current — if the replacement cell's BMS does not complete that exchange, the charge indicator stays dark and the battery sits at its resting voltage indefinitely. Seat the battery firmly in the tray and press it until the latch clicks; a partial connection breaks the handshake circuit. If the indicator still does not light, measure the battery terminals with a multimeter. A resting voltage below 10V on a 14.8V Li-ion pack means the cells have discharged past the BMS recovery threshold and the unit will need a specialist recovery charge before normal charging resumes.
