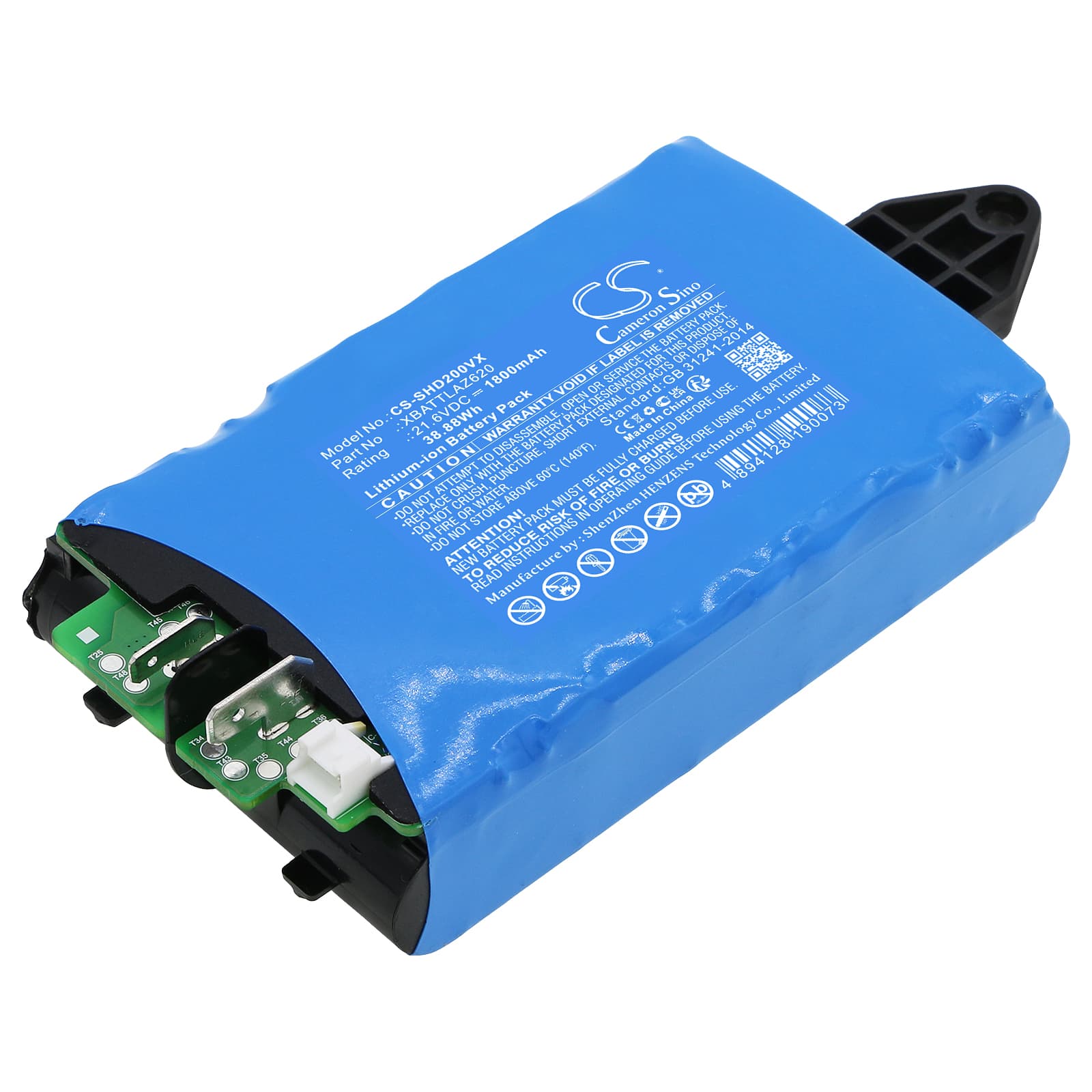

Shark HydroVac Cordless Pro XL — 21.6V Li-ion Replacement Battery (XBATTLAZ620)
This is a 21.6V 1800mAh lithium-ion replacement battery for the Shark HydroVac Cordless Pro XL wet-dry vacuum. It fits the WD200, WD201, and AW201 models, along with seven additional units in the same platform. Voltage and BMS communication match the original XBATTLAZ620 specification.
- HydroVac WD/AW platform compatibility: The WD200, WD201, AW201, and related models share the same 21.6V battery rail, connector format, and BMS handshake protocol. One cell pack services the full range — no firmware variation between these units affects charge acceptance.
- Bench tested on actual hardware: We ran this cell on a WD200 under wet-pickup load cycles. The BMS held voltage within spec through repeated motor starts, and the charge circuit accepted the full 1800mAh without triggering a fault flag.
- Dock charging practice for HydroVac units: Do not leave the vacuum seated on the charging dock continuously. These units develop capacity fade significantly faster when trickle-charged around the clock. Charge to full, then remove from the dock until the next use.
Suction dropping before the battery indicator reaches low
The HydroVac motor draws higher current when airflow is restricted — a partially blocked filter or clogged separator forces the motor to work harder at constant speed. This increases draw beyond the BMS's steady-state threshold, and the cell voltage sags before the indicator registers low. The vacuum feels like it's losing power, but the battery gauge still shows charge remaining. Clean the filter and check the dirt separator before replacing the battery — full airflow brings motor draw back to rated levels and restores consistent suction.
Motor cuts out mid-use, then recovers after a short pause
This is a BMS overcurrent trip, not a battery failure. When suction is sustained against a blockage or a saturated filter, peak current spikes past the BMS cutoff threshold and the cell disconnects to protect itself. After a few seconds the BMS resets and the motor restarts normally. Clear any blockage, check the filter condition, and empty the tank — if the cutouts continue after that, the BMS may be tripping at a lower threshold than spec, which points to a degraded cell needing replacement.
