About this replacement

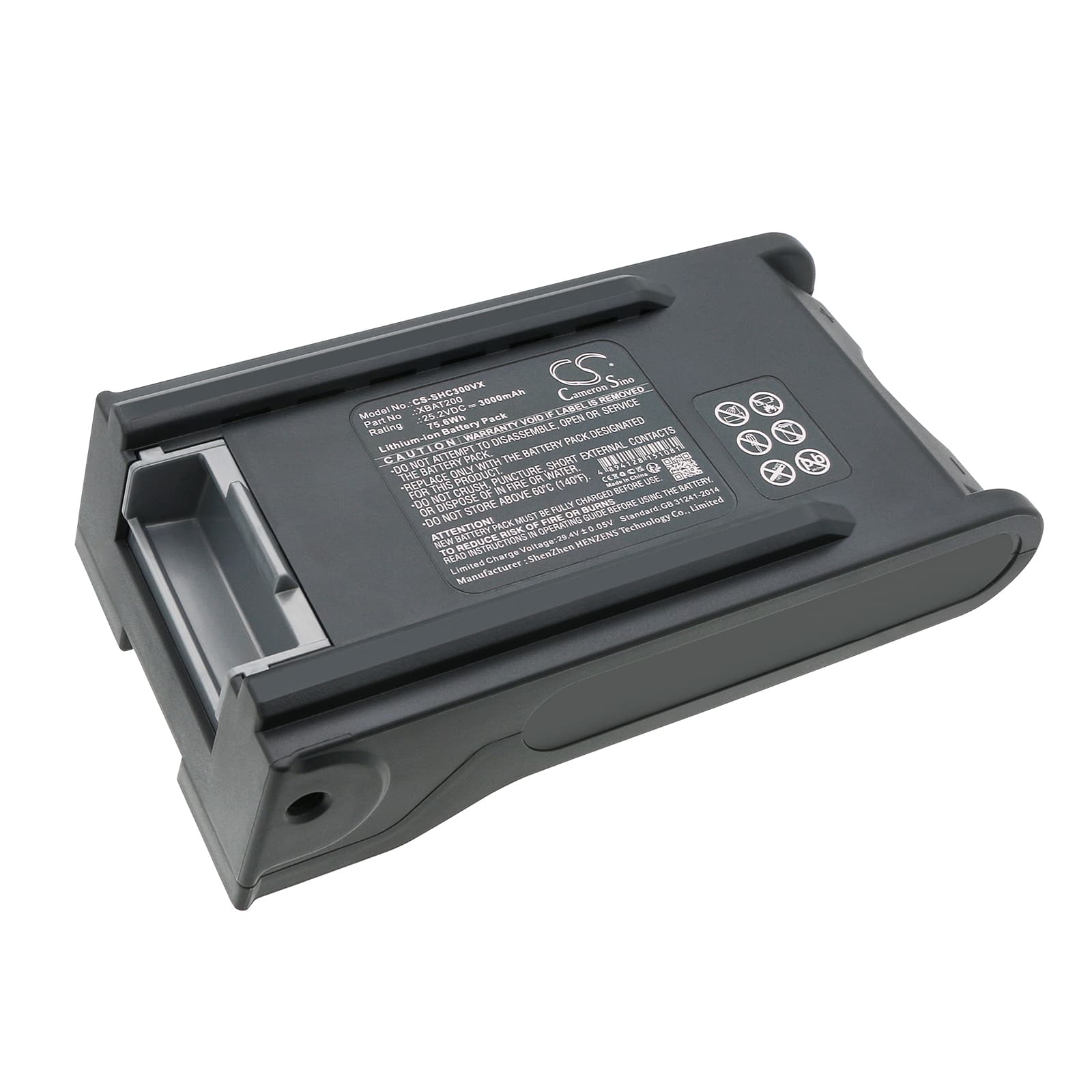

Shark IC205 Series — 25.2V Li-ion Replacement Battery (XBAT200)
This is a 25.2V 3000mAh lithium-ion battery that replaces the original XBAT200 in Shark cordless stick vacuums. It fits the IC205, IC205CCO, IC200C, IC200W, and over 55 additional IC-series models. Swap it in when the original cell no longer holds charge or the vacuum cuts out before cleaning is done.
- IC-series platform fit: These models share the same 25.2V power rail, battery bay dimensions, and BMS handshake protocol — that is why one cell covers the full range. The connector and latch geometry are identical across the IC200 and IC205 variants.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge sequences on an IC205 unit. The BMS negotiated correctly with the charger, and the overcurrent protection tripped as expected under a sustained blocked-airflow condition before releasing cleanly.
- Dock charging habit on IC-series vacuums: Do not leave the vacuum on the charging dock permanently. IC-series vacuums on continuous dock charge develop capacity fade significantly faster than those charged only when depleted. Charge to full, then remove from the dock.
Suction dropping before the battery indicator reaches low
This happens when the motor draws more current than the cell can supply cleanly at partial state of charge. Voltage sags under load, and the motor loses torque before the indicator logic registers a low-battery condition. A partially clogged filter is almost always the trigger — restricted airflow forces the motor to work harder, pulling current above its rated draw. Clean or replace the filter first, then retest at the same carpet pile setting.
Motor cutting out mid-clean and then recovering after a few seconds
This is a BMS overcurrent trip, not a dead battery. When airflow is restricted — blocked filter, full dust cup, or a partial blockage in the floor head — the motor sustains a high-current draw the BMS treats as a fault condition and cuts power. The BMS resets after a short thermal and current-check cycle, which is why the vacuum restarts. Clear the blockage, empty the dust cup, and check the filter before running again. If trips continue with clean airflow, measure resting pack voltage — it should read at or above 25.2V fully charged.
