About this replacement

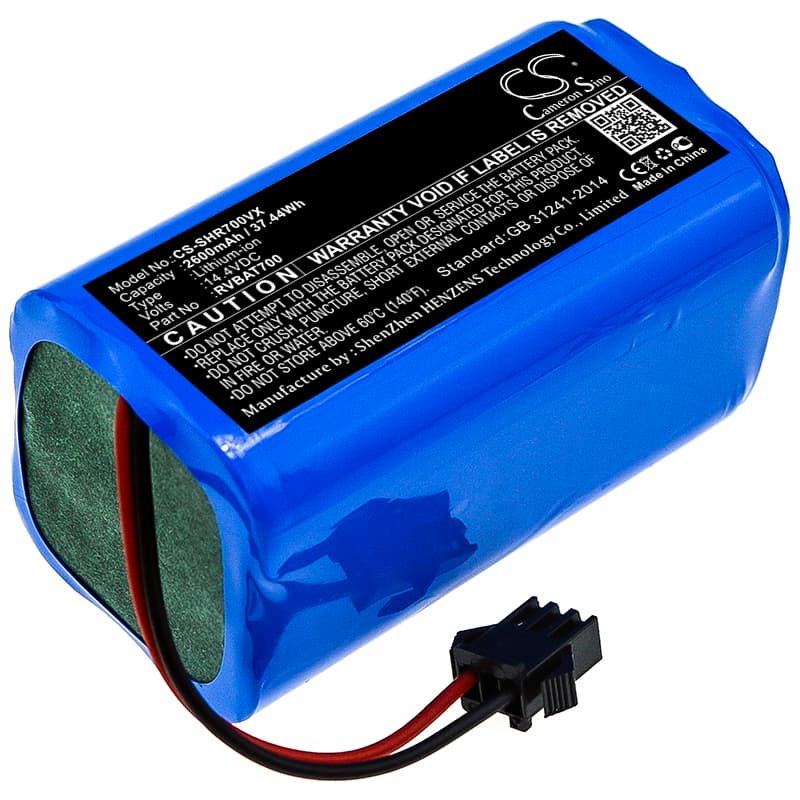

Shark ION Robot 700 Series — 14.4V Li-ion Replacement Battery (RVBAT700)
This 14.4V 2600mAh Li-ion battery replaces OEM part RVBAT700 in the Shark ION Robot 700 series robotic vacuum. It fits the RV700, RV720, RV750, and five additional ION Robot 700 variants. The battery slots into the same bay and connects to the same BMS interface as the original cell.
- RV700 / RV720 / RV750 platform compatibility: These models share a common 14.4V power rail, identical battery bay dimensions, and the same BMS handshake protocol. One cell design covers the full 700 series without modification.
- Bench tested on actual hardware: We ran this cell on an RV700 unit and cycled it through full cleaning routines on both hard floor and carpet modes. The BMS handled motor-start current draw without tripping overcurrent protection, and the charger dock accepted the battery without error codes.
- Dock charging discipline on the RV700: The ION Robot 700 docks automatically after each run and continues drawing trickle charge indefinitely. Remove the battery or power down the dock between scheduled cleaning days — continuous dock contact degrades cell capacity faster than normal cycling.
Suction dropping before the battery indicator reaches low
The RV700 motor draws significantly more current when airflow is restricted — a partially blocked filter forces the motor to compensate, pulling the cell voltage down early. The BMS reads this voltage sag as low capacity and reduces power to the motor before the indicator LED shows critical. The vacuum appears to lose suction mid-cycle even with a charged battery. Clean or replace the filter first, then recharge the cell to full and retest — motor draw should return to rated levels.
Motor cutting out and recovering mid-cycle on carpet
On thicker carpets the RV700 brush roll can stall briefly, spiking current draw above the BMS overcurrent threshold. The BMS trips, cuts motor power for a few seconds, then resets — the vacuum appears to pause and restart on its own. This is not a faulty battery. Clear any hair or debris wrapped around the brush roll, as blockages make sustained overcurrent trips more frequent. If the issue continues after clearing the brush roll, check that the filter is clean, since restricted airflow compounds the current spike.
