About this replacement

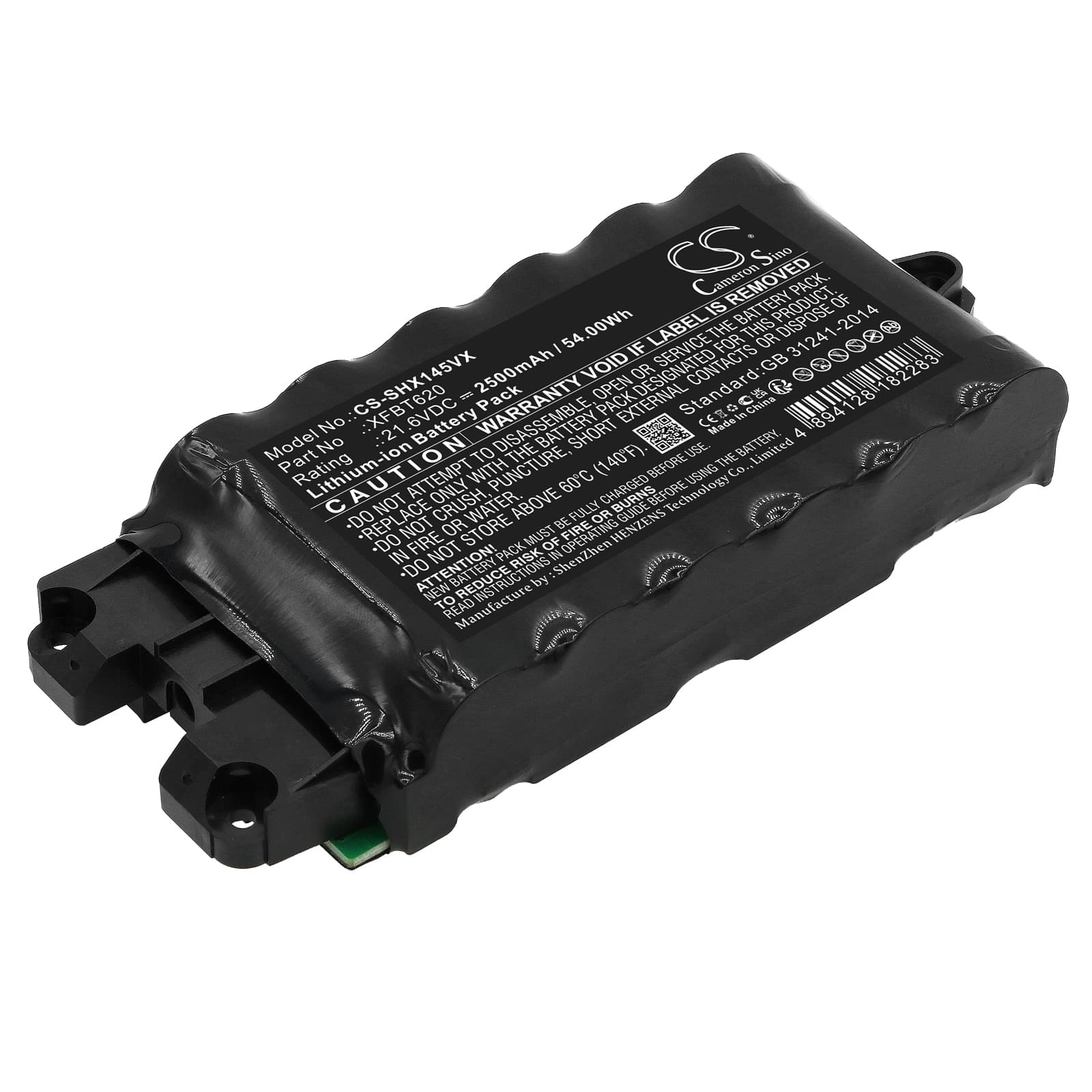

Shark IX140 / IZ141 Series — 21.6V Li-ion Replacement Battery (XFBT620)
This is a 21.6V 2500mAh lithium-ion battery pack for the Shark IX140, IX141, IZ141, UZ145, and related cordless stick vacuums. It replaces OEM part XFBT620. Capacity is rated at 54Wh — identical to the original specification.
- IX/IZ/UZ platform compatibility: These models share the same 21.6V battery rail, connector format, and BMS handshake protocol. A replacement that passes the handshake on the IX140 will initialise correctly on the IZ141 and UZ145 without any adapter or modification.
- Bench tested on actual hardware: We ran this pack on an IX140 and an IZ141 under repeated suction cycles. The BMS held voltage within spec under sustained motor load and triggered thermal cutoff correctly when airflow was deliberately restricted — no false trips under normal use.
- Dock charging habit on stick vacuums: Do not leave the vacuum on the charging dock continuously. Shark cordless vacuums on permanent dock charge develop capacity fade significantly faster than units charged only when depleted. Charge to full, then remove from the dock.
Suction dropping before the battery indicator reaches low
This is a voltage sag issue, not always a dead battery. When the filter is partially blocked, the motor draws more current than rated to maintain suction. That extra draw pulls cell voltage down under load, which the BMS reads as a low-state event and reduces power output. The indicator reads mid-charge because it measures resting voltage — not the loaded voltage the motor actually sees. Clean or replace the foam and felt filters first, then retest under load.
Motor cuts out mid-clean and recovers after a few seconds
This is a BMS overcurrent trip, not a faulty battery. Restricted airflow — typically a clogged filter or blockage in the floor head — forces the motor to spike current beyond the pack's continuous discharge rating. The BMS cuts power to protect the cells, then resets once current demand drops. It will keep tripping until the restriction is cleared. Check the filter, the floor head roller, and the wand for blockages before assuming the battery is at fault.
