About this replacement

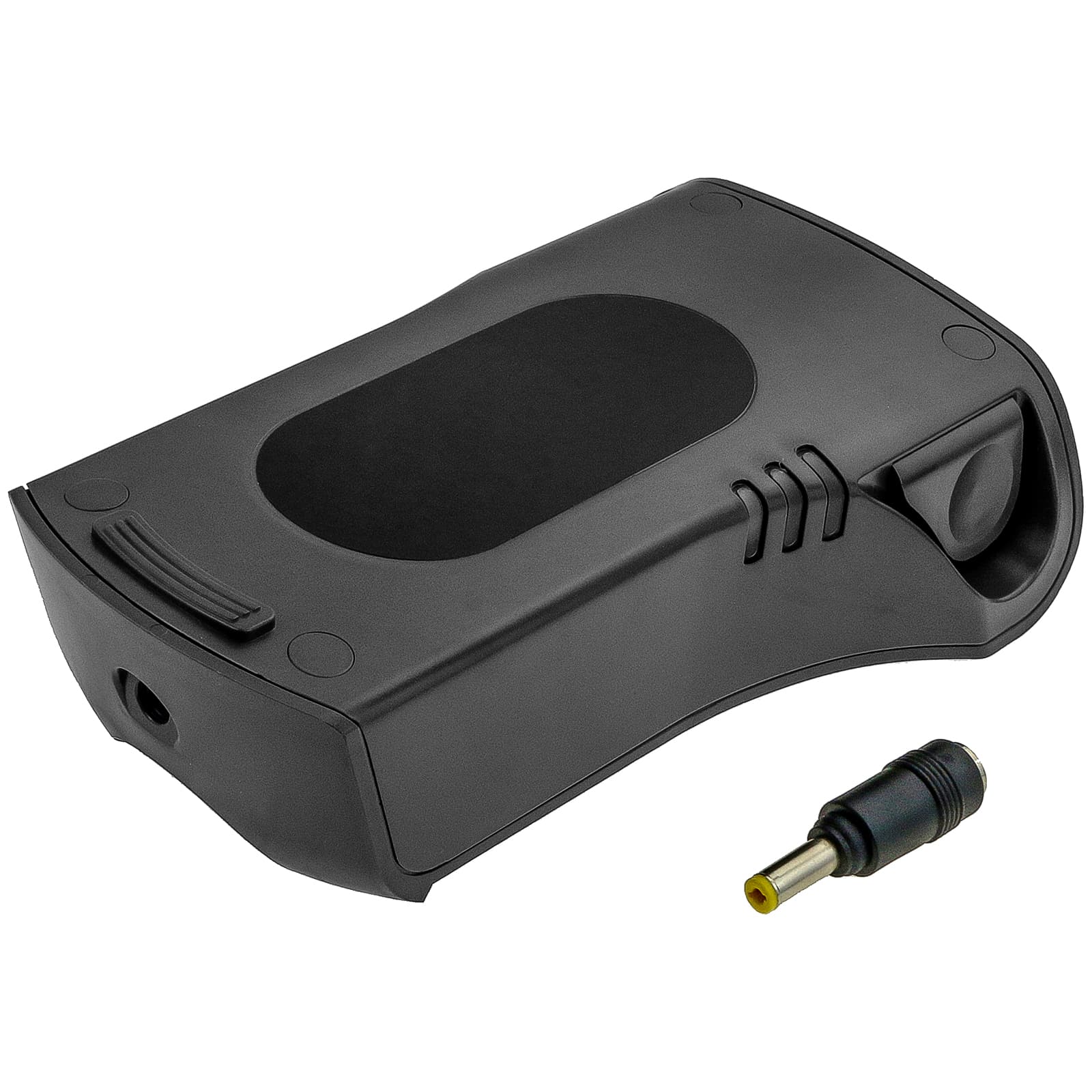

Shark X1 / X2 / X3 — 21.6V Li-ion Replacement Battery (XSBT600)
This is a 21.6V 2000mAh (43.2Wh) lithium-ion battery for the Shark X1, X2, and X3 cordless vacuum cleaners. It replaces OEM part number XSBT600. The battery slots into the handle of the vacuum and powers the motor directly — no tools needed to swap it.
- X1, X2, and X3 compatibility: These three models share the same 21.6V battery rail, connector pinout, and BMS handshake protocol. The same physical latch and contact plate is used across the series, so the XSBT600 form factor fits all three without modification.
- Bench tested on actual hardware: We ran this battery through charge and discharge cycles on the X1 platform. The BMS responded correctly to the charger handshake, and overcurrent protection triggered as expected when we simulated a blocked-filter motor load above rated draw.
- Dock charging habit on the X1: Do not leave the vacuum sitting on the charging dock indefinitely. The X1 dock does not cut trickle current once full. Leaving it docked continuously accelerates cell degradation. Charge to full, then remove it from the dock until the next use.
Suction dropping before the battery indicator reaches low
On carpet or thick rugs, the X1 motor draws significantly more current than it does on hard floors. If the filter is even partially blocked, that draw spikes further. Voltage at the motor rail sags under this load well before the battery's state-of-charge indicator registers as low. The result is noticeably weaker suction while the LED still shows two or three bars. Clean or replace the filter first — if suction recovers, the battery was not the fault. If suction remains weak after a clean filter, measure resting cell voltage. A healthy cell sits above 21V at rest.
Motor cuts out mid-use then recovers after a few seconds
This is a BMS overcurrent trip, not a dead battery. It happens when sustained restricted airflow forces the motor to pull more current than the BMS threshold allows. The BMS cuts power, the motor stops, and after a brief cooldown the circuit resets and the vacuum runs again. Check the filter and the brush roll for blockages before replacing the battery. If the vacuum runs normally with a clean filter and clear brush roll, the original battery's BMS may have a degraded trip threshold — swap to the fresh cell and retest.
