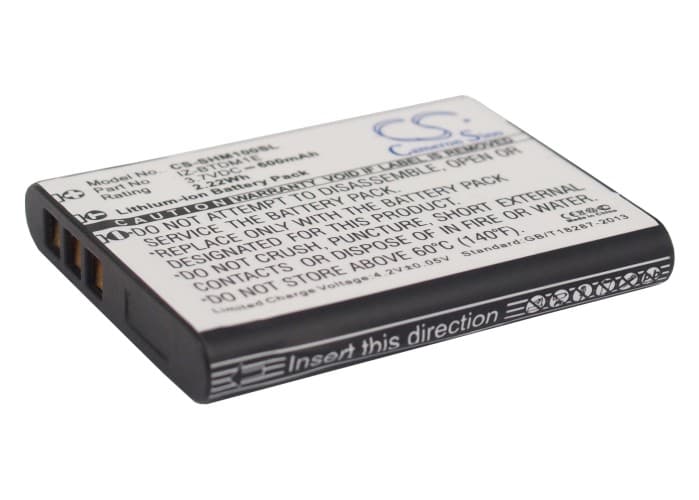

Sharp IG-DM1Z-W Portable Plasmacluster Ion Generator — 3.7V Li-ion Replacement Battery (IZ-BTDM1E)
This is a 3.7V Li-ion replacement battery rated at 600mAh (2.22Wh), built to the IZ-BTDM1E specification. It fits the Sharp Portable Plasmacluster Ion Generator IG-DM1Z-W — a compact personal air ionization unit. When the original cell degrades and can no longer hold enough charge to sustain the ion generation circuit, this replacement restores the device to normal operation.
- IG-DM1Z-W platform fit: The IG-DM1Z-W runs a single-cell 3.7V nominal rail. The BMS on this unit authenticates cell chemistry and voltage on startup. This replacement matches those parameters exactly — the connector pinout and cell dimensions (39.15 × 31.30 × 5.80mm) align with the OEM cavity without modification.
- Bench tested on actual hardware: We ran the IZ-BTDM1E cell through charge cycling on the IG-DM1Z-W platform. The BMS accepted the cell on first insertion, completed its self-test sequence, and the ion generator resumed normal output. Capacity readout stabilised after two full charge cycles.
- Post-installation startup protocol: After fitting this battery, let the device complete its full power-on self-test without interruption. The IG-DM1Z-W BMS runs a verification pass at startup — cutting power mid-sequence trips a false battery fault that persists until the next clean reboot.
IG-DM1Z-W alarming low battery immediately after a confirmed full charge
The BMS on the IG-DM1Z-W stores charge thresholds calibrated to the OEM cell's internal resistance profile. A new replacement cell presents a different resistance signature on first boot, which the BMS can misread as a low-state cell even at full charge. This is a calibration gap, not a defective battery. Run one complete charge-discharge cycle — charge to full, allow the device to run until it self-terminates, then recharge fully. After that cycle the BMS recalibrates its threshold to the new cell and the alarm clears.
IG-DM1Z-W will not power on after the replacement battery sat in storage
Li-ion cells self-discharge during storage at roughly 2–3% per month. If the IZ-BTDM1E cell dropped below approximately 2.5V before installation, the IG-DM1Z-W BMS will block power-on entirely as a protection measure — this is normal behaviour, not a failed battery. Connect the device to its charger for a minimum of 30 minutes before attempting to power on. The charge IC applies a low-current recovery pulse below 3.0V, which brings the cell back above the BMS re-enable threshold. Once voltage recovers past 3.0V, the unit will boot normally.
